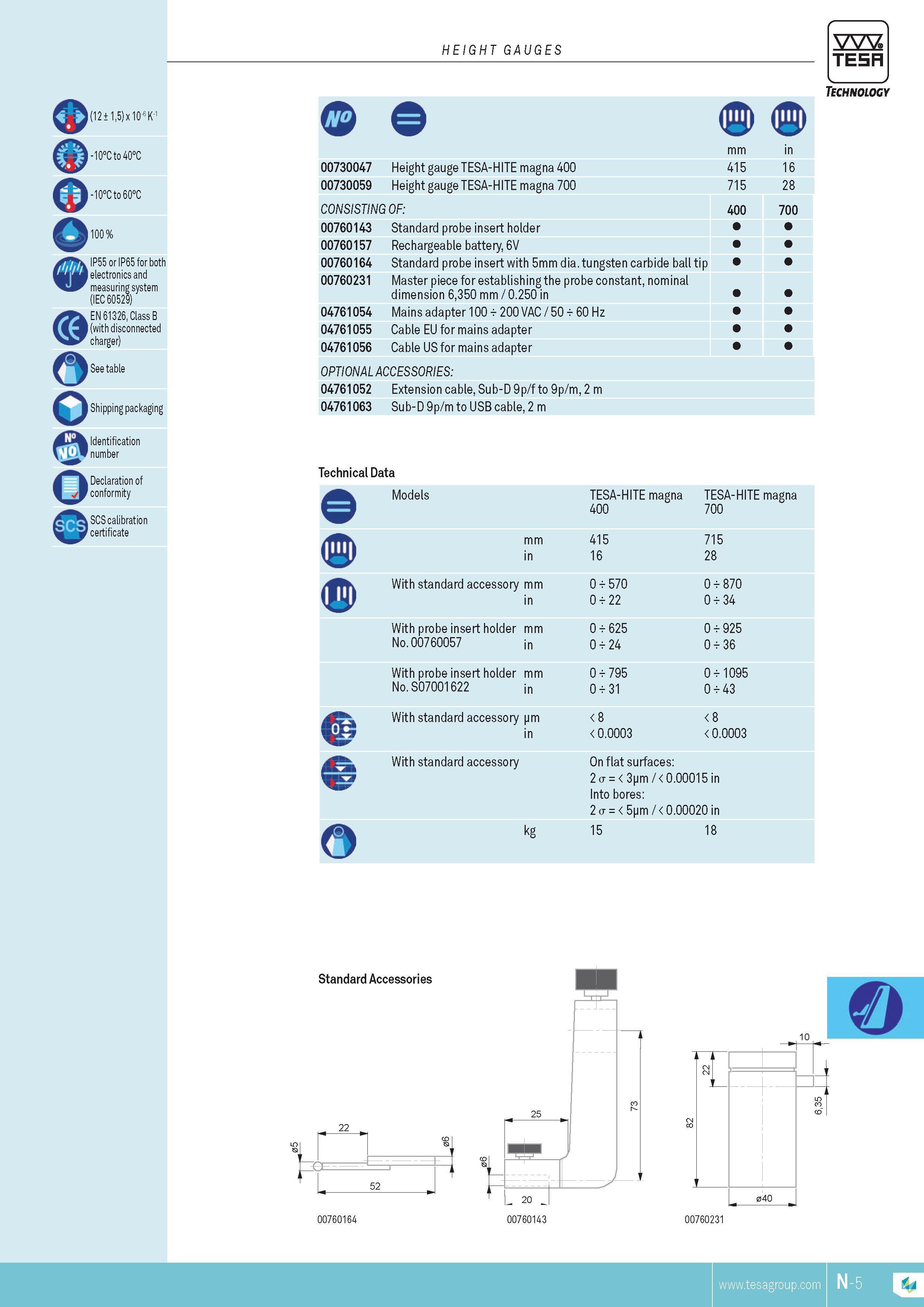

HEIGHT GAUGES TESA (12 15) x 10-6 K-1 -10C to 40C -10C to 60C 100 % IP55 or IP65 for both electronics and measuring system (IEC 60529) EN 61326 Class B (with disconnected charger) See table Shipping packaging Identification number o Declaration of conformity SCS calibration certificate Technology 00730047 Height gauge TESA-HITE magna 400 00730059 Height gauge TESA-HITE magna 700 CONSISTING OF 00760143 Standard probe insert holder 00760157 Rechargeable battery 6V 00760164 Standard probe insert with 5mm dia. tungsten carbide ball tip 00760231 Master piece for establishing the probe constant nominal dimension 6350 mm 0.250 in 04761054 Mains adapter 100 200 VAC 50 60 Hz 04761055 Cable EU for mains adapter 04761056 Cable US for mains adapter OPTIONAL ACCESSORIES 04761052 Extension cable Sub-D 9 p f to 9p m 2 m 04761063 Sub-D 9p m to USB cable 2 m mm 415 715 400 in 16 28 700 Technical Data Models mm in With standard accessory mm in With probe insert holder mm No. 00760057 in With probe insert holder mm No. S07001622 in With standard accessory pm in With standard accessory TESA-HITE magna TESA-HITE magna 400 700 415 16 0 570 0 22 0 625 0 24 0 795 0 31 8 0.0003 715 28 0 870 0 34 0 925 0 36 0 1095 0 43 8 0.0003 kg On flat surfaces 2 a 3pm 0.00015 in Into bores 2 a 5pm 0.00020 in 15 18 N
