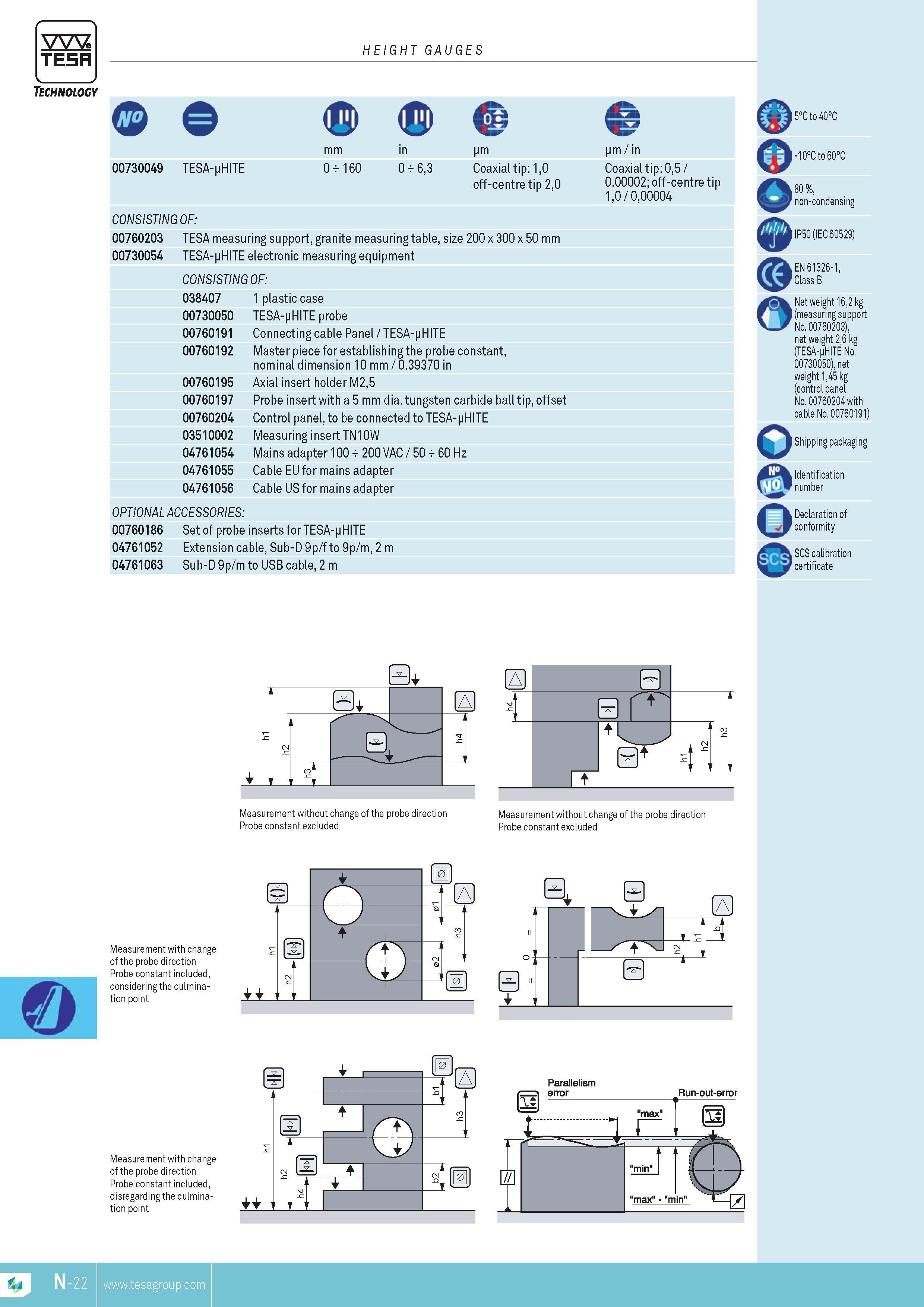

TESA HEIGHT GAuGES Technology Gfr O mm in pm pm in 00730049 TESA-pHITE 0 160 0 63 Coaxial tip 10 Coaxial tip 05 off-centre tip 20 0.00002; off-centre tip 10 000004 CONSISTING OF 00760203 TESA measuring support granite measuring table size 200 x 300 x 50 mm 00730054 TESA-pHITE electronic measuring equipment CONSISTING OF 038407 1 plastic case 00730050 TESA-pHITE probe 00760191 Connecting cable Panel TESA-pHITE 00760192 Master piece for establishing the probe constant nominal dimension 10 mm 0.39370 in 00760195 Axial insert holder M25 00760197 Probe insert with a 5 mm dia. tungsten carbide ball tip offset 00760204 Control panel to be connected to TESA-pHITE 03510002 Measuring insert TN10W 04761054 Mains adapter 100 200 VAC 50 60 Hz 04761055 Cable EU for mains adapter 04761056 Cable US for mains adapter optional ACCESSORIES 00760186 Set of probe inserts for TESA-pHITE 04761052 Extension cable Sub-D 9p f to 9p m 2 m 04761063 Sub-D 9p m to USB cable 2 m 5C to 40C 10Cto60C % 0 non-condensing IP50 (IEC 60529) EN 61326-1 Class B Net weight 162 kg (measuring support No. 00760203) net weight 26 kg (TESA-pHITE No. 00730050) net weight 145 kg (control panel No. 00760204 with cable No. 00760191) Shipping packaging Identification number Declaration of conformity SCS calibration certificate Si C CN .C B Jl .c V St MEASUREMENT without change of the probe direction Probe constant excluded 0 R Bf t it 1 1 0 CO T-. nr MEASUREMENT without change of the probe direction Probe constant excluded MEASUREMENT with change of the probe direction Probe constant included considering the culmination point MEASUREMENT with change of the probe direction Probe constant included disregarding the culmination point 0 0 i 'V- 2 V ZL Parallelism N-22 TESA
