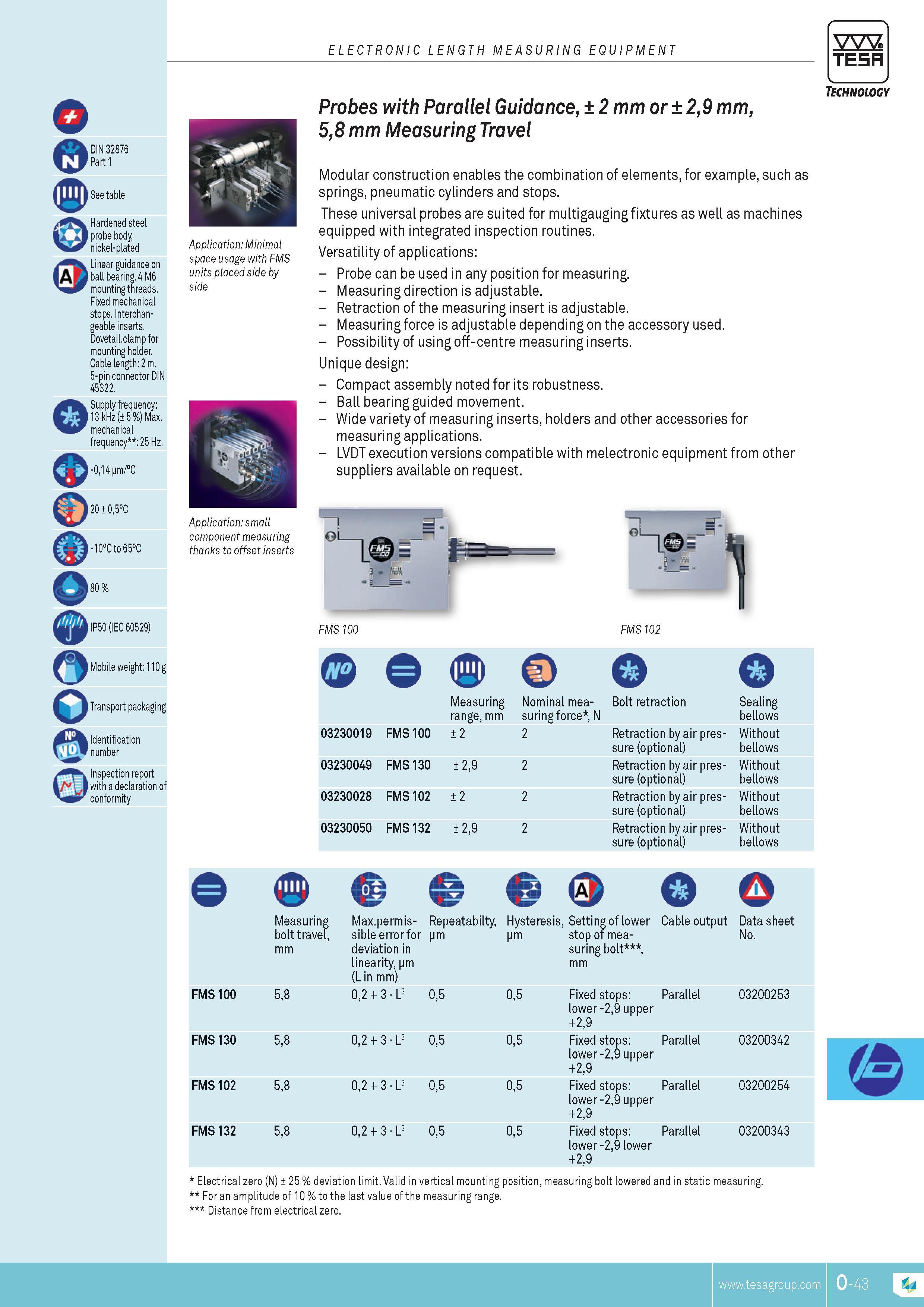

ELECTRONIC LENGTH MEASURING EQUIPMENT TESA Q IP o m DIN 32876 Part 1 See table Hardened steel probe body nickel-plated Linear guidance on ball bearing. 4 M6 mounting threads. Fixed mechanical stops. Interchangeable inserts. Dovetail.clamp for mounting holder. Cable length 2 m. 5-pin connector DIN 45322. Supply frequency 13 kHz ( 5 %) Max. mechanical frequency 25 Hz. -014 pm C 20 05C -10C to 65C 80 % IP50 (IEC 60529) Mobile weight 110 g Transport packaging Identification number O Application Minimal space usage with FMS units placed side by side Application small component measuring thanks to offset inserts Inspection report with a declaration of conformity Probes with Parallel Guidance 2 mm or 29 mm 58 mm Measuring Travel Modular construction enables the combination of elements for example such as springs pneumatic cylinders and stops. These universal probes are suited for multigauging fixtures as well as machines equipped with integrated inspection routines. Versatility of applications Probe can be used in any position for measuring. Measuring direction is adjustable. Retraction of the measuring insert is adjustable. Measuring force is adjustable depending on the accessory used. Possibility of using off-centre measuring inserts. Unique design Compact assembly noted for its robustness. Ball bearing guided movement. Wide variety of measuring inserts holders and other accessories for measuring applications. LVDT execution versions compatible with melectronic equipment from other suppliers available on request. Technology FMS 100 FMS 102 Measuring Nominal mea- Bolt retraction Sealing range mm suring force N bellows 03230019 FMS 100 03230049 FMS 130 03230028 FMS 102 03230050 FMS 132 2 29 2 29 Retraction by air pres- Without sure (optional) bellows Retraction by air pres- Without sure (optional) bellows Retraction by air pres- Without sure (optional) bellows Retraction by air pres- Without sure (optional) bellows 2 2 2 2 FMS 100 FMS 130 FMS 102 FMS 132 Measuring Max.permis- Repeatabilty Hysteresis Setting of lower Cable output Data sheet bolt travel sible error for pm mm deviation in linearity pm (L in mm) 02 + 3 L3 05 02 + 3 L3 05 02 + 3 L3 05 02 + 3 L3 05 pm stop of mea- No. suring bolt mm 05 Fixed stops Parallel 03200253 lower -29 upper +29 05 Fixed stops Parallel 03200342 lower -29 upper +29 05 Fixed stops Parallel 03200254 lower -29 upper +29 05 Fixed stops Parallel 03200343 lower -29 lower +29 o Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. Distance from electrical zero. O
