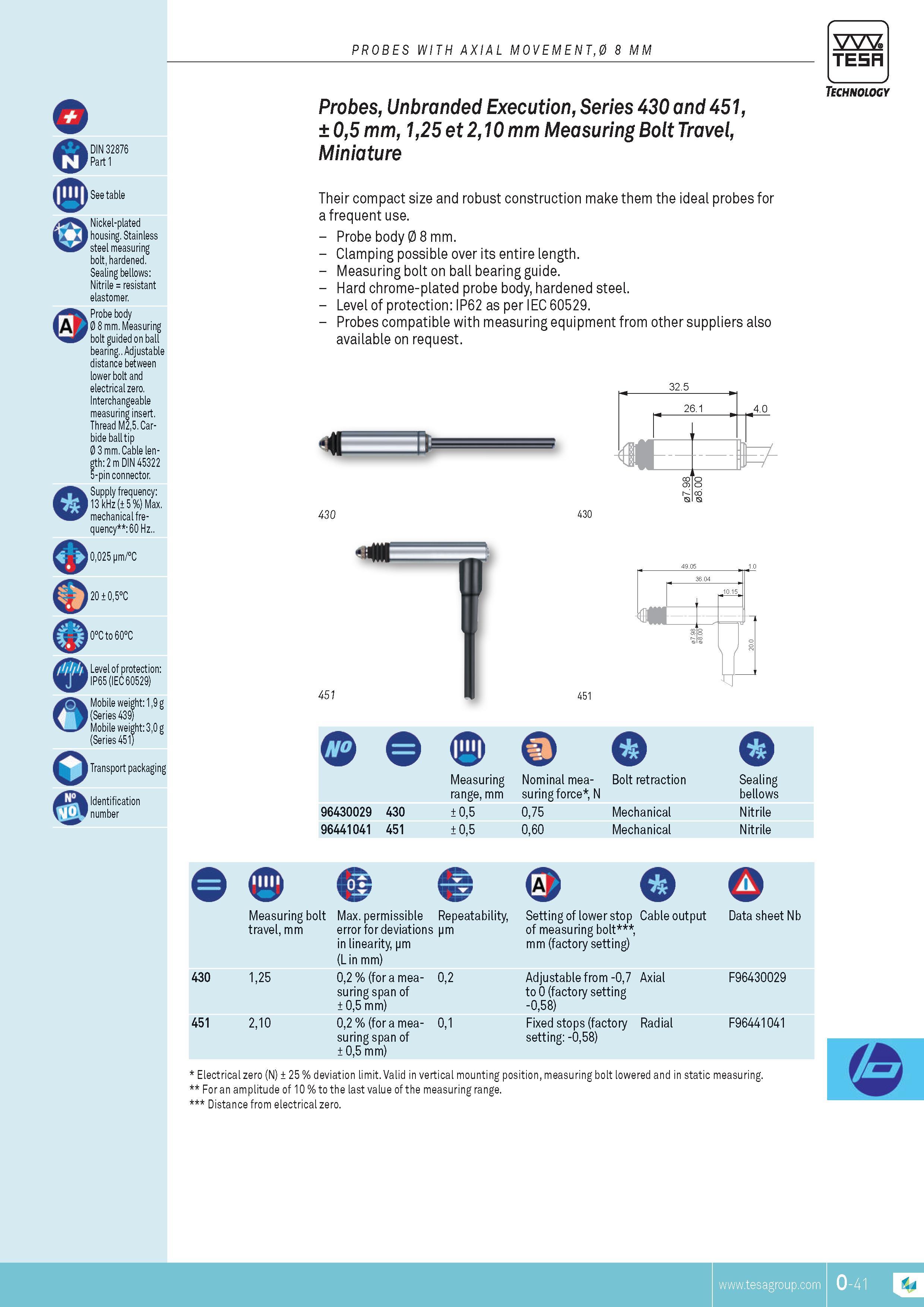

DIN 32876 Part 1 See table Nickel-plated housing. Stainless steel measuring bolt hardened. Sealing bellows Nitrile resistant elastomer. Probe body A 0 8 mm. Measuring bolt guided on ball bearing.. Adjustable distance between lower bolt and electrical zero. Interchangeable measuring insert. Thread m25. Carbide ball tip 0 3 mm. Cable length 2 m DIN 45322 5-pin connector. Supply frequency 13 kHz ( 5 %) Max. mechanical frequency 60 Hz.. 0025 pm C 20 05C 0C to60C % Level of protection IP65 (IEC 60529) Mobile weight 19 g (Series 439) Mobile weight 30 g (Series 451) Transport packaging Identification number PROBES WITH AXIAL MOVEMENT0 8 MM probes unbranded Execution Series 430 and 451 05 mm 125 et 210 mm Measuring Bolt Travel Miniature Their compact size and robust construction make them the ideal probes for a frequent use. Probe body 0 8 mm. Clamping possible over its entire length. Measuring bolt on ball bearing guide. Hard chrome-plated probe body hardened steel. Level of protection Ip62 as per IEC 60529. Probes compatible with measuring equipment from other suppliers also available on request. TESA Technology n 32.5 26.1 4.0 w i 8 O') 08.00' 430 430 451 36.04 10.15 m 451 Measuring Nominal mea- Bolt retraction Sealing range mm suring force N bellows 96430029 430 05 075 Mechanical Nitrile 96441041 451 05 060 Mechanical Nitrile 430 451 Measuring bolt travel mm Max. permissible error for deviations in linearity pm (L in mm) Repeatability pm Setting of lower stop of measuring bolt mm (factory setting) 125 02 % (for a measuring span of 05 mm) 02 Adjustable from -07 to 0 (factory setting -058) 210 02 % (for a measuring span of 05 mm) 01 Fixed stops (factory setting -058) o Radial Data sheet Nb F96430029 F96441041 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. Distance from electrical zero.
