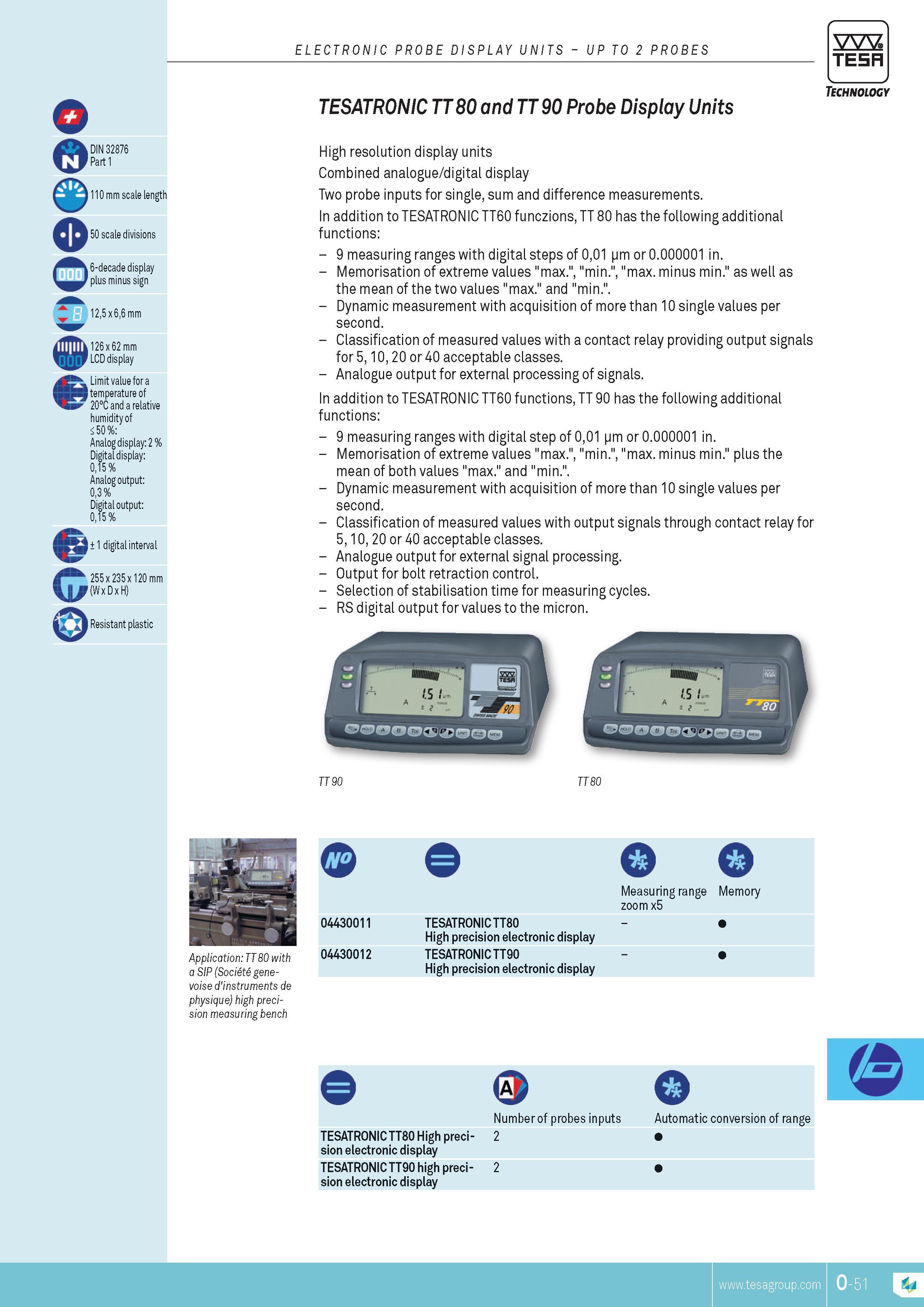

ELECTRONIC PROBE DISPLAY UNITS UP TO 2 PROBES TESA a DIN 32876 Part 1 110 mm scale length 50 scale divisions G 6-decade display plus minus sign 125 x 66 mm 126 x 62 mm LCD display Limit value for a temperature of 20C and a relative humidity of 50 % Analog display 2 % Digital display 015 % Analog output 03 % Digital output 015% 1 digital interval 255 x 235 x 120 mm (W x D x H) Resistant plastic TESATRONIC TT80 and TT 90 Probe Display Units High resolution display units Combined analogue digital display Two probe inputs for single sum and difference MEASUREMENTs. In addition to TESATRONIC TT60 funczions TT 80 has the following additional functions 9 measuring ranges with digital steps of 001 jm or 0.000001 in. Memorisation of extreme values "max." "min." "max. minus min." as well as the mean of the two values "max." and "min.". Dynamic MEASUREMENT with acquisition of more than 10 single values per second. Classification of measured values with a contact relay providing output signals for 5 10 20 or 40 acceptable classes. Analogue output for external processing of signals. In addition to TESATRONIC TT60 functions TT 90 has the following additional functions 9 measuring ranges with digital step of 001 jm or 0.000001 in. Memorisation of extreme values "max." "min." "max. minus min." plus the mean of both values "max." and "min.". Dynamic MEASUREMENT with acquisition of more than 10 single values per second. Classification of measured values with output signals through contact relay for 5 10 20 or 40 acceptable classes. Analogue output for external signal processing. Output for bolt retraction control. Selection of stabilisation time for measuring cycles. RS digital output for values to the micron. Technology TT 90 TT 80 Application TT80 with a SIP (Societe gene-voise d'instruments de physique) high precision measuring bench Q) e Q Measuring range zoom x5 Memory 04430011 TESATRONIC TT80 High precision electronic display 04430012 TESATRONIC TT90 High precision electronic display Number of probes inputs Automatic conversion of range TESATRONIC TT80 High precision electronic display 2 TESATRONIC TT90 high precision electronic display 2 O
