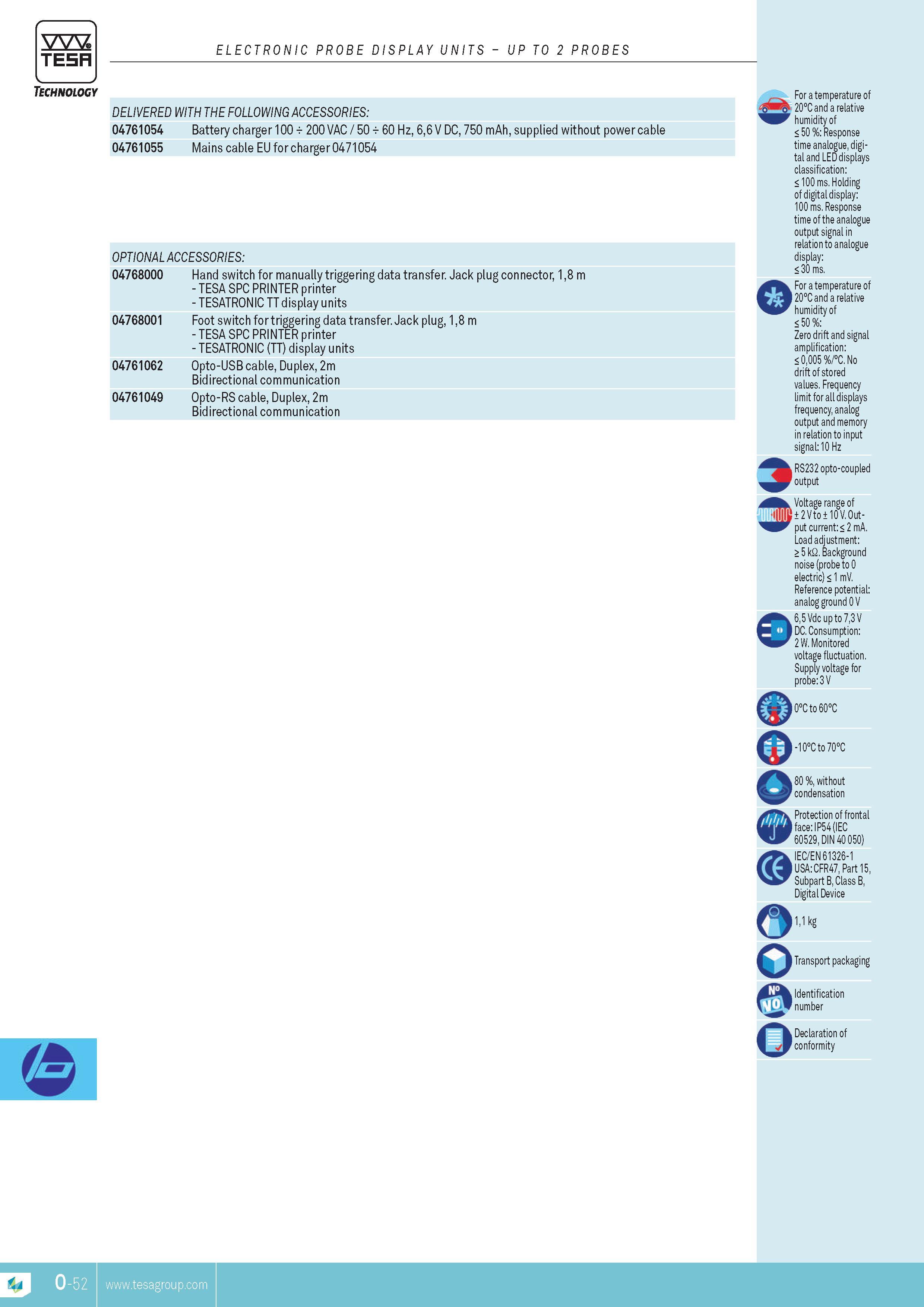

TESA electronic probe display UNITS UP TO 2 probes Technology delivered with the following accessories 04761054 Battery charger 100 t 200 VAC 50 t 60 Hz 66 V DC 750 mAh supplied without power cable 04761055 Mains cable EU for charger 0471054 OPTIONAL AccESSORIES 04768000 Hand switch for manually triggering data transfer. Jack plug connector 18 m TESA SPC PRINTER printer TESATRONIC TT display units 04768001 Foot switch for triggering data transfer. Jack plug 18 m TESA SPC PRINTER printer TESATRONIC (TT) display units 04761062 Opto-USB cable Duplex 2m Bidirectional communication 04761049 Opto-RS cable Duplex 2m Bidirectional communication Q 3 For a temperature of 20C and a relative humidity of 50 % Response time analogue digital and LED displays classification 100 ms. Holding of digital display 100 ms. Response time of the analogue output signal in relation to analogue display 30 ms. For a temperature of 20C and a relative humidity of 50 % Zero drift and signal amplification 0005 % C. No drift of stored values. Frequency limit for all displays frequency analog output and memory in relation to input signal 10 Hz RS232 opto-coupled output 2 V to 10 V. Output current 2 mA. Load adjustment 5 kQ. Background noise (probe to 0 electric) 1 mV. Reference potential analog ground 0 V 65 Vdc up to 73 V DC. Consumption 2 W. Monitored voltage fluctuation. Supply voltage for probe 3 V 0C to60C -10C to70C 80 % without condensation Protection of frontal face IP54 (IEC 60529 DIN 40 050) . IEC EN 61326-1 USA CFR47 Part 15 Subpart B Class B Digital Device 11 kg I Transport packaging Identification number Declaration of conformity TESA
