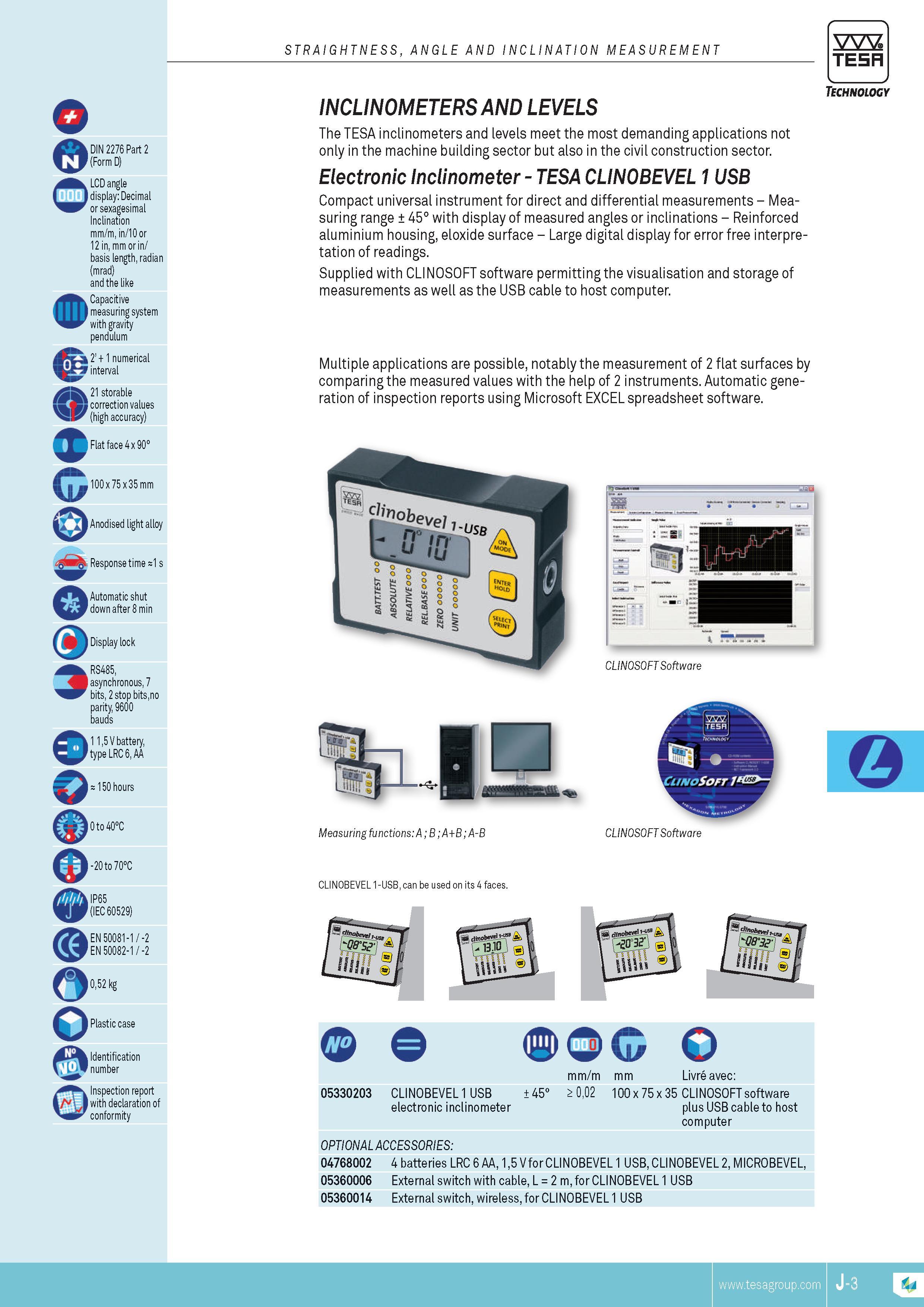

STRAIGHTNESS ANGLE AND INCLINATION MEASUREMENT TESA DIN 2276 Part 2 (Form D) LCD angle display Decimal or sexagesimal Inclination mm m in 10 or 12 in mm or in basis length radian (mrad) and the like Capacitive measuring system with gravity pendulum 2' + 1 numerical interval 21 storable correction values (high accuracy) Flat face 4x90 X c Response time 1 s Q Display lock 3 100 x 75 x 35 mm Anodised light alloy Automatic shut down after 8 min RS485 asynchronous 7 bits 2 stop bitsno parity 9600 bauds o m 1 15 V battery type LRC 6 aA ; 150 hours 0 to 40C -20 to70C IP65 (IEC 60529) EN 50081-1 -2 EN 50082-1 -2 052 kg Plastic case Identification number Inspection report with declaration of conformity INCLINOMETERS AND LEVELS The TESA inclinometers and levels meet the most demanding applications not only in the machine building sector but also in the civil construction sector. Electronic Inclinometer TESA CLINOBEVEL 1 USB Compact universal instrument for direct and differential MEASUREMENTs Measuring range 45 with display of measured angles or inclinations Reinforced aluminium housing eloxide surface Large digital display for error free interpretation of readings. Supplied with CLINOSOFT software permitting the visualisation and storage of MEASUREMENTs as well as the USB cable to host computer. Multiple applications are possible notably the MEASUREMENT of 2 flat surfaces by comparing the measured values with the help of 2 instruments. Automatic generation of inspection reports using Microsoft EXCEL spreadsheet software. Technology CLINOSOFT Software 0 Measuring functions A; B; A+B; A-B CLINOBEVEL 1-USB can be used on its 4 faces. CLINOSOFT Software OG O mm m mm Livre avec 05330203 CLINOBEVEL 1 USB 45 002 100 x 75 x 35 CLINOSOFT software electronic inclinometer plus USB cable to host computer OpTIONAL ACCESSORIES 04768002 4 batteries LRC 6 AA 15 V for CLINOBEVEL 1 USB CLINOBEVEL 2 MICROBEVEL 05360006 External switch with cable L 2 m for CLINOBEVEL 1 USB 05360014 External switch wireless for CLINOBEVEL 1 USB
