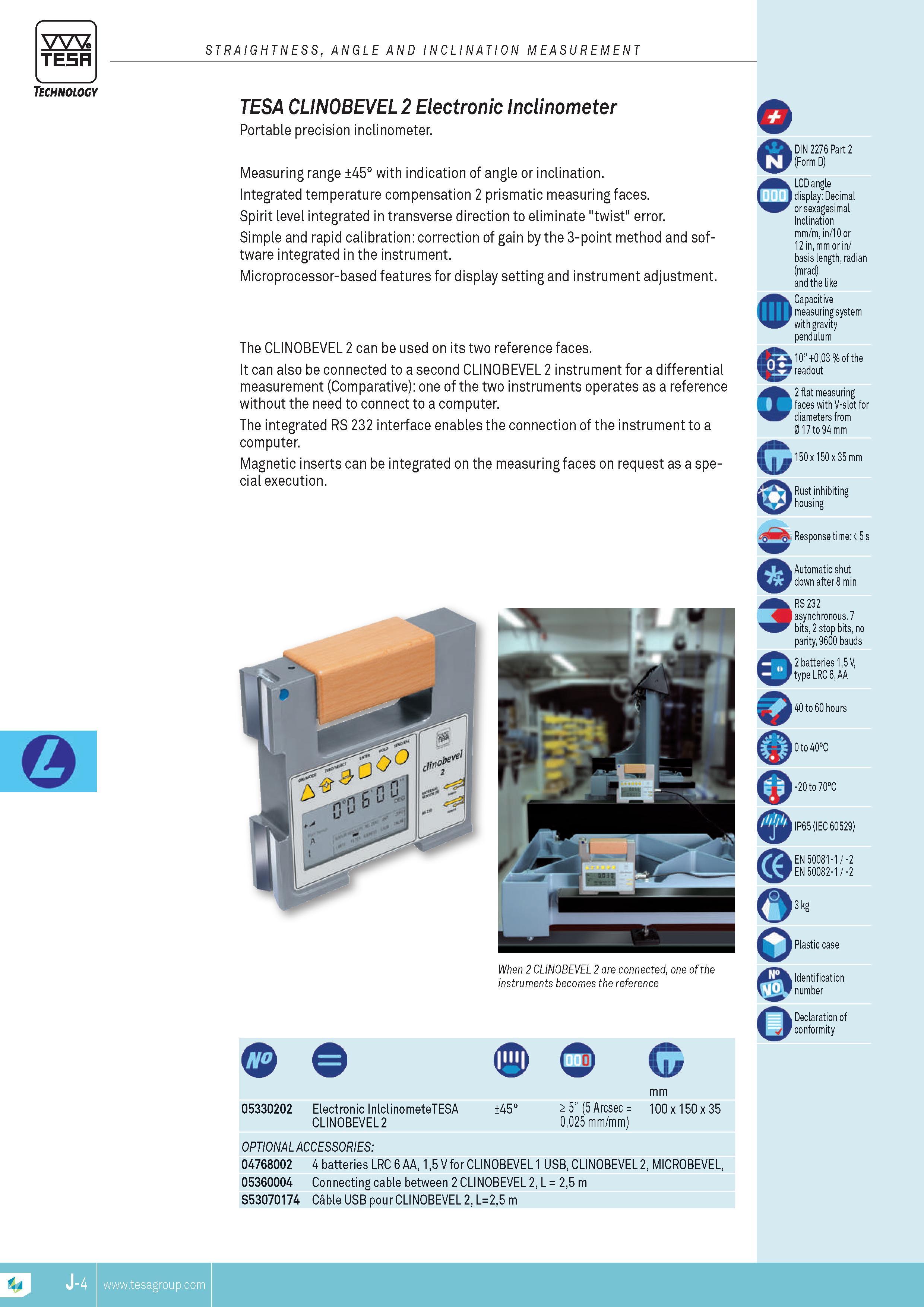

straightness angle and inclination MEASUREMENT TESA CLINOBEVEL 2 Electronic Inclinometer Portable precision inclinometer. Measuring range 45 with indication of angle or inclination. integrated temperature compensation 2 prismatic measuring faces. Spirit level integrated in transverse direction to eliminate "twist" error. Simple and rapid calibration correction of gain by the 3-point method and software integrated in the instrument. Microprocessor-based features for display setting and instrument adjustment. The CLiNoBEVEL 2 can be used on its two reference faces. it can also be connected to a second CLINoBEVEL 2 instrument for a differential MEASUREMENT (Comparative) one of the two instruments operates as a reference without the need to connect to a computer. The integrated RS 232 interface enables the connection of the instrument to a computer. Magnetic inserts can be integrated on the measuring faces on request as a special execution. When 2 CLINOBEVEL 2 are connected one of the instruments becomes the reference BOG 05330202 Electronic inlclinometeTESA clinobevel 2 45 5 (5 Arcsec 0025 mm mm) mm 100 x 150 x 35 OpTIONAL ACCESSORIES 04768002 4 batteries LRC 6 AA 15 V for CLINOBEVEL 1 USB CLINOBEVEL 2 MICROBEVEL 05360004 Connecting cable between 2 CLINOBEVEL 2 L 25 m S53070174 Cable USB pour CLINOBEVEL 2 L25 m o 0 X G 0 DIN 2276 Part 2 (Form D) LCD angle display Decimal or sexagesimal Inclination mm m in 10 or 12 in mm or in basis lengthradian (mrad) and the like Capacitive measuring system with gravity pendulum 10" +003 % of the readout 2 flat measuring faces with V-slot for diameters from 0 17 to 94 mm 150 x 150 x 35 mm Rust inhibiting housing Response time 5 s Automatic shut down after 8 min RS 232 asynchronous. 7 bits 2 stop bits no parity 9600 bauds 2 batteries 15 V type LRC 6 AA 40 to 60 hours wl m d o 0 to 40C 20 to 70C IP65 (IEC 60529) EN 50081-1 -2 EN 50082-1 -2 Plastic case Identification number o Declaration of conformity TESA TESA Technology
