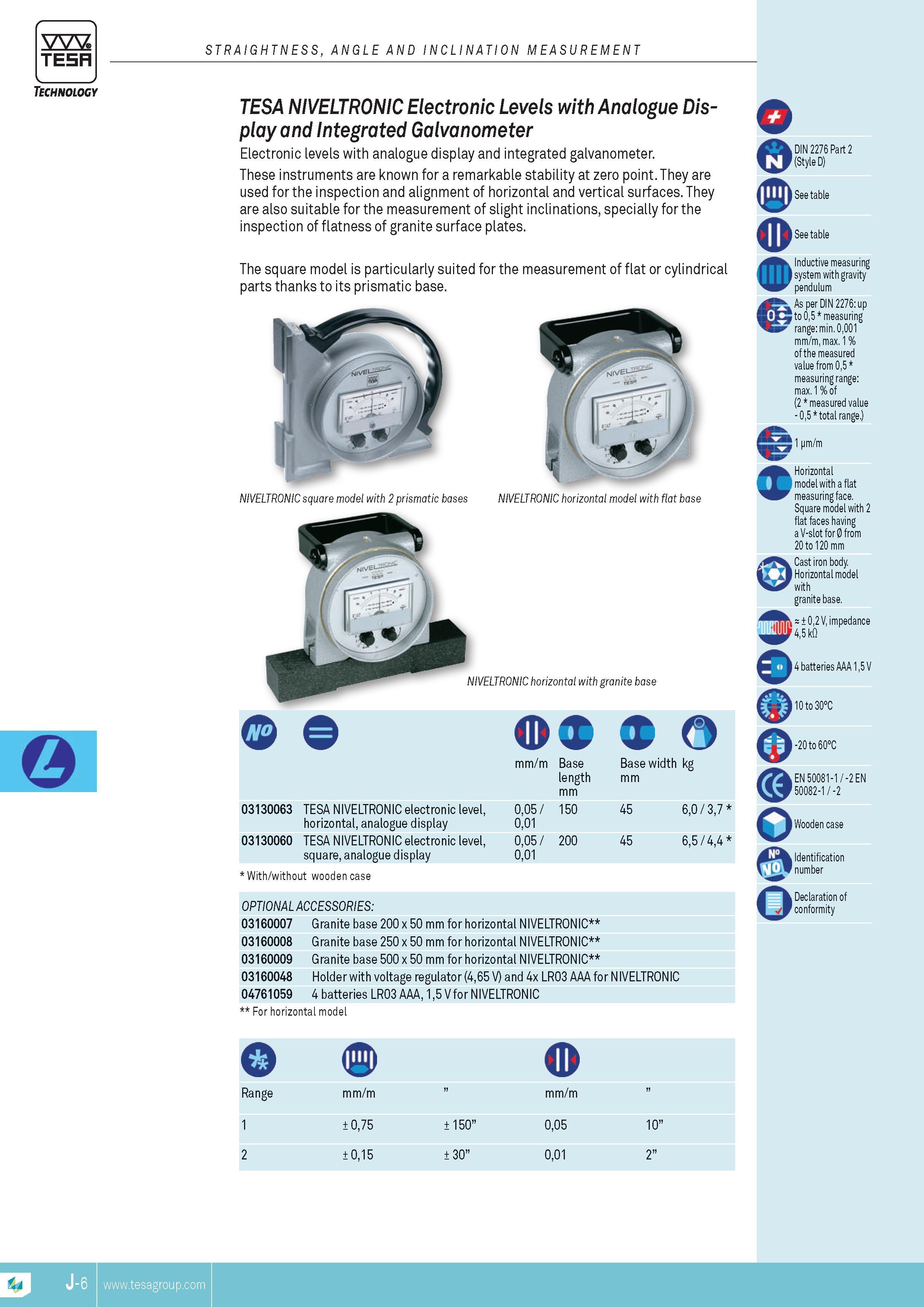

STRAIGHTNESS ANGLE AND INCLINATION MEASUREMENT TESA NIVELTRONIC Electronic Levels with Analogue Display and Integrated Galvanometer Electronic levels

STRAIGHTNESS ANGLE AND INCLINATION MEASUREMENT TESA NIVELTRONIC Electronic Levels with Analogue Display and Integrated Galvanometer Electronic levels with analogue display and integrated galvanometer. These instruments are known for a remarkable stability at zero point. They are used for the inspection and alignment of horizontal and vertical surfaces. They are also suitable for the MEASUREMENT of slight inclinations specially for the inspection of flatness of granite surface plates. The square model is particularly suited for the MEASUREMENT of flat or cylindrical parts thanks to its prismatic base. NIVELTRONIC square model with 2 prismatic bases NIVELTRONIC horizontal model with flat base NIVELTRONIC horizontal with granite base x x 03130063 TESA NIVELTRONIC electronic level horizontal analogue display 03130060 TESA NIVELTRONIC electronic level square analogue display With without wooden case mm m Base length mm 005 150 001 005 200 001 Base width kg mm 45 60 37 45 65 44 OpTIONAL ACCESSORIES 03160007 Granite base 200 x 50 mm for horizontal NIVELTRONIC 03160008 Granite base 250 x 50 mm for horizontal NIVELTRONIC 03160009 Granite base 500 x 50 mm for horizontal NIVELTRONIC 03160048 Holder with voltage regulator (465 V) and 4x LR03 AAA for NIVELTRONIC 04761059 4 batteries LR03 AAA 15 V for NIVELTRONIC For horizontal model 0 Range mm m mm m 1 075 150" 005 10" 2 015 0" 3 001 2" o DIN 2276 Part 2 (Style D) See table See table Inductive measuring system with gravity pendulum BAs per DIN 2276 up to 05 measuring range min.0001 mm m max. 1 % of the measured value from 05 measuring range max. 1 % of (2 measured value 05 total range.) 1 pm m Horizontal model with a flat measuring face. Square model with 2 flat faces having a V-slot for 0 from 20 to 120 mm Cast iron body. Horizontal model with s 02 V impedance Ji 4R kO 45 k 4 batteries AAA 15 V 10 to30C -20 to 60C EN 50081-1 -2EN 50082-1 -2 Wooden case Identification number o Declaration of conformity TESA TESA Technology 0
