TESA ALESOMETER CAPA p SYSTEM with Digital Display Fitted with a TESA patented capacitive measuring system Bore gauges with 3-line contact All TESA AL

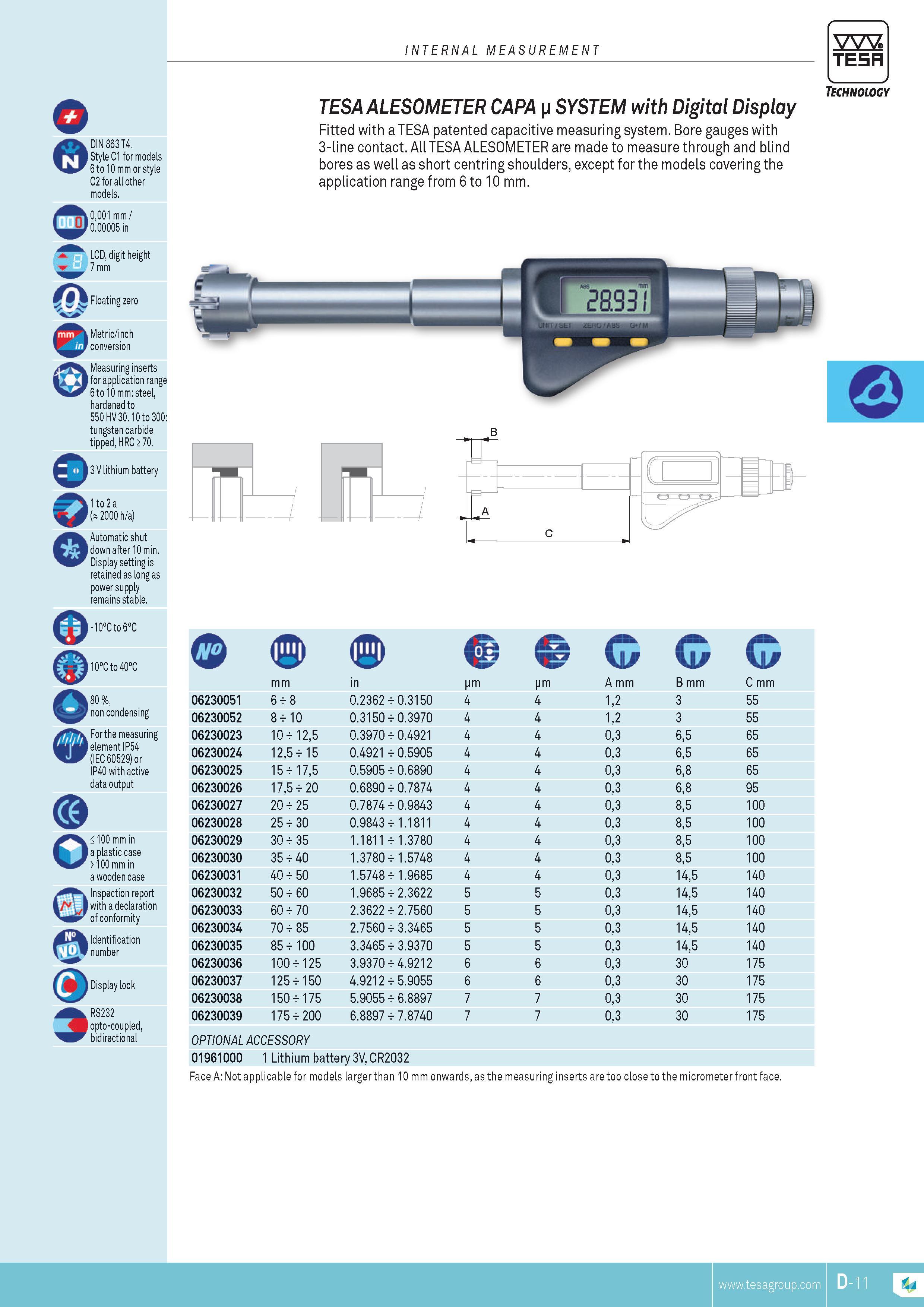

TESA ALESOMETER CAPA p SYSTEM with Digital Display Fitted with a TESA patented capacitive measuring system. Bore gauges with 3-line contact. All TESA ALESOMETER are made to measure through and blind bores as well as short centring shoulders except for the models covering the application range from 6 to 10 mm. 0. LCD digit height 7 mm 5 5 Floating zero S' 3 O IIP o % a Metric inch conversion Measuring inserts for application range 6 to 10 mm steel hardened to 550 HV 30. 10 to 300 tungsten carbide tipped HRC 70. 3 V lithium battery 1 to 2 a ( 2000 h a) Automatic shut down after 10 min. Display setting is retained as long as power supply remains stable. 10C to6C 10C to 40C non condensing For the measuring element IP54 (IEC 60529) or IP40 with active data output 100 mm in a plastic case 100 mm in a wooden case Inspection report with a declaration of conformity Identification VtUP number Display lock RS232 opto-coupled bidirectional optional accessory 01961000 1 Lithium battery 3V CR2032 Face A Not applicable for models larger than 10 mm onwards as the measuring inserts are too close to the micrometer front face. TESA Technology mm in pm pm A mm B mm C mm 06230051 6 8 0.2362 0.3150 4 4 12 3 55 06230052 8 10 0.3150 0.3970 4 4 12 3 55 06230023 10 125 0.3970 0.4921 4 4 03 65 65 06230024 125 15 0.4921 0.5905 4 4 03 65 65 06230025 15 175 0.5905 0.6890 4 4 03 68 65 06230026 175 20 0.6890 0.7874 4 4 03 68 95 06230027 20 25 0.7874 0.9843 4 4 03 85 100 06230028 25 30 0.9843 1.1811 4 4 03 85 100 06230029 30 35 1.1811 1.3780 4 4 03 85 100 06230030 35 40 1.3780 1.5748 4 4 03 85 100 06230031 40 50 1.5748 1.9685 4 4 03 145 140 06230032 50 60 1.9685 2.3622 5 5 03 145 140 06230033 60 70 2.3622 2.7560 5 5 03 145 140 06230034 70 85 2.7560 3.3465 5 5 03 145 140 06230035 85 100 3.3465 3.9370 5 5 03 145 140 06230036 100 125 3.9370 4.9212 6 6 03 30 175 06230037 125 150 4.9212 5.9055 6 6 03 30 175 06230038 150 175 5.9055 6.8897 7 7 03 30 175 06230039 175 200 6.8897 7.8740 7 7 03 30 175 TESA B internal MEASUREMENT o Q) DIN 863 T4. Style C1 for models 6 to 10 mm or style C2 for all other models. 0001 mm
