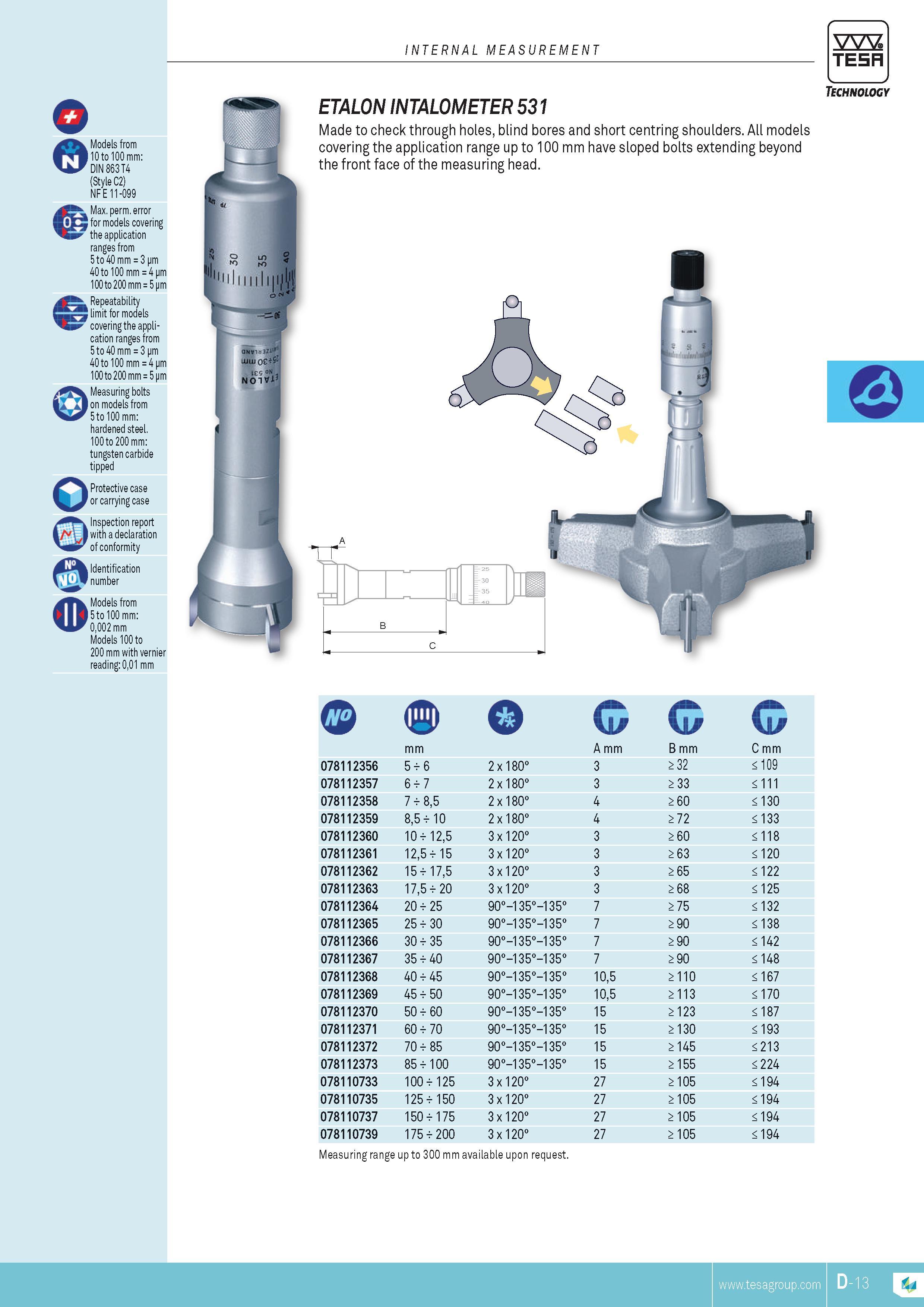

Микрометрические механические нутромеры Tesa ETALON INTALOMETER 531 для измерения сквозных и глухих отверстий коротких центрирующих буртиков INTERNAL MEASUREMENT TESA Models from 10 to 100 mm DIN 863 T4 (Style C2) NF E 11-099 Max. perm. error for models covering the application ranges from 5 to 40 mm 3 pm 40 to 100 mm 4 pm 100 to 200 mm 5 pm Repeatability limit for models covering the application ranges from 5 to 40 mm 3 pm 40 to 100 mm 4 pm 100 to 200 mm 5 pm Measuring bolts on models from 5 to 100 mm hardened steel. 100 to 200 mm tungsten carbide tipped Protective case or carrying case Inspection report with a declaration of conformity Identification number Models from III 5 to 100 mm 0002 mm Models 100 to 200 mm with vernier reading 001 mm ETALON INTALOMETER 531 Made to check through holes blind bores and short centring shoulders. All models covering the application range up to 100 mm have sloped bolts extending beyond the front face of the measuring head. Technology G G G mm A mm B mm C mm 078112356 5 6 2 x 180 3 32 109 078112357 6 7 2x180 3 33 111 078112358 7 85 2 x 180 4 60 130 078112359 85 10 2 x 180 4 72 133 078112360 10 125 3 x 120 3 60 118 078112361 125 15 3 x 120 3 63 120 078112362 15 175 3 x 120 3 65 122 078112363 175 20 3 x 120 3 68 125 078112364 20 25 90-135-135 7 75 132 078112365 25 30 90-135-135 7 90 138 078112366 30 35 90-135-135 7 90 142 078112367 35 40 90-135-135 7 90 148 078112368 40 45 90-135-135 105 110 167 078112369 45 50 90-135-135 105 113 170 078112370 50 60 90-135-135 15 123 187 078112371 60 70 90-135-135 15 130 193 078112372 70 85 90-135-135 15 145 213 078112373 85 100 90-135-135 15 155 224 078110733 100 125 3x120 27 105 194 078110735 125 150 3x120 27 105 194 078110737 150 175 3x120 27 105 194 078110739 175 200 3x120 27 105 194 Measuring range up to 300 mm available upon request. TESA
