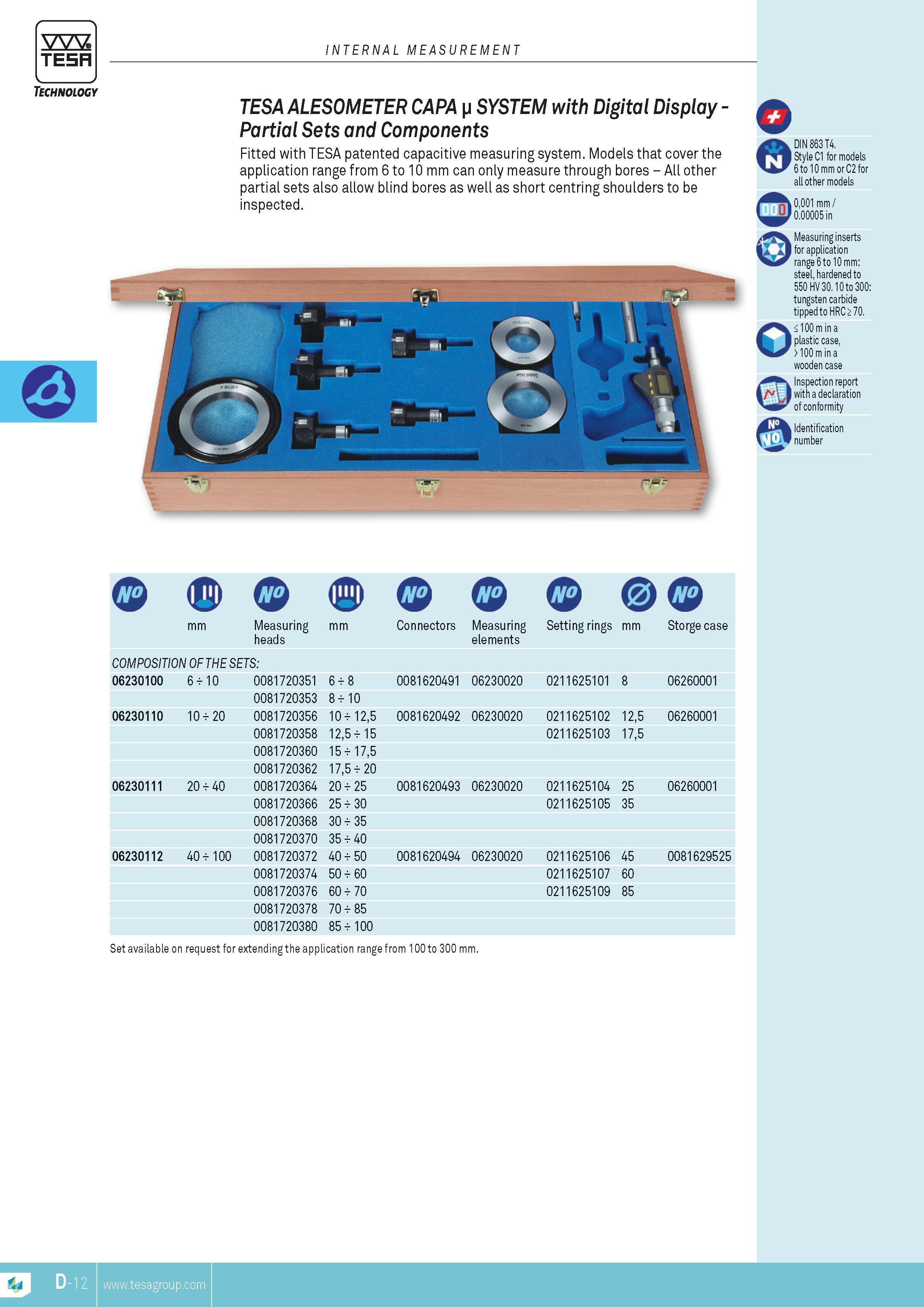

TESA ALESOMETER CAPA j SYSTEM with Digital Display -Partial Sets and Components Fitted with TESA patented capacitive measuring system Models that cove

TESA ALESOMETER CAPA j SYSTEM with Digital Display -Partial Sets and Components Fitted with TESA patented capacitive measuring system. Models that cover the application range from 6 to 10 mm can only measure through bores All other partial sets also allow blind bores as well as short centring shoulders to be inspected. DIN 863 T4. Style C1 for models 6 to 10 mm or C2 for all other models 0001 mm 0.00005 in Measuring inserts for application range 6 to 10 mm steel hardened to 550 HV 30. 10 to 300 tungsten carbide tipped to HRC 70. 100 m in a plastic case 100 m in a wooden case Inspection report with a declaration of conformity Identification number o; mm Measuring heads mm Connectors Measuring elements Setting rings mm Storge case COMPOSITION OF THE SETS 06230100 6 10 0081720351 6 8 0081620491 06230020 0211625101 8 06260001 0081720353 8 10 06230110 10 20 0081720356 10 125 0081620492 06230020 0211625102 125 06260001 0081720358 125 15 0211625103 175 0081720360 15 175 0081720362 175 20 06230111 20 40 0081720364 20 25 0081620493 06230020 0211625104 25 06260001 0081720366 25 30 0211625105 35 0081720368 30 35 0081720370 35 40 06230112 40 100 0081720372 40 50 0081620494 06230020 0211625106 45 0081629525 0081720374 50 60 0211625107 60 0081720376 60 70 0211625109 85 0081720378 70 85 0081720380 85 100 Set available on request for extending the application range from 100 to 300 mm. TESA INTERNAL MEASUREMENT Technology
