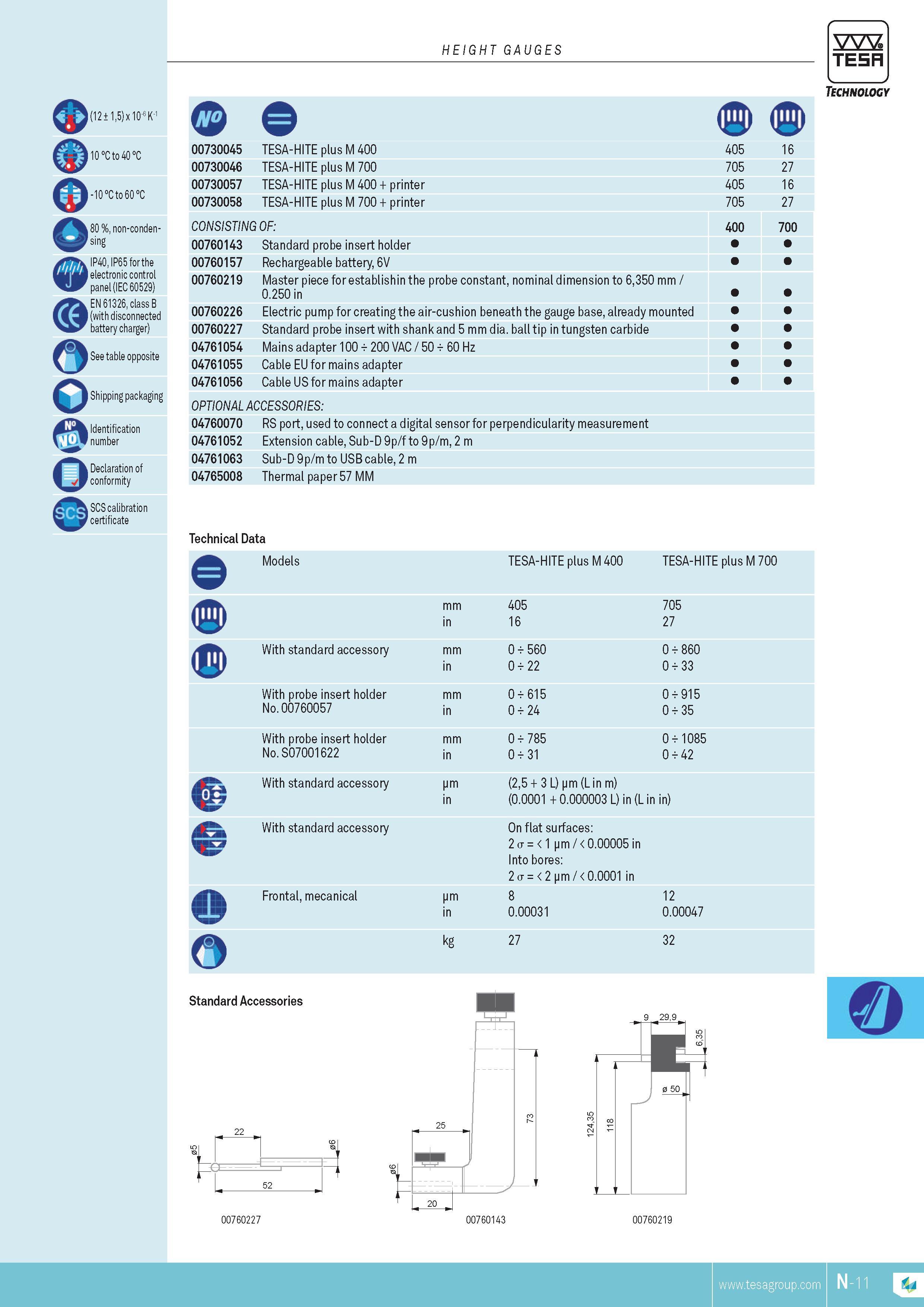

HEIGHT GAUGES (12 15) x 10-6 K-1 10 C to 40 C -10 C to 60 C 80 %non-conden-sing IP40 IP65for the electronic control panel (IEC 60529) EN 61326 class B (with disconnected battery charger) See table opposite I Shipping packaging Identification number Declaration of conformity SCS calibration certificate TESA (0) (0) Technology 00730045 TESA-HITE plus M 400 00730046 TESA-HITE plus M 700 00730057 TESA-HITE plus M 400 + printer 00730058 TESA-HITE plus M 700 + printer CONSISTING OF 00760143 Standard probe insert holder 00760157 Rechargeable battery 6V 00760219 Master piece for establishin the probe constant nominal dimension to 6350 mm 0.250 in 00760226 Electric pump for creating the air-cushion beneath the gauge base already mounted 00760227 Standard probe insert with shank and 5 mm dia. ball tip in tungsten carbide 04761054 Mains adapter 100 200 VAC 50 60 Hz 04761055 Cable EU for mains adapter 04761056 Cable US for mains adapter OPTIONAL ACCESSORIES 04760070 RS port used to connect a digital sensor for perpendicularity MEASUREMENT 04761052 Extension cable Sub-D 9p f to 9p m 2 m 04761063 Sub-D 9p m to USB cable 2 m 04765008 Thermal paper 57 MM Technical Data 405 705 405 705 400 16 27 16 27 700 o 10) Models With standard accessory With probe insert holder No. 00760057 With probe insert holder No. S07001622 With standard accessory With standard accessory Frontal mecanical mm in mm in mm in mm in pm in pm in kg TESA-HITE plus M 400 405 16 0 560 0 22 0 615 0 24 0 785 0 31 TESA-HITE plus M 700 705 27 0 860 0 33 0 915 0 35 0 1085 0 42 (25 + 3 L) pm (L in m) (0.0001 + 0.000003 L) in (L in in) On flat surfaces 2 a 1 pm 0.00005 in Into bores 2 a 2 pm 0.0001 in 8 12 0.00031 0.00047 27 32
