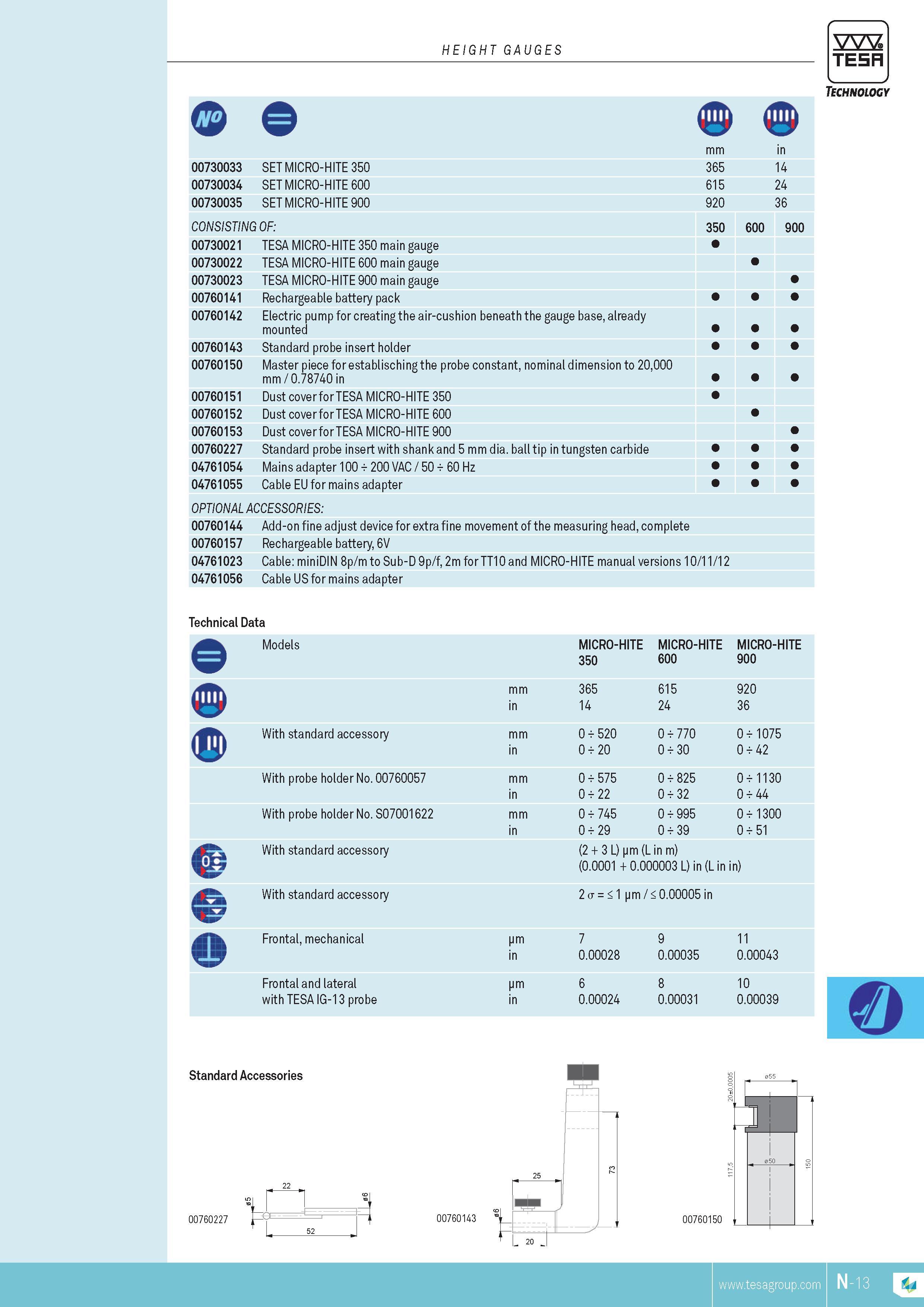

HEIGHT GAUGES TESA Technology mm in 00730033 SET MICRO-HITE 350 365 14 00730034 SET MICRO-HITE 600 615 24 00730035 SET MICRO-HITE 900 920 36 CONSISTING OF 350 600 900 00730021 TESA MICRO-HITE 350 main gauge 00730022 TESA MICRO-HITE 600 main gauge 00730023 TESA MICRO-HITE 900 main gauge 00760141 Rechargeable battery pack 00760142 Electric pump for creating the air-cushion beneath the gauge base already mounted 00760143 Standard probe insert holder 00760150 Master piece for establisching the probe constant nominal dimension to 20000 mm 0.78740 in 00760151 Dust cover for TESA MICRO-HITE 350 00760152 Dust cover for TESA MICRO-HITE 600 00760153 Dust cover for TESA MICRO-HITE 900 00760227 Standard probe insert with shank and 5 mm dia. ball tip in tungsten carbide 04761054 Mains adapter 100 200 VAC 50 60 Hz 04761055 Cable EU for mains adapter OPTIONAL ACCESSORIES 00760144 Add-on fine adjust device for extra fine movement of the measuring head complete 00760157 Rechargeable battery 6V 04761023 Cable miniDIN 8p m to Sub-D 9p f 2m for TT10 and MICRO-HITE manual versions 10 11 12 04761056 Cable US for mains adapter Technical Data Models MICRO-HITE MICRO-HITE MICRO-HITE 350 600 900 mm 365 615 920 in 14 24 36 With standard accessory mm 0 520 0 770 O -1- 0 cn in 0 20 0 30 0 42 With probe holder No. 00760057 mm 0 575 0 825 0 1130 in 0 22 0 32 0 44 With probe holder No. S07001622 mm 0 745 0 995 0 1300 in 0 29 0 39 0 51 With standard accessory (2 + 3 L) pm (L n m) (0.0001 + 0.000003 L) in (L in in) With standard accessory 2 a 1 pm 0.00005 in Frontal mechanical pm 7 9 11 in 0.00028 0.00035 0.00043 Frontal and lateral pm 6 8 10 with TESA IG-13 probe in 0.00024 0.00031 0.00039 Standard Accessories 00760227 00760143 ZS- 00760150 9 TESA N-13 25 22 52 20
