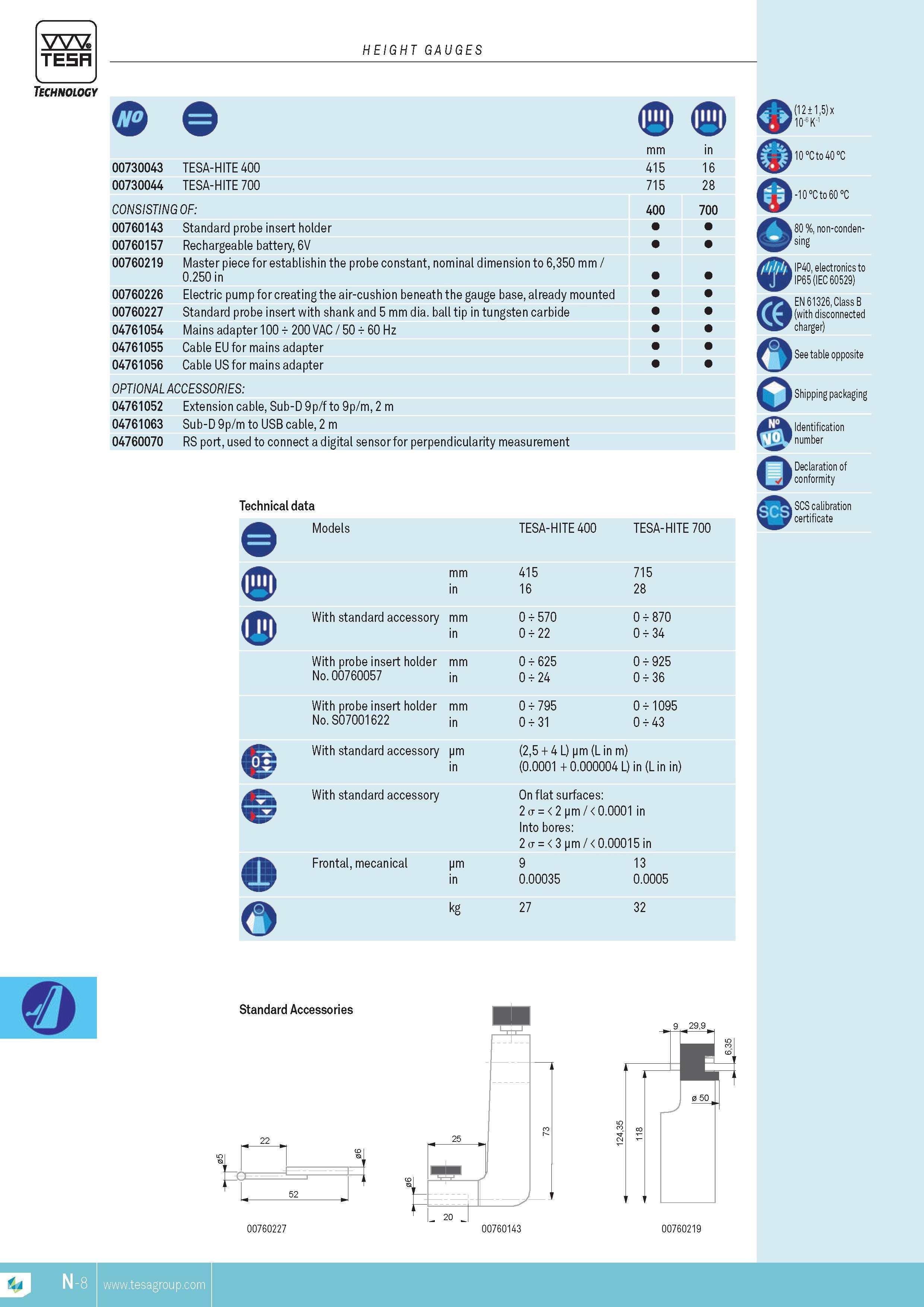

TESA HEIGHT GAUGES Technology 00730043 00730044 TESA-HITE 400 TESA-HITE 700 CONSISTING OF 00760143 Standard probe insert holder 00760157 Rechargeable battery 6V 00760219 Master piece for establishin the probe constant nominal dimension to 6350 mm 0.250 in 00760226 Electric pump for creating the air-cushion beneath the gauge base already mounted 00760227 Standard probe insert with shank and 5 mm dia. ball tip in tungsten carbide 04761054 Mains adapter 100 200 VAC 50 60 Hz 04761055 Cable EU for mains adapter 04761056 Cable US for mains adapter OPTIONAL ACCESSORIES 04761052 Extension cable Sub-D 9p f to 9p m 2 m 04761063 Sub-D 9p m to USB cable 2 m 04760070 RS port used to connect a digital sensor for perpendicularity MEASUREMENT Technical data o Models mm in With standard accessory mm in With probe insert holder mm No. 00760057 in With probe insert holder mm No. S07001622 in With standard accessory pm in With standard accessory TESA-HITE 400 415 16 0 570 0 22 0 625 0 24 0 795 0 31 mm in 415 16 715 28 TESA-HITE 700 715 28 0 870 0 34 0 925 0 36 0 1095 0 43 o Frontal mecanical pm in kg (25 + 4 L) pm (L in m) (0.0001 + 0.000004 L) in (L in in) On flat surfaces 2 a 2 pm 0.0001 in Into bores 2 a 3 pm 0.00015 in 9 13 0.00035 0.0005 (12 15) x 10-6 K-1 10 C to 40 C o 0 o -10 C to 60 C 80 %non-conden-sing IP40 electronics to IP65 (IEC 60529) EN 61326 Class B (with disconnected charger) See table opposite Shipping packaging Identification number Declaration of conformity SCS calibration certificate 27 32
