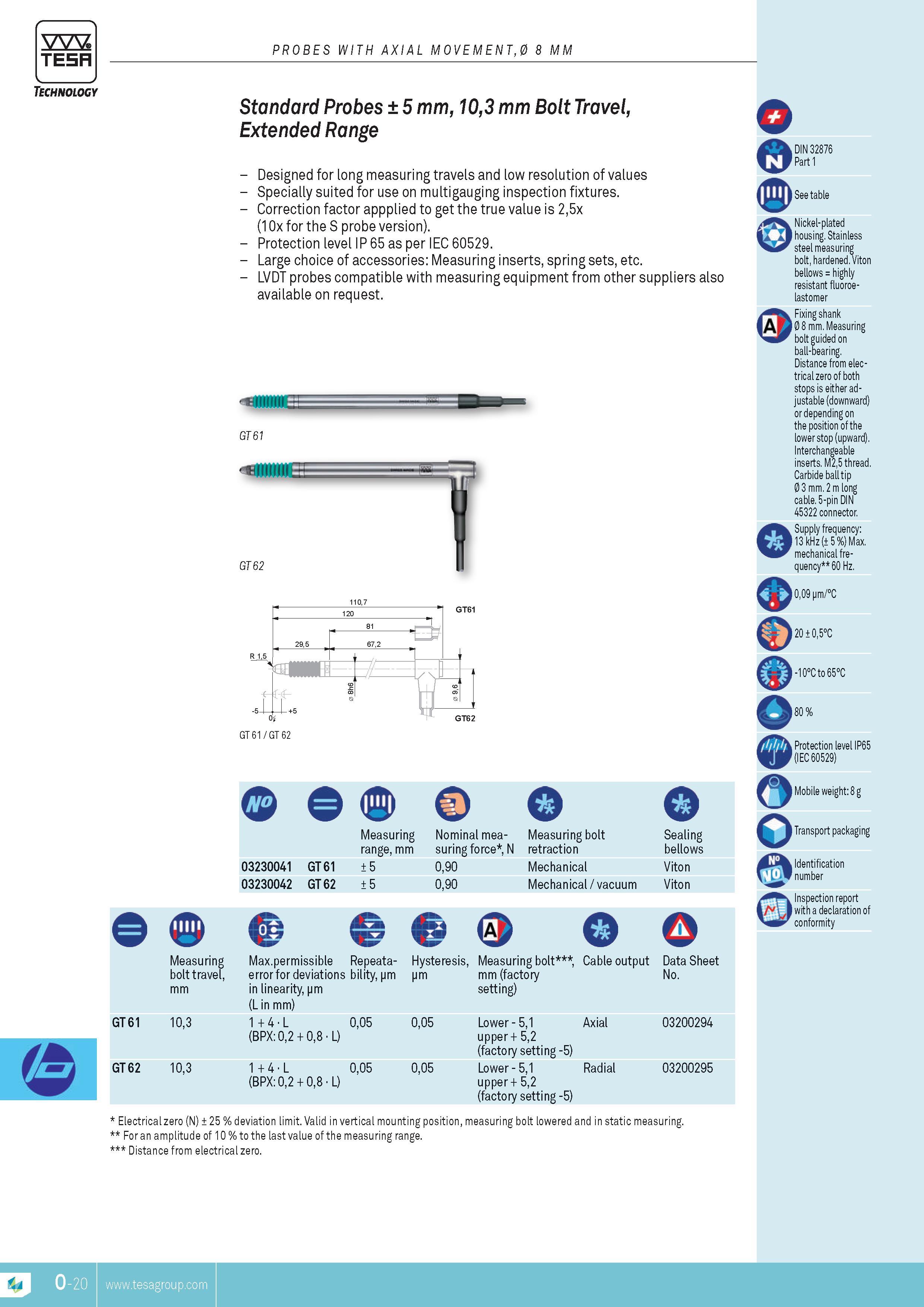

TESA PROBES WITH AXIAL MOVEMENT0 8 MM Technology o GT 61 GT 62 Standard Probes 5 mm 103 mm Bolt Travel Extended Range Designed for long measuring travels and low resolution of values Specially suited for use on multigauging inspection fixtures. Correction factor appplied to get the true value is 25x (10x for the S probe version). Protection level IP 65 as per IEC 60529. Large choice of accessories Measuring inserts spring sets etc. LVDT probes compatible with measuring equipment from other suppliers also available on request. GT 61 GT 62 0 GT 61 GT 62 Measuring bolt travel mm 103 103 03230041 GT 61 03230042 GT 62 Max.permissible error for deviations in linearity pm (L in mm) 1 + 4 L (BPX 02 + 08 L) 1 + 4 L (BPX 02 + 08 L) Measuring Nominal mea- Measuring bolt Sealing range mm suring force N retraction bellows 5 090 Mechanical Viton 5 090 Mechanical vacuum Viton e Repeata- Hysteresis Measuring bolt bility pm pm mm (factory setting) 005 005 Lower 51 upper + 52 (factory setting -5) 005 005 Lower 51 upper + 52 (factory setting -5) Axial Radial Data Sheet No. 03200294 03200295 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. Distance from electrical zero. DIN 32876 Part 1 See table Nickel-plated housing. Stainless steel measuring bolt hardened. Viton bellows highly resistant fluoroe-lastomer Fixing shank A 0 8 mm. Measuring bolt guided on ball-bearing. Distance from electrical zero of both stops is either adjustable (downward) or depending on the position of the lower stop (upward). Interchangeable inserts. M25 thread. Carbide ball tip 0 3 mm. 2 m long cable. 5-pin DIN 45322 connector. Supply frequency 13 kHz ( 5 %) Max. mechanical frequency 60 Hz. o 009 pm C 20 05C 10C to 65C Protection level IP65 (IEC 60529) Mobile weight 8 g Transport packaging Identification number Inspection report with a declaration of conformity TESA 81 +5
