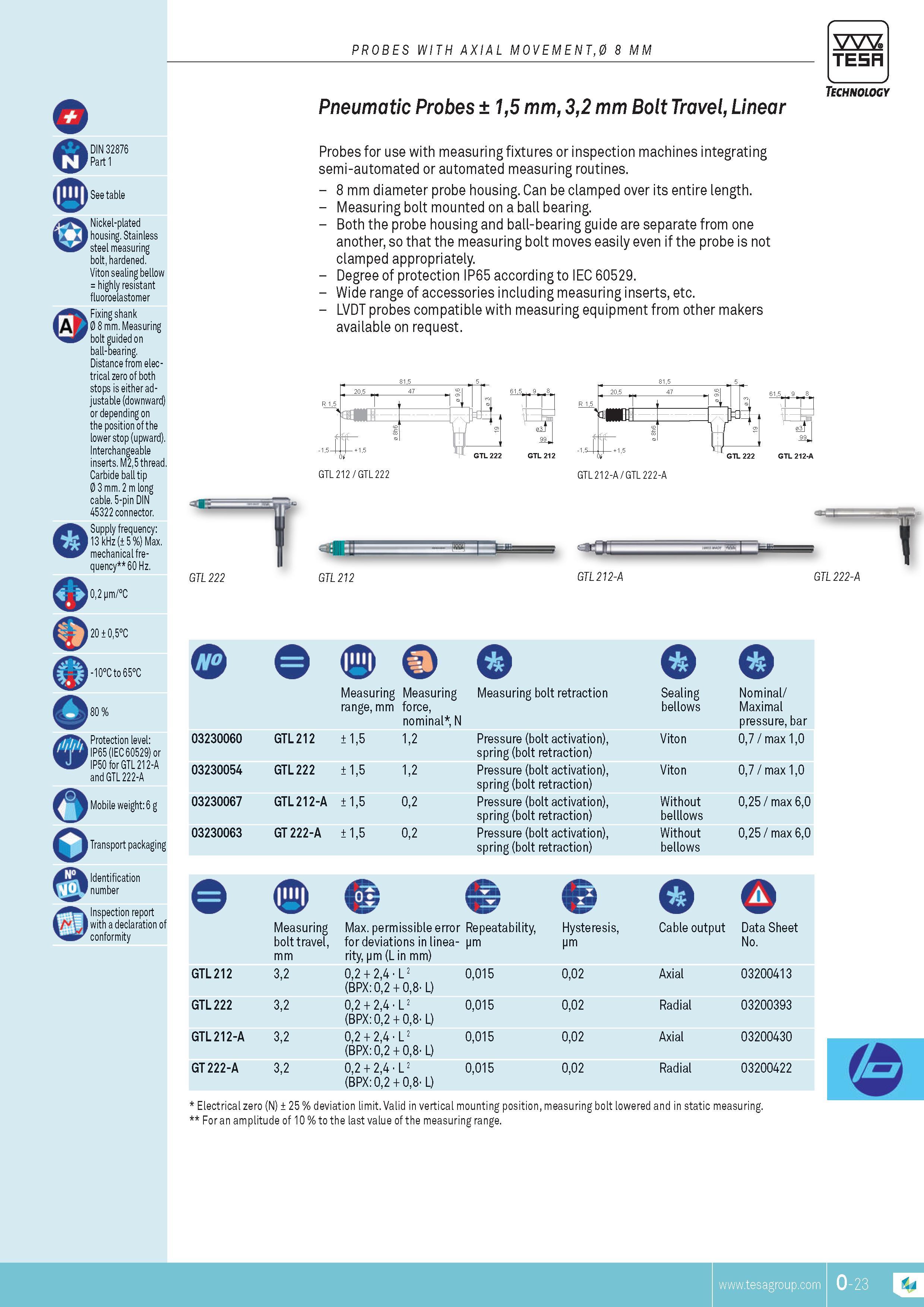

PROBES WITH AXIAL MOVEMENT0 8 MM TESA DIN 32876 Part 1 See table Nickel-plated housing. Stainless steel measuring bolt hardened. Viton sealing bellow highly resistant fluoroelastomer Fixing shank A 0 8 mm. Measuring bolt guided on ball-bearing. Distance from electrical zero of both stops is either adjustable (downward) or depending on the position of the lower stop (upward). Interchangeable inserts. M25 thread. Carbide ball tip 0 3 mm. 2 m long cable. 5-pin DIN 45322 connector. Supply frequency 13 kHz ( 5 %) Max. mechanical frequency 60 Hz. IP o 02 pm C 20 05C 10C to 65C Protection level IP65 (IEC 60529) or IP50 for GTL 212-A and GTL 222-A Mobile weight 6 g Transport packaging o Identification number Inspection report V vl with a declaration of conformity GTL 222 GTL 212 GTL222 GTL212-A GT222-A pneumatic probes 15 mm 32 mm bolt Travel Linear Probes for use with measuring fixtures or inspection machines integrating semi-automated or automated measuring routines. 8 mm diameter probe housing. Can be clamped over its entire length. Measuring bolt mounted on a ball bearing. Both the probe housing and ball-bearing guide are separate from one another so that the measuring bolt moves easily even if the probe is not clamped appropriately. Degree of protection IP65 according to IEC 60529. Wide range of accessories including measuring inserts etc. LVDT probes compatible with measuring equipment from other makers available on request. Technology GTL 222 GTL 212-A GTL 212 GTL 212-A GTL 222-A Q Q Q Measuring Measuring Measuring bolt retraction range mm force nominal N 03230060 GTL 212 15 12 Pressure (bolt activation) spring (bolt retraction) 03230054 GTL 222 15 12 Pressure (bolt activation) spring (bolt retraction) 03230067 GTL 212-A 15 02 Pressure (bolt activation) spring (bolt retraction) 03230063 GT 222-A 15 02 Pressure (bolt activation) spring (bolt retraction) Sealing bellows Viton Viton Without be ows Without bellows Nominal Maximal pressure bar 07 max 10 07 max 10 025 max 60 025 max 60 Measuring bolt travel mm 3.2 3.2 3.2 3.2 Max. permissible error Repeatability for deviations in linea- pm rity pm (L in mm) 02 + 24 L 2 (BPX 02 + 08 L) 02 + 24 L 2 (BPX 02 + 08 L) 02 + 24 L 2 (BPX 02 + 08 L) 02 + 24 L 2 (BPX 02 + 08 L) 0015 0015 0015 0015 Hysteresis Cable output Data Sheet pm No. 002 Axial 03200413 002 Radial 03200393 002 Axial 03200430 002 Radial 03200422 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. 51.5 . 9 8 O
