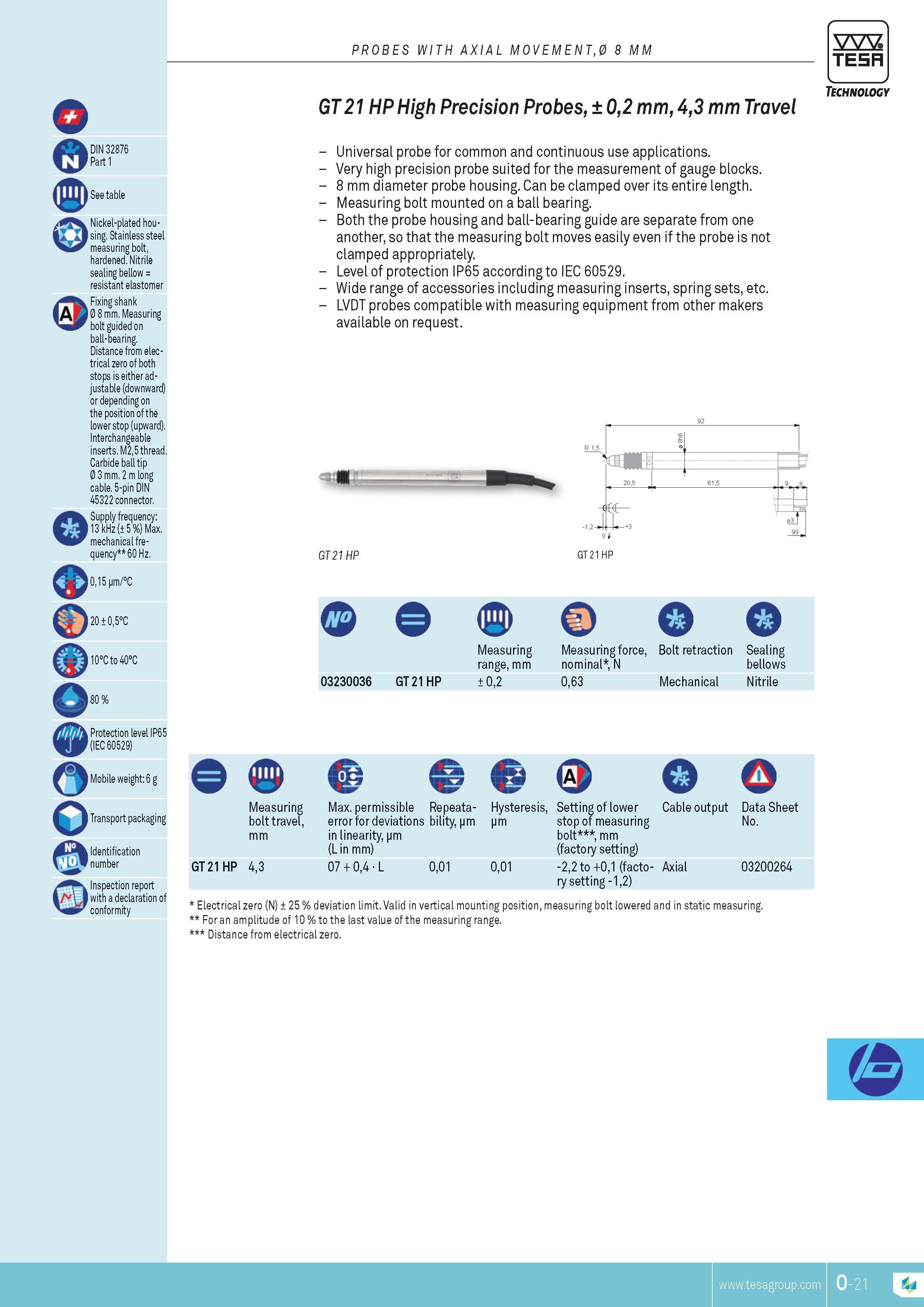

PROBES WITH AXIAL MOVEMENT0 8 MM TESA GT21 Hp High precision probes 02 mm 43 mm Travel Technology DIN 32876 Part 1 I See table Nickel-plated housing. Stainless steel measuring bolt hardened. Nitrile sealing bellow resistant elastomer Fixing shank 0 8 mm. Measuring bolt guided on ball-bearing. Distance from electrical zero of both stops is either adjustable (downward) or depending on the position of the lower stop (upward). Interchangeable inserts. M25 thread. Carbide ball tip 0 3 mm. 2 m long cable. 5-pin DIN 45322 connector. Supply frequency 13 kHz ( 5 %) Max. mechanical frequency 60 Hz. 015 pm C 20 05C 10C to 40C Universal probe for common and continuous use applications. Very high precision probe suited for the MEASUREMENT of gauge blocks. 8 mm diameter probe housing. Can be clamped over its entire length. Measuring bolt mounted on a ball bearing. Both the probe housing and ball-bearing guide are separate from one another so that the measuring bolt moves easily even if the probe is not clamped appropriately. Level of protection IP65 according to IEC 60529. Wide range of accessories including measuring inserts spring sets etc. LVDT probes compatible with measuring equipment from other makers available on request. 03 t GT 21 HP 0 GT 21 HP 03230036 GT 21 HP Measuring range mm 02 Measuring force Bolt retraction Sealing nominal N bellows 063 Mechanical Nitrile Protection level IP65 (IEC 60529) Mobile weight 6 g I Transport packaging Identification number Inspection report with a declaration of conformity Measuring bolt travel mm Max. permissible error for deviations in linearity pm (L in mm) Repeatability pm Hysteresis pm Setting of lower stop of measuring bolt mm (factory setting) Cable output Data Sheet No. GT 21 HP 43 07 + 04 L 001 001 -22 to +01 (factory setting -12) Axial 03200264 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. Distance from electrical zero. 92 R 1.5 9 .8 99 O
