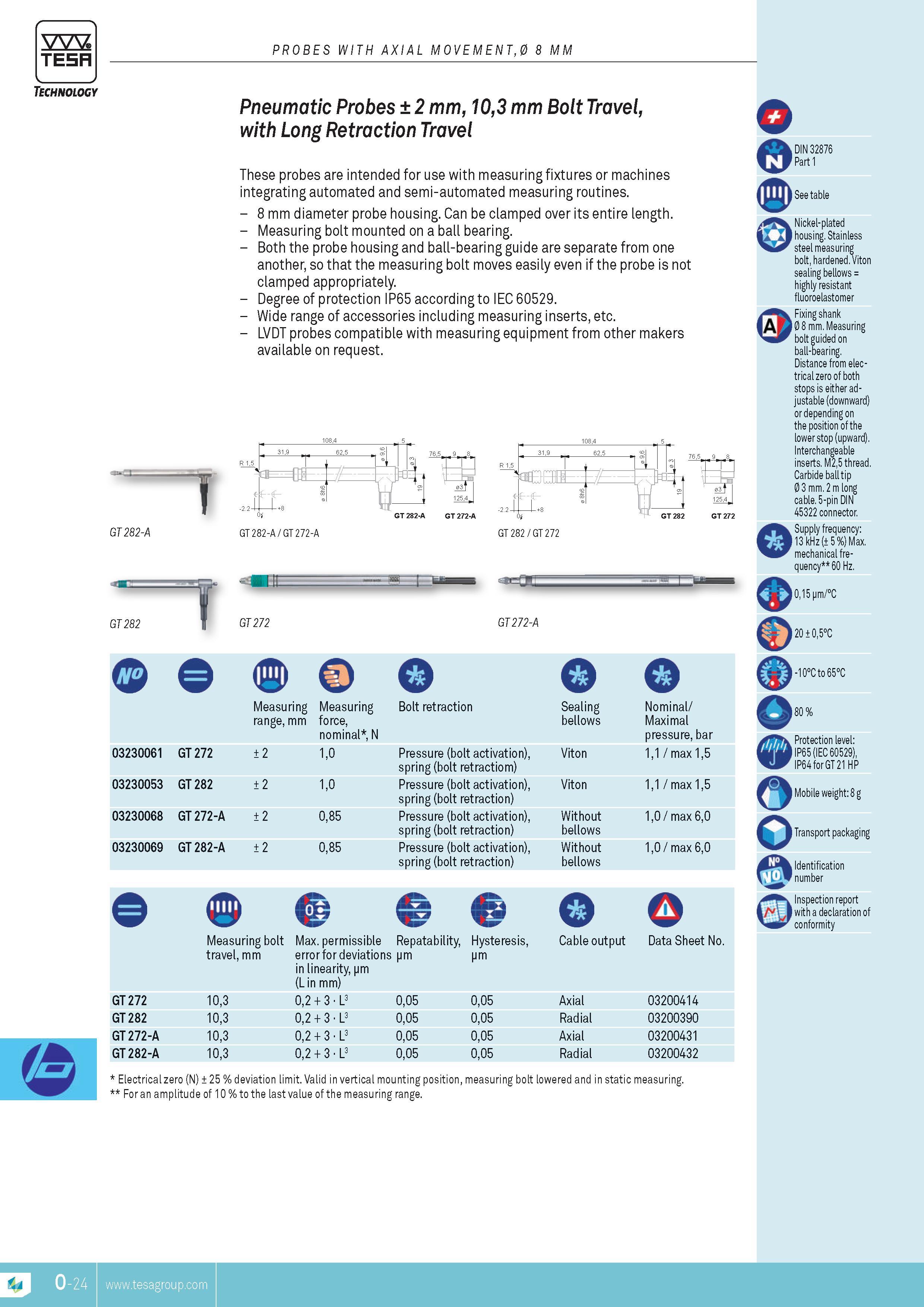

TESA PROBES WITH AXIAL MOVEMENT0 8 MM Technology pneumatic probes 2 mm 103 mm bolt Travel with Long retraction Travel These probes are intended for use with measuring fixtures or machines integrating automated and semi-automated measuring routines. 8 mm diameter probe housing. Can be clamped over its entire length. Measuring bolt mounted on a ball bearing. Both the probe housing and ball-bearing guide are separate from one another so that the measuring bolt moves easily even if the probe is not clamped appropriately. Degree of protection IP65 according to IEC 60529. Wide range of accessories including measuring inserts etc. LVDT probes compatible with measuring equipment from other makers available on request. GT 282-A 765. ..9. .8 GT 272 GT272-A Q Q Q Measuring Measuring Bolt retraction Sealing bellows Nominal Maximal nominal N pressure bar 03230061 GT 272 2 10 Pressure (bolt activation) spring (bolt retractiom) Viton 11 max 15 03230053 GT 282 2 10 Pressure (bolt activation) spring (bolt retraction) Viton 11 max 15 03230068 GT 272-A 2 085 Pressure (bolt activation) spring (bolt retraction) Without bellows 10 max 60 03230069 GT 282-A 2 085 Pressure (bolt activation) spring (bolt retraction) Without bellows 10 max 60 Measuring bolt travel mm Max. permissible error for deviations in linearity pm (L in mm) GT 272 103 02 + 3 L3 GT 282 103 02 + 3 L3 GT 272-A 103 02 + 3 L3 GT 282-A 103 02 + 3 L3 Cable output Data Sheet No. 005 005 005 005 pm 005 005 005 005 Axial Radial Axial Radial 03200414 03200390 03200431 03200432 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. DIN 32876 Part 1 See table GT 282 GT 272 Nickel-plated housing. Stainless steel measuring bolt hardened. Viton sealing bellows highly resistant fluoroelastomer Fixing shank A 0 8 mm. Measuring bolt guided on ball-bearing. Distance from electrical zero of both stops is either adjustable (downward) or depending on the position of the lower stop (upward). Interchangeable inserts. M25 thread. Carbide ball tip 0 3 mm. 2 m long cable. 5-pin DIN 45322 connector. Supply frequency 13 kHz ( 5 %) Max. mechanical frequency 60 Hz. o 015 pm C 20 05C -10C to 65C 80 % Protection level IP65 (IEC 60529) IP64 for GT 21 HP Mobile weight 8 g Transport packaging Identification number Inspection report with a declaration of conformity TESA
