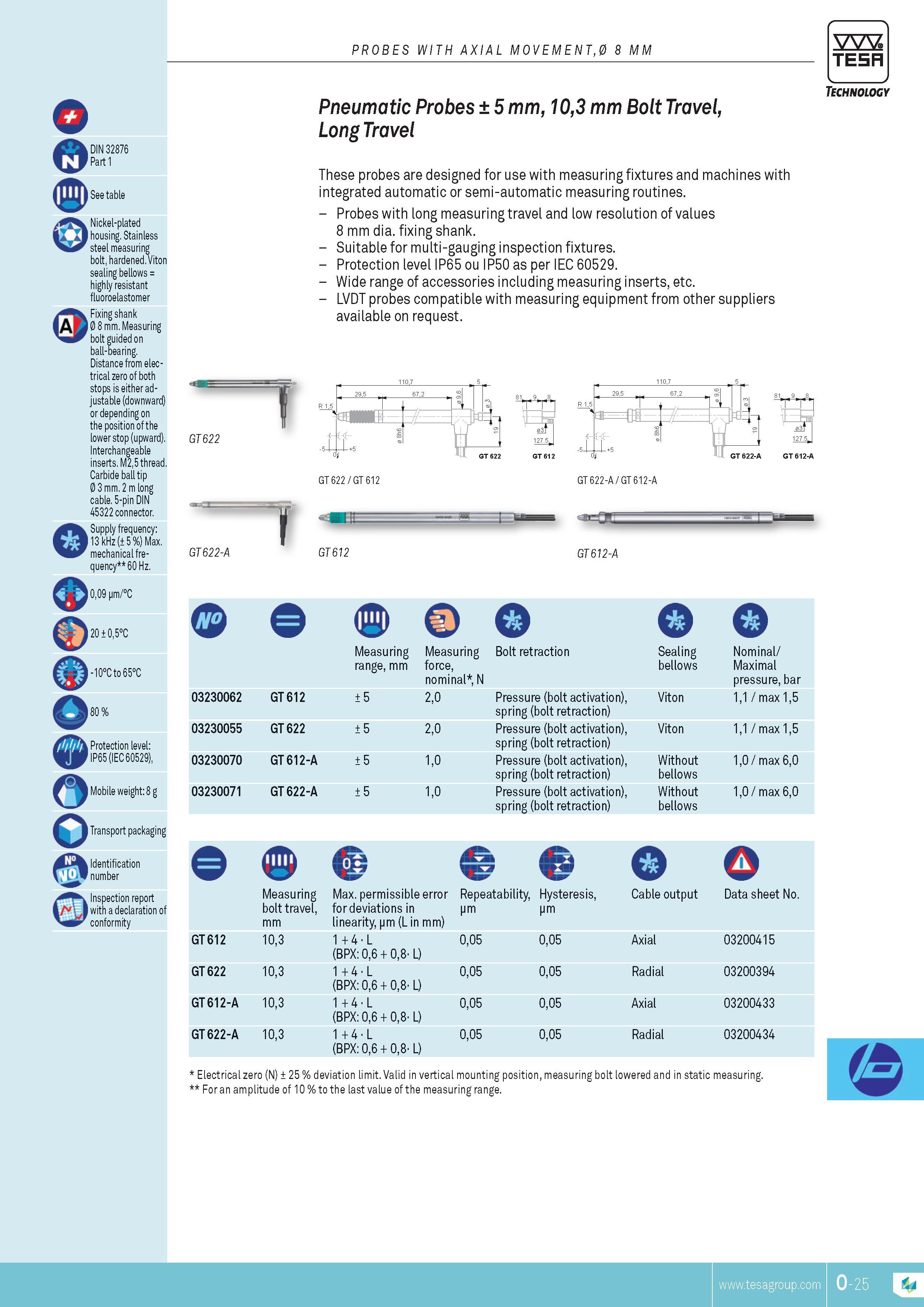

PROBES WITH AXIAL MOVEMENT0 8 MM TESA DIN 32876 Part 1 See table Nickel-plated housing. Stainless steel measuring bolt hardened. Viton sealing bellows highly resistant fluoroelastomer Fixing shank A 0 8 mm. Measuring bolt guided on ball-bearing. Distance from electrical zero of both stops is either adjustable (downward) or depending on the position of the lower stop (upward). Interchangeable inserts. M25 thread. Carbide ball tip 0 3 mm. 2 m long cable. 5-pin DIN 45322 connector. Supply frequency 13 kHz ( 5 %) Max. mechanical frequency 60 Hz. IP o m 009 pm C 20 05C -10C to 65C 80 % Protection level IP65 (IEC 60529) Mobile weight 8 g Transport packaging Identification number Inspection report with a declaration of conformity GT622 GT622-A Pneumatic Probes 5 mm 103 mm Bolt Travel Long Travel These probes are designed for use with measuring fixtures and machines with integrated automatic or semi-automatic measuring routines. Probes with long measuring travel and low resolution of values 8 mm dia. fixing shank. Suitable for multi-gauging inspection fixtures. Protection level IP65 ou IP50 as per IEC 60529. Wide range of accessories including measuring inserts etc. LVDT probes compatible with measuring equipment from other suppliers available on request. Technology N GT 622 GT 612 GT 622-A GT 612-A GT 622 GT 612 GT 612 GT 622-A GT 612-A GT612-A Q Measuring Measuring Bolt retraction Sealing bellows Nominal Maximal nominal N pressure bar 03230062 GT 612 5 20 Pressure (bolt activation) spring (bolt retraction) Viton 11 max 15 03230055 GT 622 5 20 Pressure (bolt activation) spring (bolt retraction) Viton 11 max 15 03230070 GT 612-A 5 10 Pressure (bolt activation) spring (bolt retraction) Without bellows 10 max 60 03230071 GT 622-A 5 10 Pressure (bolt activation) spring (bolt retraction) Without bellows 10 max 60 Measuring Max. permissible error Repeatability Hysteresis bolt travel for deviations in pm pm mm linearity pm (L in mm) GT 612 103 1 + 4 L 005 005 (BPX 06 + 08 L) GT 622 103 1 + 4 L 005 005 (BPX 06 + 08 L) GT 612-A 103 1 + 4 L 005 005 (BPX 06 + 08 L) GT 622-A 103 1 + 4 L 005 005 (BPX 06 + 08 L) Cable output Data sheet No. Axial Radial Axial Radial 03200415 03200394 03200433 03200434 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. R 15 R 15 O
