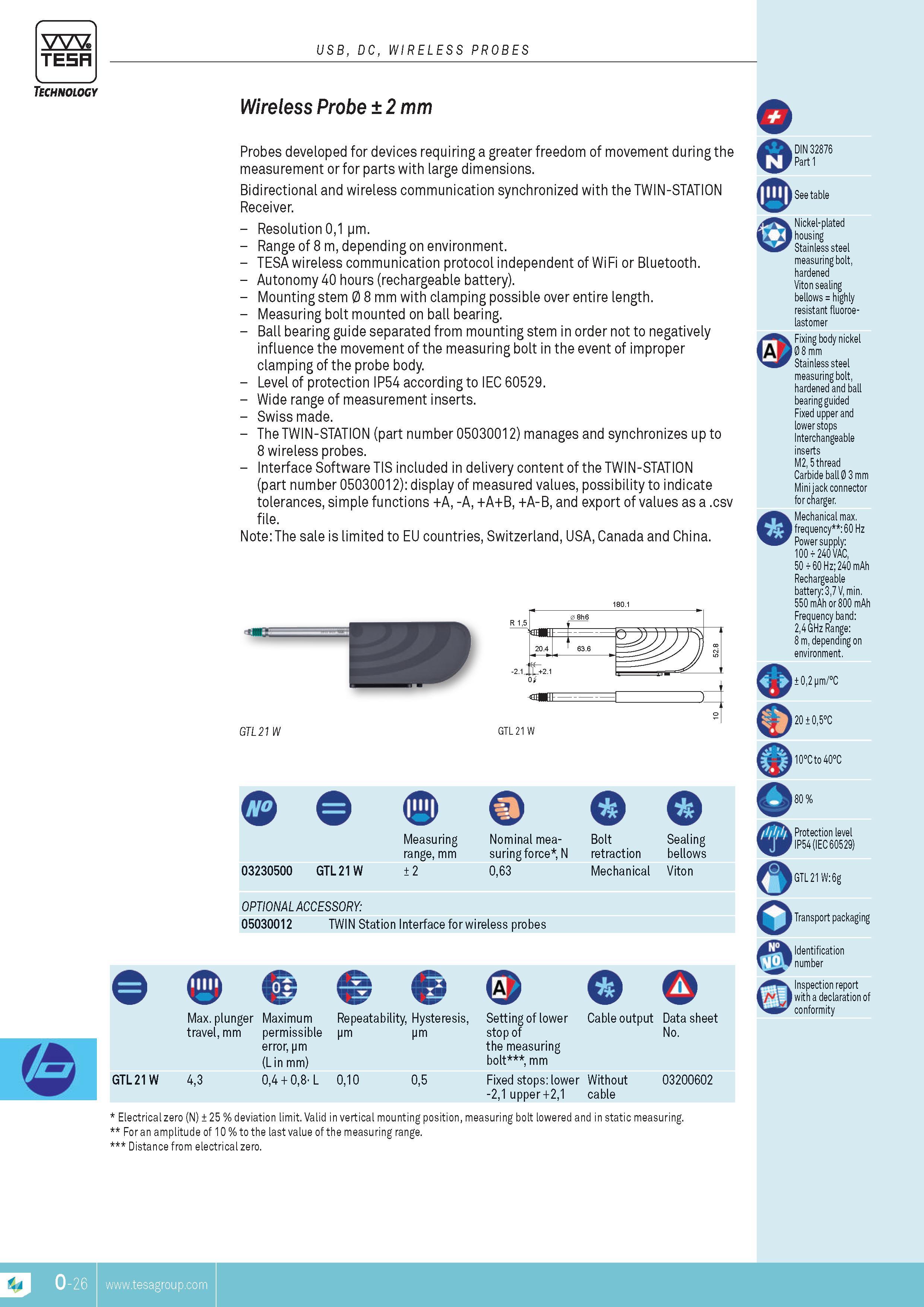

TESA Technology USB DC WIRELESS PROBES Wireless probe 2 mm Probes developed for devices requiring a greater freedom of movement during the MEASUREMENT or for parts with large dimensions. Bidirectional and wireless communication synchronized with the TWIN-STATION Receiver. Resolution 01 pm. Range of 8 m depending on environment. TESA wireless communication protocol independent of WiFi or Bluetooth. Autonomy 40 hours (rechargeable battery). Mounting stem 0 8 mm with clamping possible over entire length. Measuring bolt mounted on ball bearing. Ball bearing guide separated from mounting stem in order not to negatively influence the movement of the measuring bolt in the event of improper clamping of the probe body. Level of protection IP54 according to IEC 60529. Wide range of MEASUREMENT inserts. Swiss made. The TWIN-STATION (part number 05030012) manages and synchronizes up to 8 wireless probes. Interface Software TIS included in delivery content of the TWIN-STATION (part number 05030012) display of measured values possibility to indicate tolerances simple functions +A -A +A+B +A-B and export of values as a .csv file. Note The sale is limited to EU countries Switzerland USA Canada and China. DIN 32876 Part 1 See table Nickel-plated housing Stainless steel measuring bolt hardened Viton sealing bellows highly resistant fluoroe-lastomer Fixing body nickel A 0 8 mm Stainless steel measuring bolt hardened and ball GTL21 W Q 03230500 GTL 21 W Measuring Nominal mea- Bolt Sealing range mm suring force N retraction bellows 2 063 Mechanical Viton OPTIONAL ACCESSORY 05030012 TWIN Station Interface for wireless probes 0 HI e o Fixed upper and lower stops Interchangeable inserts M2 5 thread Carbide ball 0 3 mm Mini jack connector for charger. Mechanical max. frequency 60 Hz Power supply 100 t 240 VAC 50 t 60 Hz; 240 mAh Rechargeable battery 37 V min. 550 mAh or 800 mAh Frequency band 24 GHz Range 8 m depending on environment. 02 pm C 20 05C 10Cto 40C 80 % Protection level IP54 (IEC 60529) GTL21W:6g Transport packaging Identification number GTL 21 W Max. plunger Maximum travel mm permissible error pm (L in mm) 43 04 + 08' L Repeatability Hysteresis pm pm 010 05 Setting of lower Cable output Data sheet stop of No. the measuring bolt mm Fixed stops lower Without 03200602 -21 upper +21 cable Inspection report with a declaration of conformity Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. Distance from electrical zero. TESA
