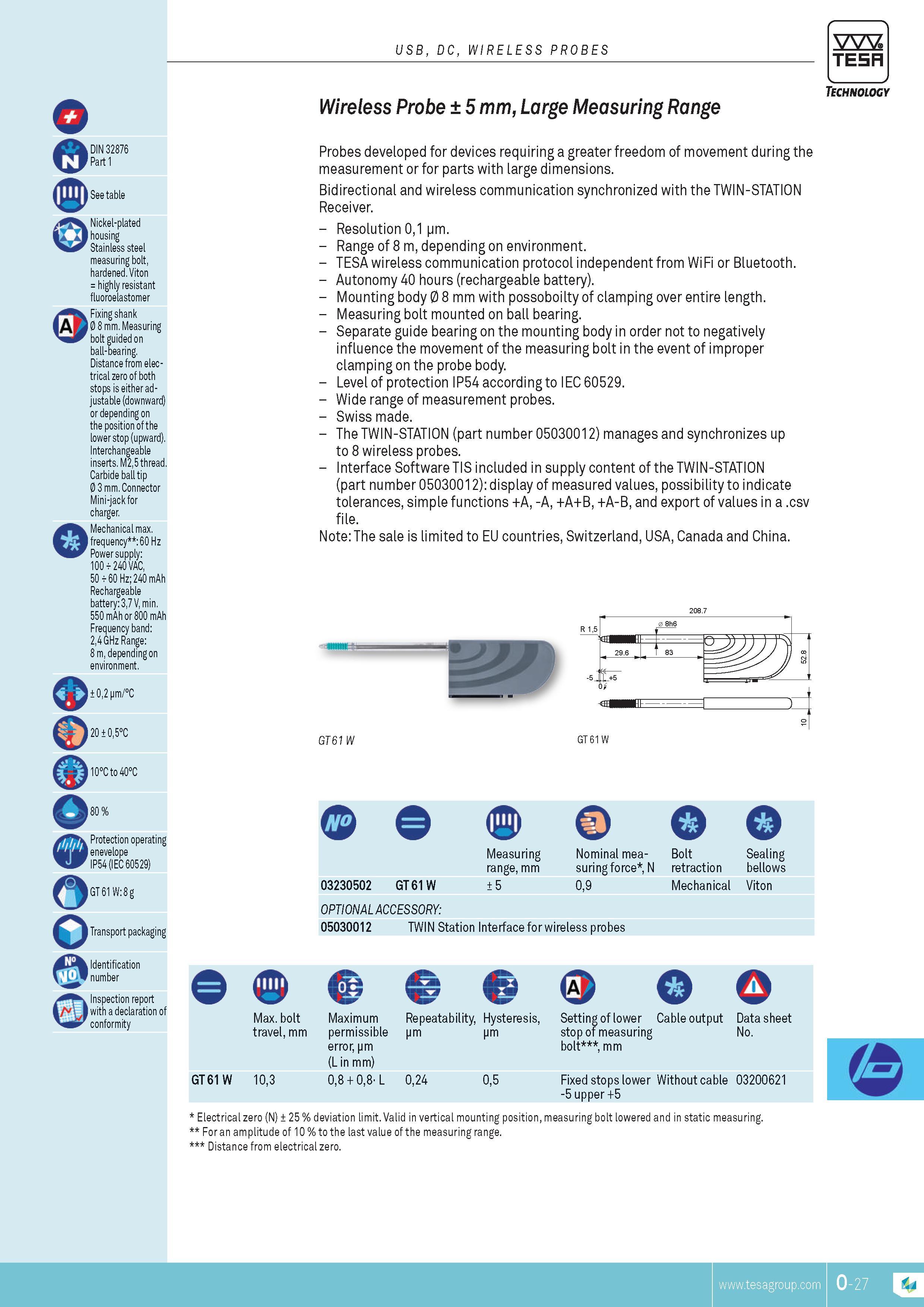

USB DC WIRELESS PROBES TESA Wireless probe 5 mm Large Measuring Range Technology Q DIN 32876 Part 1 I See table Nickel-plated housing Stainless steel measuring bolt hardened. Viton highly resistant fluoroelastomer Fixing shank 0 8 mm. Measuring bolt guided on ball-bearing. Distance from electrical zero of both stops is either adjustable (downward) or depending on the position of the lower stop (upward). Interchangeable inserts. M25 thread. Carbide ball tip 0 3 mm. Connector Mini-jack for charger. Mechanical max. frequency 60 Hz Power supply 100 t 240 VAC 50 t 60 Hz; 240 mAh Rechargeable battery 37 V min. 550 mAh or 800 mAh Frequency band 24 GHz Range 8 mdepending on environment. 02 pm C 20 05C Probes developed for devices requiring a greater freedom of movement during the MEASUREMENT or for parts with large dimensions. Bidirectional and wireless communication synchronized with the TWIN-STATION Receiver. Resolution 01 pm. Range of 8 m depending on environment. TESA wireless communication protocol independent from WiFi or Bluetooth. Autonomy 40 hours (rechargeable battery). Mounting body 0 8 mm with possoboilty of clamping over entire length. Measuring bolt mounted on ball bearing. Separate guide bearing on the mounting body in order not to negatively influence the movement of the measuring bolt in the event of improper clamping on the probe body. Level of protection IP54 according to IEC 60529. Wide range of MEASUREMENT probes. Swiss made. The TWIN-STATION (part number 05030012) manages and synchronizes up to 8 wireless probes. Interface Software TIS included in supply content of the TWIN-STATION (part number 05030012) display of measured values possibility to indicate tolerances simple functions +A -A +A+B +A-B and export of values in a .csv file. Note The sale is limited to EU countries Switzerland USA Canada and China. GT 61 W 10C to 40C Protection operating enevelope IP54 (IEC 60529) GT61W 8g Transport packaging 03230502 GT 61W Measuring range mm 5 Q Q Nominal mea- Bolt suring force N retraction 09 Mechanical Viton Sealing bellows OPTIONAL ACCESSORY 05030012 TWIN Station Interface for wireless probes Identification number Inspection report with a declaration of conformity Max. bolt Maximum Repeatability Hysteresis Setting of lower Cable output Data sheet travel mm permissible pm pm stop of measuring No. error pm bolt mm (L in mm) GT 61 W 103 08 + 08' L 024 05 Fixed stops lower Without cable 03200621 -5 upper+5 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. Distance from electrical zero. O
