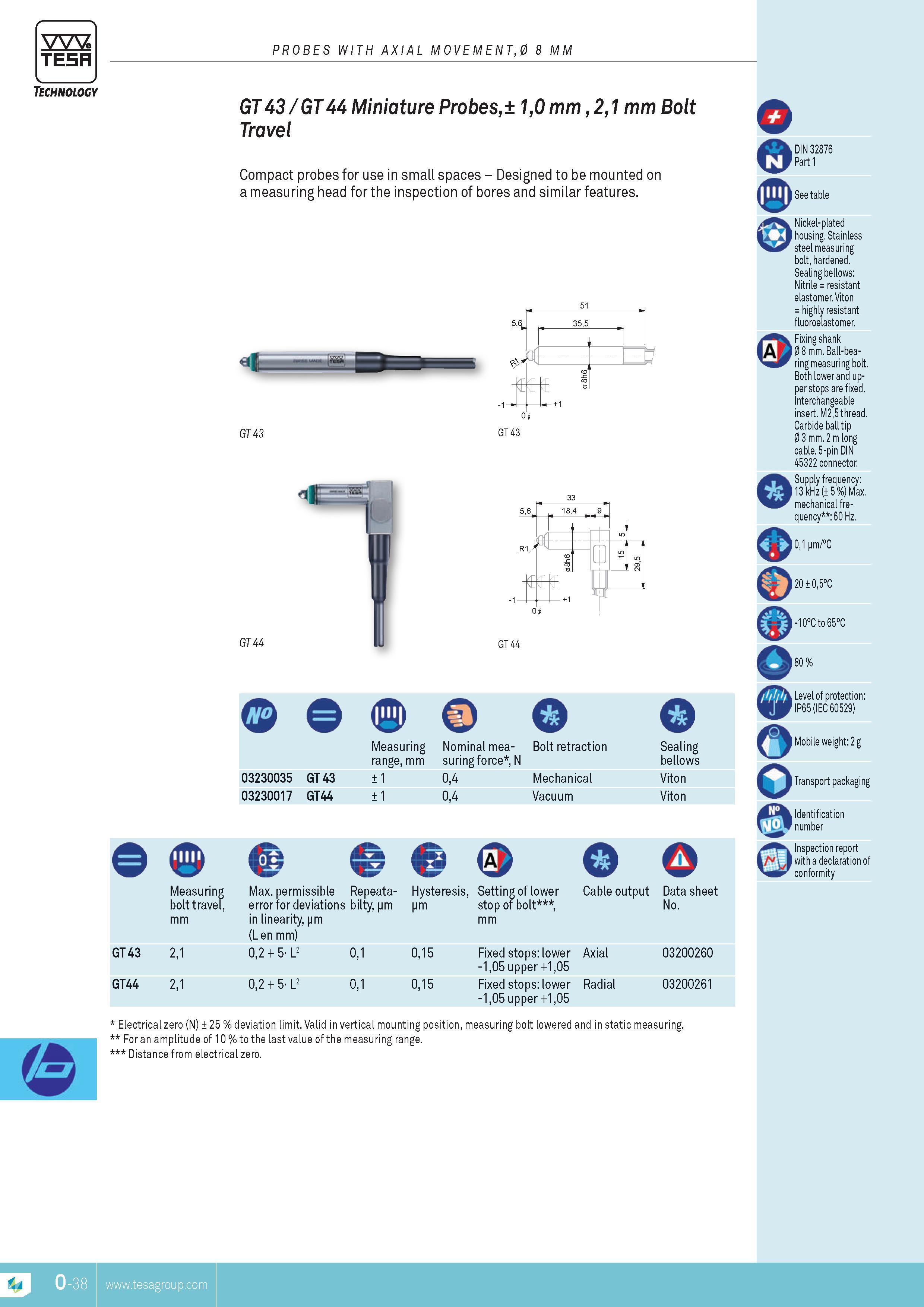

TESA Technology PROBES WITH AXIAL MOVEMENT0 8 MM GT43 GT44 Miniature Probes 10 mm 21 mm Bolt Travel O GT 43 GT44 Compact probes for use in small spaces Designed to be mounted on a measuring head for the inspection of bores and similar features. GT43 GT 43 GT44 -1 GT 44 03230035 GT 43 03230017 GT44 Measuring Nominal mea- Bolt retraction Sealing range mm suring force N bellows 1 04 Mechanical Viton 1 04 Vacuum Viton Measuring bolt travel mm 21 21 in linearity pm (L en mm) 02 + 5' L2 02 + 5' L2 e Repeata-bilty pm Hysteresis pm Setting of lower stop of bolt mm 01 015 Fixed stops lower -105 upper +105 01 015 Fixed stops lower -105 upper +105 03200260 03200261 (S Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. Distance from electrical zero. DIN 32876 Part 1 See table Nickel-plated housing. Stainless steel measuring bolt hardened. Sealing bellows Nitrile resistant elastomer. Viton highly resistant fluoroelastomer. Fixing shank A 0 8 mm. Ball-bearing measuring bolt. Both lower and upper stops are fixed. Interchangeable insert. M25 thread. Carbide ball tip 0 3 mm. 2 m long cable. 5-pin DIN 45322 connector. Supply frequency 13 kHz ( 5 %) Max. mechanical frequency 60 Hz. Q HI e 01 pm C 20 05C 10C to 65C Level of protection IP65 (IEC 60529) Mobile weight 2 g Transport packaging Identification number o Cable output Data sheet No. Inspection report with a declaration of conformity TESA 33 184 9 +1 0
