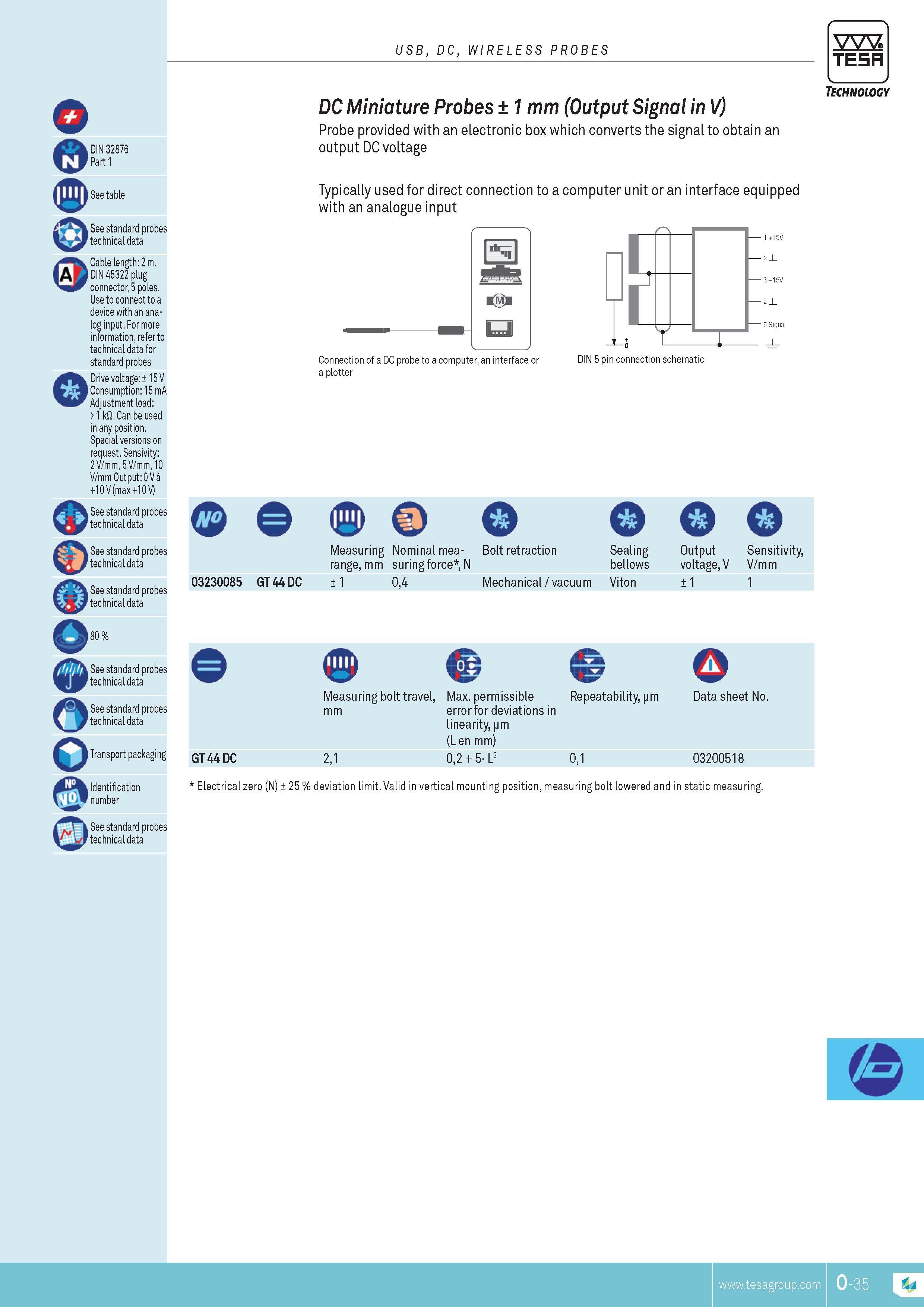

USB DC WIRELESS PROBES TESA o DIN 32876 Part 1 See table Q ip o See standard probes technical data Cable length 2 m. DIN 45322 plug connector 5 poles. Use to connect to a device with an analog input. For more information refer to technical data for standard probes Drive voltage 15 V Consumption 15 mA Adjustment load 1 kQ. Can be used in any position. Special versions on request. Sensivity 2 V mm 5 V mm 10 V mm Output 0 V a +10 V (max +10 V) See standard probes technical data See standard probes technical data See standard probes technical data See standard probes technical data See standard probes technical data Transport packaging Identification number See standard probes technical data Dc Miniature probes 1 mm (output Signal in v) Probe provided with an electronic box which converts the signal to obtain an output DC voltage Typically used for direct connection to a computer unit or an interface equipped with an analogue input Technology Connection of a DC probe to a computer an interface or a plotter DIN 5 pin connection schematic 03230085 GT 44 DC Measuring Nominal mea- Bolt retraction range mm suring force N 1 04 Mechanical vacuum Viton Sealing bellows Output Sensitivity voltage V V mm 1 1 O Measuring bolt travel Max. permissible Repeatability pm Data sheet No. mm error for deviations in linearity pm (L en mm) GT 44 DC 21 02 + 5' L3 01 03200518 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. O
