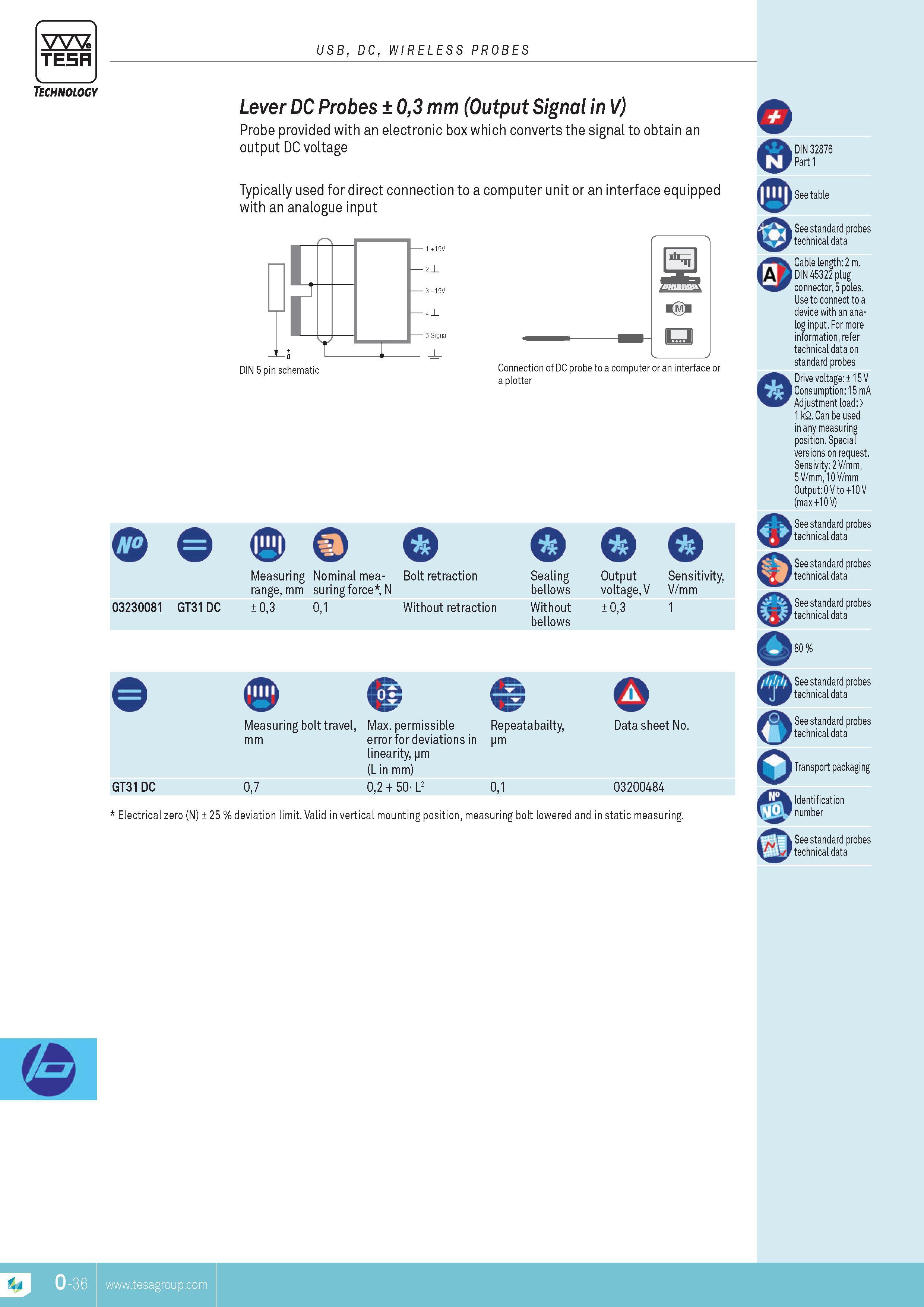

TESA USB DC WIRELESS PROBES Technology Lever DC Probes 03 mm (Output Signal in V) Probe provided with an electronic box which converts the signal to obtain an output DC voltage Typically used for direct connection to a computer unit or an interface equipped with an analogue input I 1 +15V 2 L 3-15V m 4L M 1 im T 1 1 DIN 5 pin schematic Connection of DC probe to a computer or an interface or a plotter Q 0 03230081 GT31 DC Measuring Nominal mea- Bolt retraction range mm suring force N 03 01 Without retraction Sealing bellows Without bellows Output Sensitivity voltage V V mm 03 1 Data sheet No. Measuring bolt travel Max. permissible Repeatabailty mm error for deviations in pm linearity pm (L in mm) GT31 DC 07 02 + 50' L2 01 03200484 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. DIN 32876 Part 1 See table See standard probes technical data Cable length 2 m. A JOIN45322 plug connector 5 poles. Use to connect to a device with an analog input. For more information refer technical data on standard probes Drive voltage 15 V Consumption 15 mA Adjustment load 1 kQ. Can be used in any measuring position. Special versions on request. Sensivity 2 V mm 5 V mm 10 V mm Output 0 V to +10 V (max +10 V) See standard probes technical data 0 o See standard probes technical data See standard probes technical data See standard probes technical data See standard probes technical data Transport packaging Identification number See standard probes technical data
