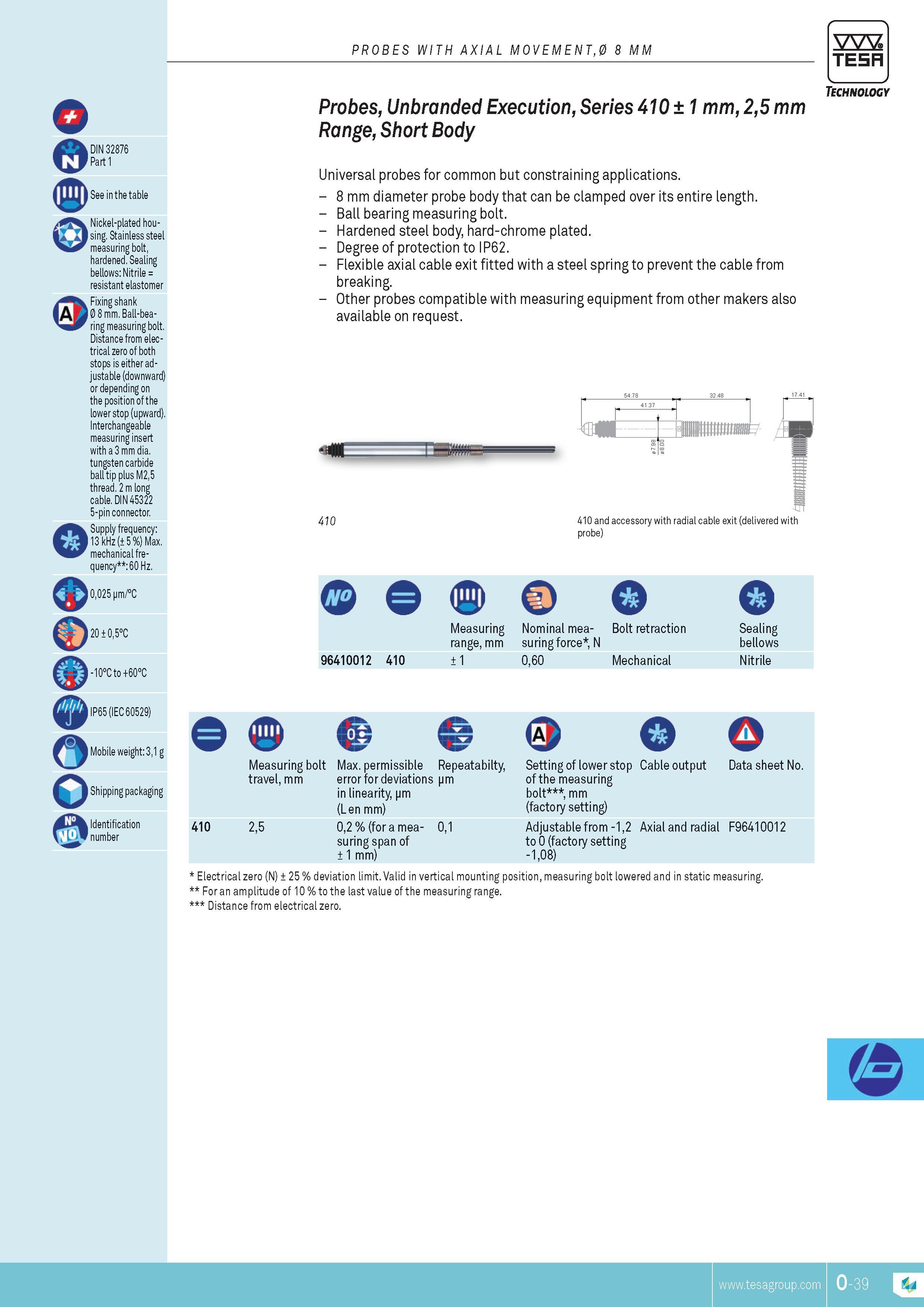

PROBES WITH AXIAL MOVEMENT0 8 MM TESA DIN 32876 Part 1 See in the table Nickel-plated housing. Stainless steel measuring bolt hardened. Sealing bellows Nitrile resistant elastomer Fixing shank 0 8 mm. Ball-bearing measuring bolt. Distance from electrical zero of both stops is either adjustable (downward) or depending on the position of the lower stop (upward). Interchangeable measuring insert with a 3 mm dia. tungsten carbide ball tip plus M25 thread.2 m long cable. DIN 45322 5-pin connector. Supply frequency 13 kHz ( 5 %) Max. mechanical frequency 60 Hz. 0025 pm C 20 05C -10Cto+60C IP65 (IEC 60529) Mobile weight 31 g Shipping packaging Identification number Probes Unbranded Execution Series 410 1 mm 25 mm Range Short Body Universal probes for common but constraining applications. 8 mm diameter probe body that can be clamped over its entire length. Ball bearing measuring bolt. Hardened steel body hard-chrome plated. Degree of protection to IP62. Flexible axial cable exit fitted with a steel spring to prevent the cable from breaking. Other probes compatible with measuring equipment from other makers also available on request. Technology 11111111 IHHHf 111) 1111 llilHII 410 410 and accessory with radial cable exit (delivered with probe) o 96410012 410 Measuring Nominal mea- Bolt retraction range mm suring force N 1 060 Mechanical Sealing bellows Nitrile 410 Measuring bolt travel mm 25 Max. permissible Repeatabilty error for deviations pm in linearity pm (L en mm) 02 % (for a mea- 01 suring span of 1 mm) Setting of lower stop Cable output Data sheet No. of the measuring bolt mm (factory setting) Adjustable from -12 Axial and radial F96410012 to 0 (factory setting -108) Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. Distance from electrical zero. o
