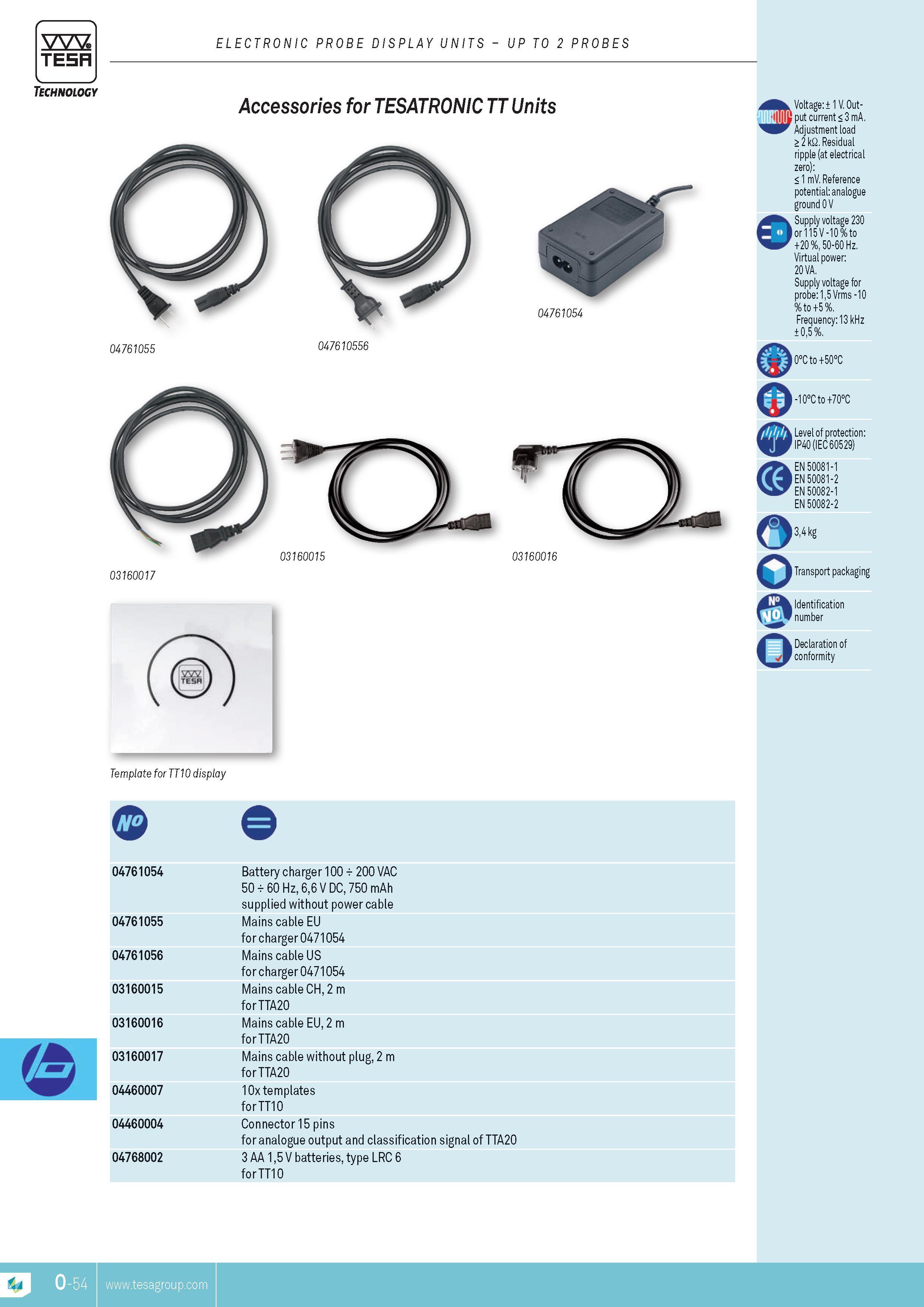

TESA ELECTRONIC PROBE DISPLAY UNITS UP TO 2 PROBES Technology Accessories for TESATRoNIc TT units 03160017 Template for TT10 display Voltage 1 V. Out put current 3 mA. '1 Adjustment load 2 kQ. Residual ripple (at electrical zero) 1 mV. Reference potential analogue ground 0V Supply voltage 230 or 115 V -10 % to +20 % 50-60 Hz. Virtual power 20 VA. Supply voltage for probe 15 Vrms -10 % to +5 %. Frequency 13 kHz 05 %. 0Cto+50C -10C to +70C fUlIUk Level of protection IP40 (IEC 60529) EN 50081-1 EN 50081-2 EN 50082-1 EN 50082-2 34 kg Transport packaging Identification number Declaration of conformity o CD o 04761054 Battery charger 100 + 200 VAC 50 + 60 Hz 66 V DC 750 mAh supplied without power cable 04761055 Mains cable EU for charger 0471054 04761056 Mains cable US for charger 0471054 03160015 Mains cable CH 2 m for TTA20 03160016 Mains cable EU 2 m for TTA20 03160017 Mains cable without plug 2 m for TTA20 04460007 10x templates for TT10 04460004 Connector 15 pins for analogue output and classification signal of TTA20 04768002 3 AA 15 V batteries type LRC 6 for TT10
