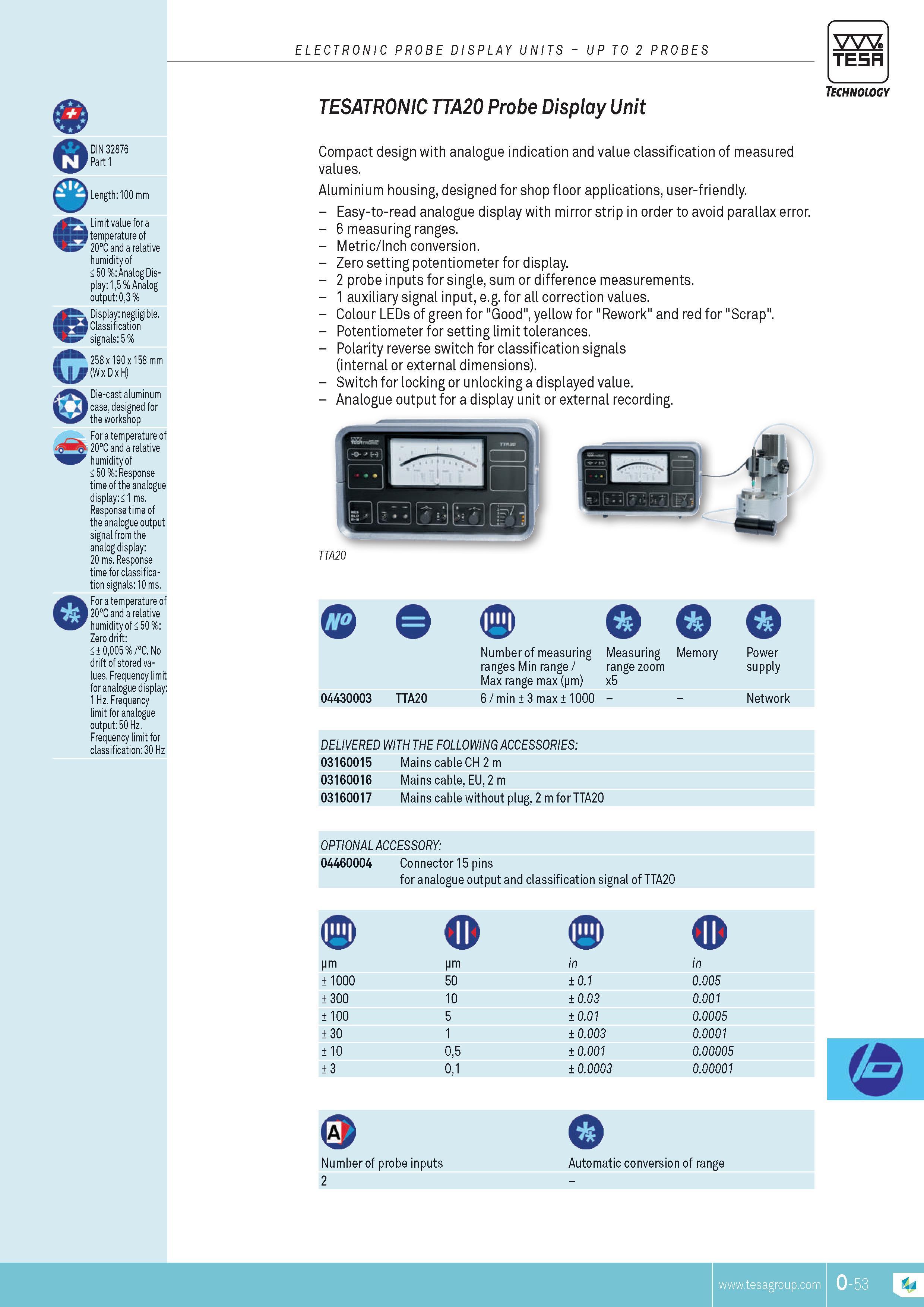

ELECTRONIC PROBE DISPLAY UNITS UP TO 2 PROBES TESA DIN 32876 Part 1 Length 100 mm Limit value for a temperature of 20C and a relative humidity of 50 % Analog Display 15 % Analog output:03 % Display negligible. Classification signals 5 % 258 x 190 x 158 mm (W x D x H) Die-cast aluminum case designed for the workshop For a temperature of 20C and a relative humidity of 50 %:Response time of the analogue display 1 ms. Response time of the analogue output signal from the analog display 20 ms. Response time for classification signals 10 ms. For a temperature of 20C and a relative humidity of 50 % Zero drift 0005 % C. No drift of stored values. Frequency limit for analogue display 1 Hz. Frequency limit for analogue output 50 Hz. Frequency limit for classification 30 Hz Technology TESATRoNic TTA20 probe Display unit Compact design with analogue indication and value classification of measured values. Aluminium housing designed for shop floor applications user-friendly. Easy-to-read analogue display with mirror strip in order to avoid parallax error. 6 measuring ranges. Metric Inch conversion. Zero setting potentiometer for display. 2 probe inputs for single sum or difference MEASUREMENTs. 1 auxiliary signal input e.g. for all correction values. Colour LEDs of green for "Good" yellow for "Rework" and red for "Scrap". Potentiometer for setting limit tolerances. Polarity reverse switch for classification signals (internal or external dimensions). Switch for locking or unlocking a displayed value. Analogue output for a display unit or external recording. TTA20 04430003 TTA20 Number of measuring Measuring ranges Min range range zoom Max range max (pm) x5 6 min 3 max 1000 Memory Power supply Network DELIVERED WITH THE FOLLOWING ACCESSORIES 03160015 Mains cable CH 2 m 03160016 Mains cable EU 2 m 03160017 Mains cable without plug 2 m for TTA20 OPTIONAL ACCESSORY 04460004 Connector 15 pins for analogue output and classification signal of TTA20 O pm pm in in 1000 50 0.1 0.005 300 10 0.03 0.001 100 5 0.01 0.0005 30 1 0.003 0.0001 10 05 0.001 0.00005 3 01 0.0003 0.00001 0 Q Number of probe inputs Automatic conversion of range 2 O
