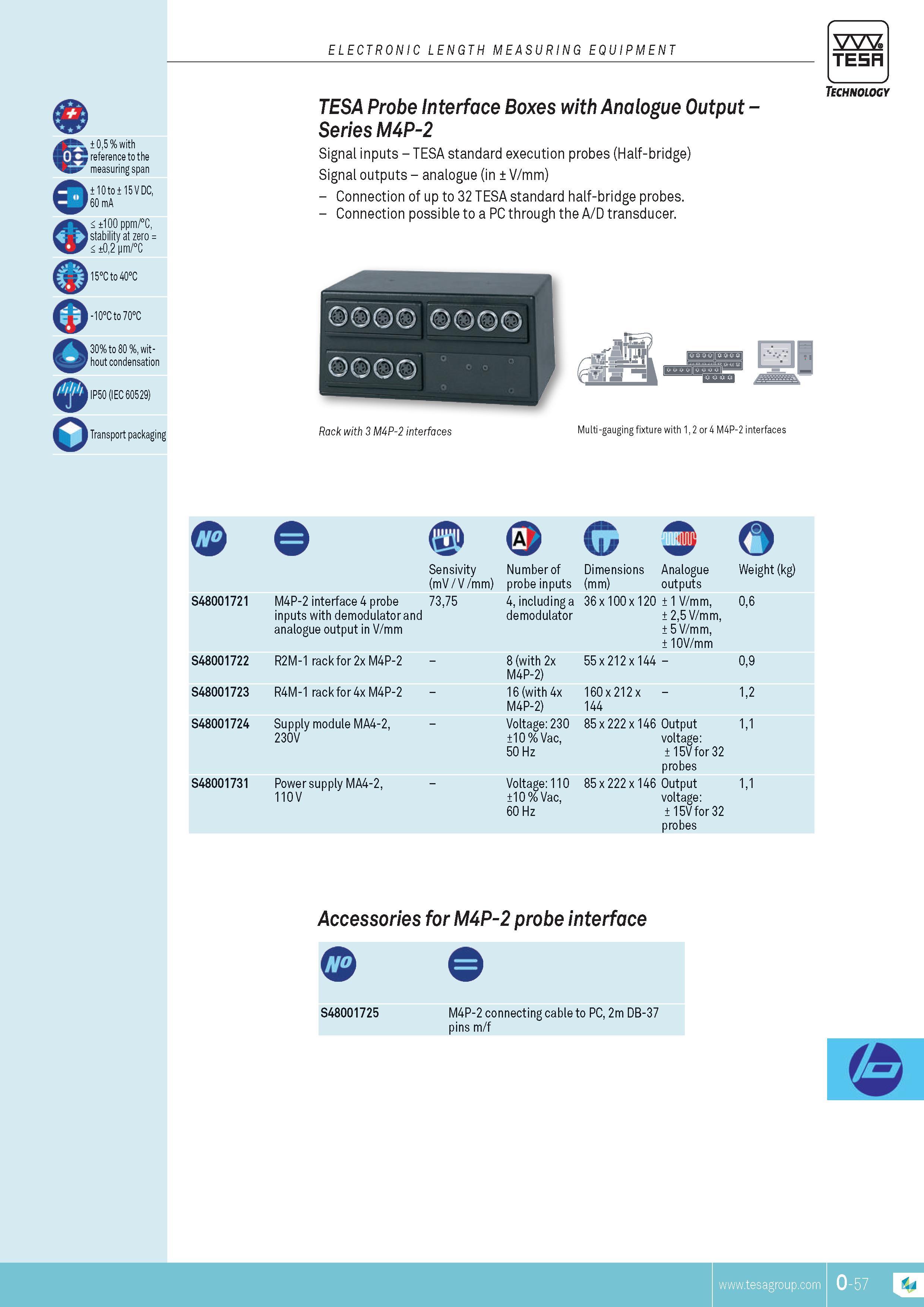

ELECTRONIC LENGTH MEASURING EQUIPMENT m o m 05 % with reference to the measuring span 10 to 15 V DC 60 mA 100 ppm C stability at zero 02 p C 15C to 40C -10C to70C 30% to 80 % without condensation IP50 (IEC 60529) Transport packaging TESA probe interface Boxes with Analogue output Series M4p-2 Signal inputs TESA standard execution probes (Half-bridge) Signal outputs analogue (in V mm) Connection of up to 32 TESA standard half-bridge probes. Connection possible to a PC through the A D transducer. TESA Technology Rack with 3 M4P-2 interfaces Multi-gauging fixture with 1 2 or 4 M4P-2 interfaces 548001721 548001722 548001723 548001724 S48001731 Sensivity (mV V mm) M4P-2 interface 4 probe 7375 inputs with demodulator and analogue output in V mm R2M-1 rack for 2x M4P-2 R4M-1 rack for 4x M4P-2 Supply module MA4-2 230V Power supply MA4-2 110 V C 3 O Number of Dimensions Analogue Weight (kg) probe inputs (mm) outputs 4 including a 36 x 100 x 120 1 V mm 06 demodulator 25 V mm 5 V mm 10V mm 8 (with 2x 55 x 212 x 144 09 M4P-2) 16 (with 4x 160 x 212 x 12 M4P-2) 144 Voltage 230 85 x 222 x 146 Output 11 10 % Vac voltage 50 Hz 15V for 32 probes Voltage 110 85 x 222 x 146 Output 11 10 % Vac voltage 60 Hz 15V for 32 probes Accessories for M4p-2 probe interface o S48001725 M4P-2 connecting cable to PC 2m DB-37 pins m f O
