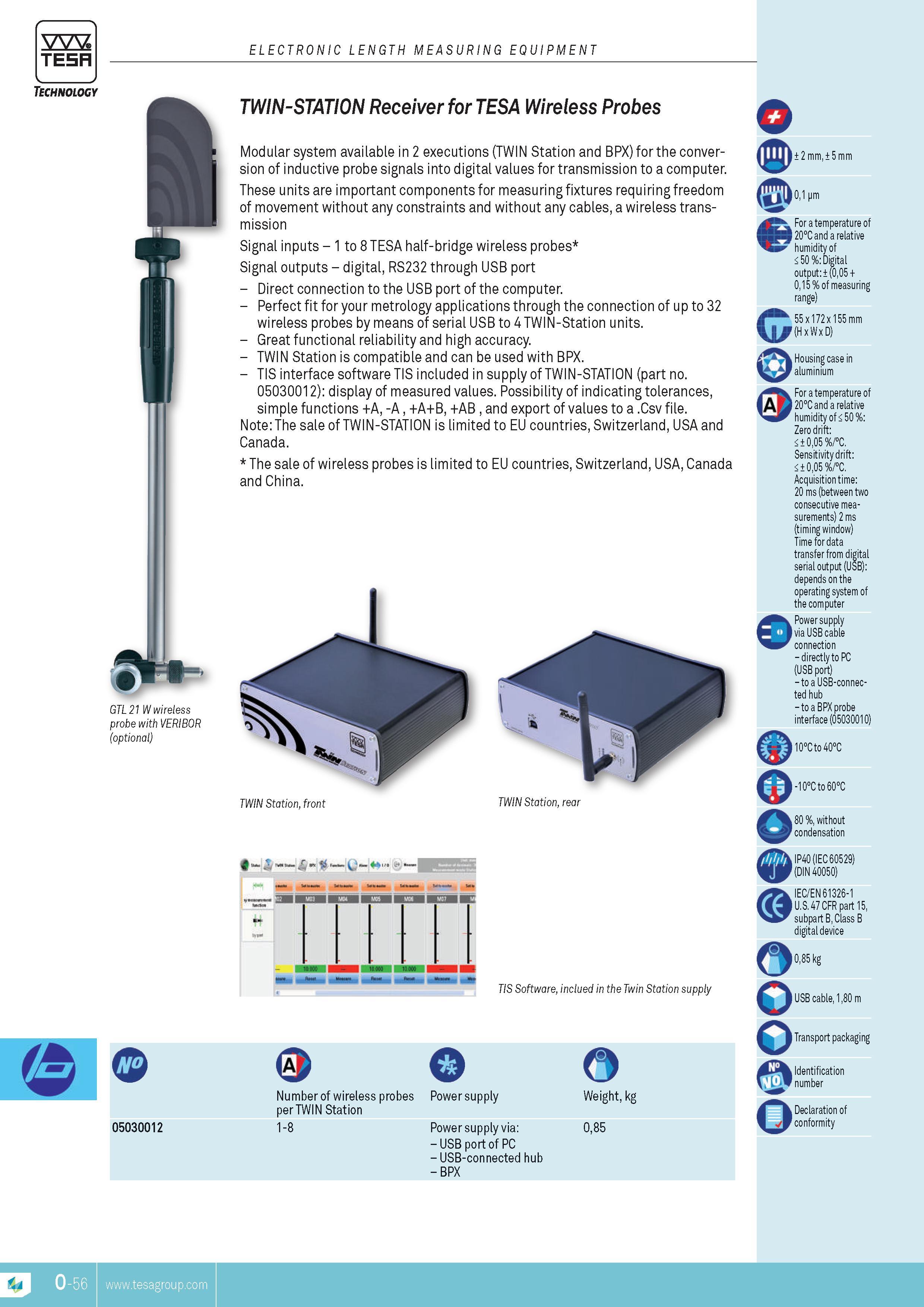

TESA electronic length measuring equipment Technology GTL 21 W wireless probe with VERIBOR (optional) TWiN-STATioN receiver for TESA Wireless probes Modular system available in 2 executions (TWIN Station and BPX) for the conversion of inductive probe signals into digital values for transmission to a computer. These units are important components for measuring fixtures requiring freedom of movement without any constraints and without any cables a wireless transmission Signal inputs 1 to 8 TESA half-bridge wireless probes Signal outputs digital RS232 through USB port Direct connection to the USB port of the computer. Perfect fit for your metrology applications through the connection of up to 32 wireless probes by means of serial USB to 4 TWIN-Station units. Great functional reliability and high accuracy. TWIN Station is compatible and can be used with BPX. TIS interface software TIS included in supply of TWIN-STATION (part no. 05030012) display of measured values. Possibility of indicating tolerances simple functions +A -A +A+B +AB and export of values to a .Csv file. Note The sale of TWIN-STaTiON is limited to EU countries Switzerland USA and Canada. The sale of wireless probes is limited to EU countries Switzerland USA Canada and China. TWIN Station front TWIN Station rear TIS Software inclued in the Twin Station supply o 2 mm 5 mm 01 pm i G For a temperature of 20C and a relative humidity of 50 % Digital output (005 + 015 % of measuring range) 55 x 172 x 155 mm (H x W x D) Housing case in aluminium For a temperature of A 20C and a relative humidity of 50 % Zero drift 005 % C. Sensitivity drift 005 % C. Acquisition time 20 ms (between two consecutive MEASUREMENTs) 2 ms (timing window) Time for data transfer from digital serial output (USB) depends on the operating system of the computer Power supply via USB cable connection directly to PC (USB port) to a USB-connec-ted hub to a BPX probe interface (05030010) 10C to 40C Number of wireless probes per TWIN Station Power supply Weight kg 05030012 1-8 Power supply via USB port of PC USB-connected hub BPX 085 & 0 -10C to60C 80 % without condensation IP40 (IEC 60529) IEC EN 61326-1 U.S. 47 CFR part 15 subpart B Class B digital device 085 kg USB cable 180 m Transport packaging Identification number Declaration of conformity TESA
