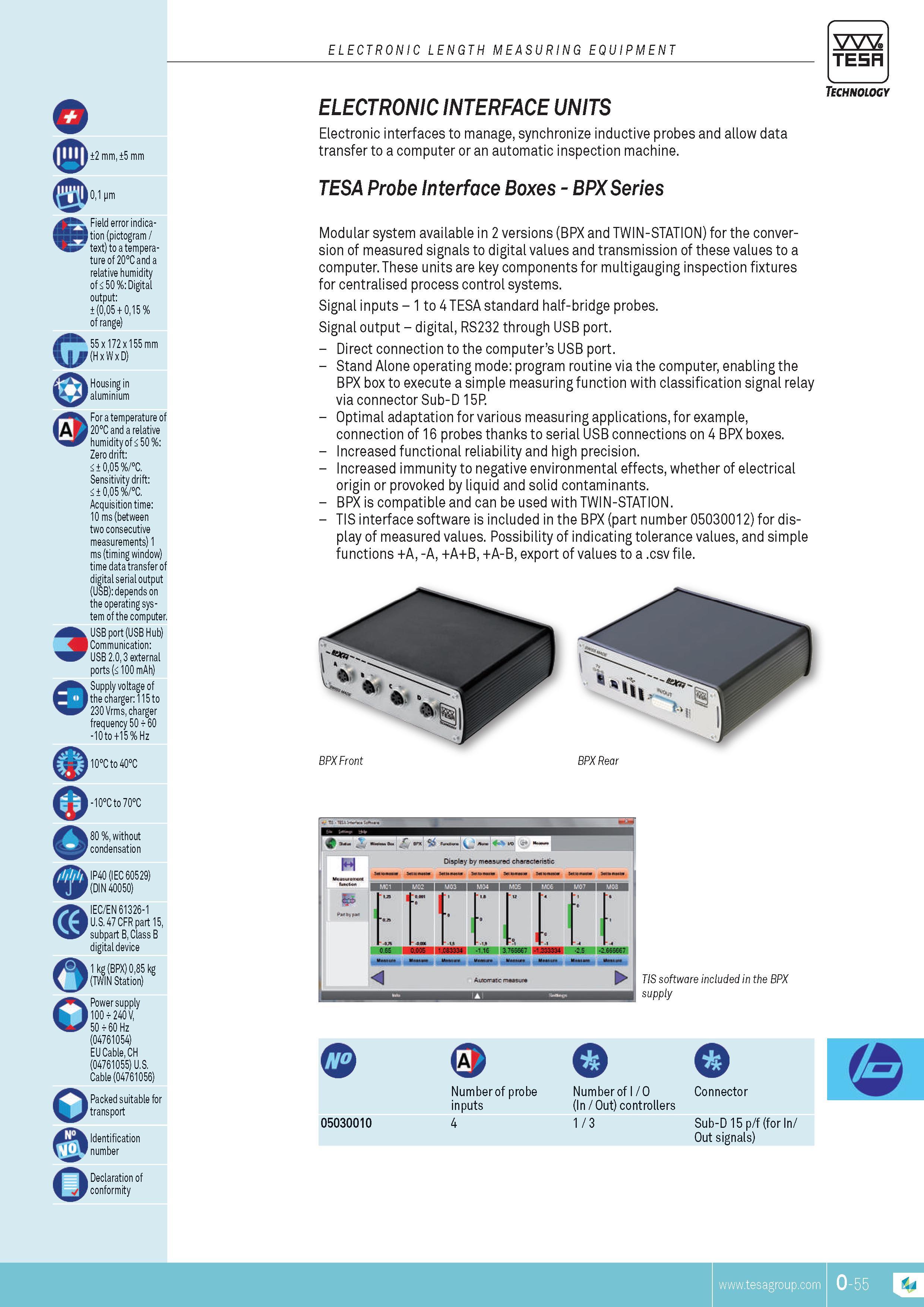

electronic length measuring equipment TESA 2 mm 5 mm 01 pm Field error indication (pictogram text) to a temperature of 20C and a relative humidity of 50 % Digital output (005 + 015 % of range) 55 x 172 x 155 mm (H x W x D) Housing in aluminium For a temperature of 20C and a relative humidity of 50 % Zero drift 005 % C. Sensitivity drift 005 % C. Acquisition time 10 ms (between two consecutive MEASUREMENTs) 1 ms (timing window) time data transfer of digital serial output (USB) depends on the operating system of the computer. USB port (USB Hub) Communication USB 2.0 3 external ports ( 100 mAh) Supply voltage of the charger 115 to 230 Vrms charger frequency 50 t 60 -10 to +15 % Hz 10C to 40C -10C to70C 80 % without condensation IP40 (IEC 60529) (DIN 40050) IEC EN 61326-1 U.S. 47 CFR part 15 subpart B Class B digital device 1 kg (BPX) 085 kg (TWIN Station) Power supply 100 t 240 V 50 t60 Hz (04761054) EU Cable CH (04761055) U.S. Cable (04761056) Packed suitable for transport Identification number Declaration of conformity Technology electronic interface units Electronic interfaces to manage synchronize inductive probes and allow data transfer to a computer or an automatic inspection machine. TESA probe Interface Boxes BpXSeries Modular system available in 2 versions (BPX and TWIN-STATION) for the conversion of measured signals to digital values and transmission of these values to a computer. These units are key components for multigauging inspection fixtures for centralised process control systems. Signal inputs 1 to 4 TESA standard half-bridge probes. Signal output digital RS232 through USB port. Direct connection to the computers USB port. Stand Alone operating mode program routine via the computer enabling the BPX box to execute a simple measuring function with classification signal relay via connector Sub-D 15P. Optimal adaptation for various measuring applications for example connection of 16 probes thanks to serial USB connections on 4 BPX boxes. Increased functional reliability and high precision. Increased immunity to negative environmental effects whether of electrical origin or provoked by liquid and solid contaminants. BPX is compatible and can be used with TWIN-STATION. TIS interface software is included in the BPX (part number 05030012) for display of measured values. Possibility of indicating tolerance values and simple functions +A -A +A+B +A-B export of values to a .csv file. BPX Front BPX Rear TIS software included in the BPX supply Q Q Number of probe inputs Number of I O (In Out) controllers Connector 05030010 4 1 3 Sub-D 15 p f (for In Out signals)
