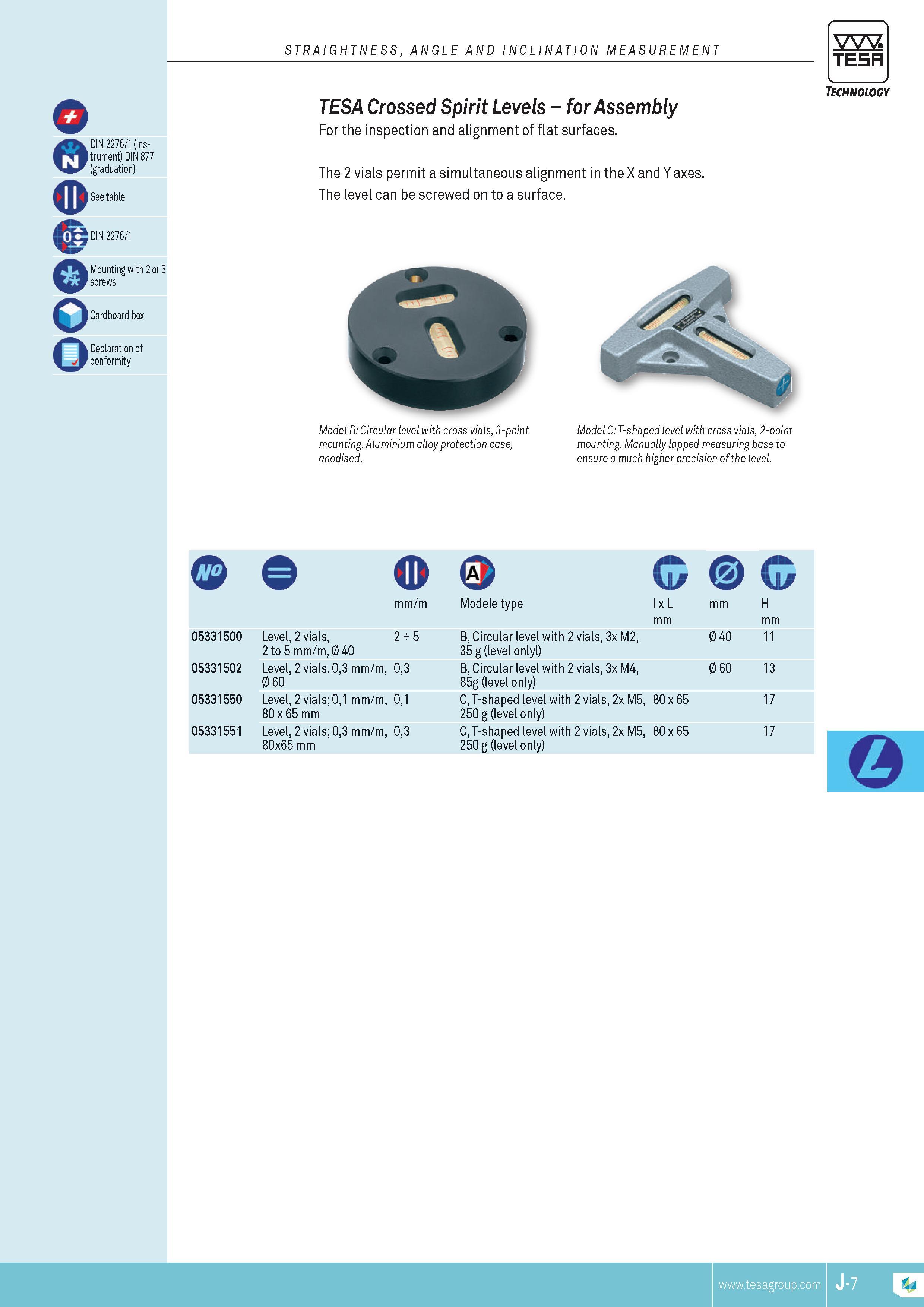

straightness angle and inclination MEASUREMENT TESA 2276 1 (instrument) DIN 877 See table DIN 2276 1 Mounting with 2 or 3 screws Cardboard box Declaration of conformity TESA Crossed Spirit Levels for Assembly For the inspection and alignment of flat surfaces. The 2 vials permit a simultaneous alignment in the X and Y axes. The level can be screwed on to a surface. Technology Model B Circular level with cross vials 3-point mounting. Aluminium alloy protection case anodised. Model C T-shaped level with cross vials 2-point mounting. Manually lapped measuring base to ensure a much higher precision of the level. 05331500 Level 2 vials 2 t 5 2 to 5 mm m 0 40 05331502 Level 2 vials. 03 mm m 03 0 60 05331550 Level 2 vials; 01 mm m 01 80 x 65 mm 05331551 Level 2 vials; 03 mm m 03 80x65 mm G G mm m Modele type I x L B Circular level with 2 vials 3x M2 35 g (level onlyl) B Circular level with 2 vials 3x M4 85g (level only) C T-shaped level with 2 vials 2x M5 80 x 65 250 g (level only) C T-shaped level with 2 vials 2x M5 80 x 65 250 g (level only) 0 40 0 60 H mm 11 13 17 17 0 TESA mm mm
