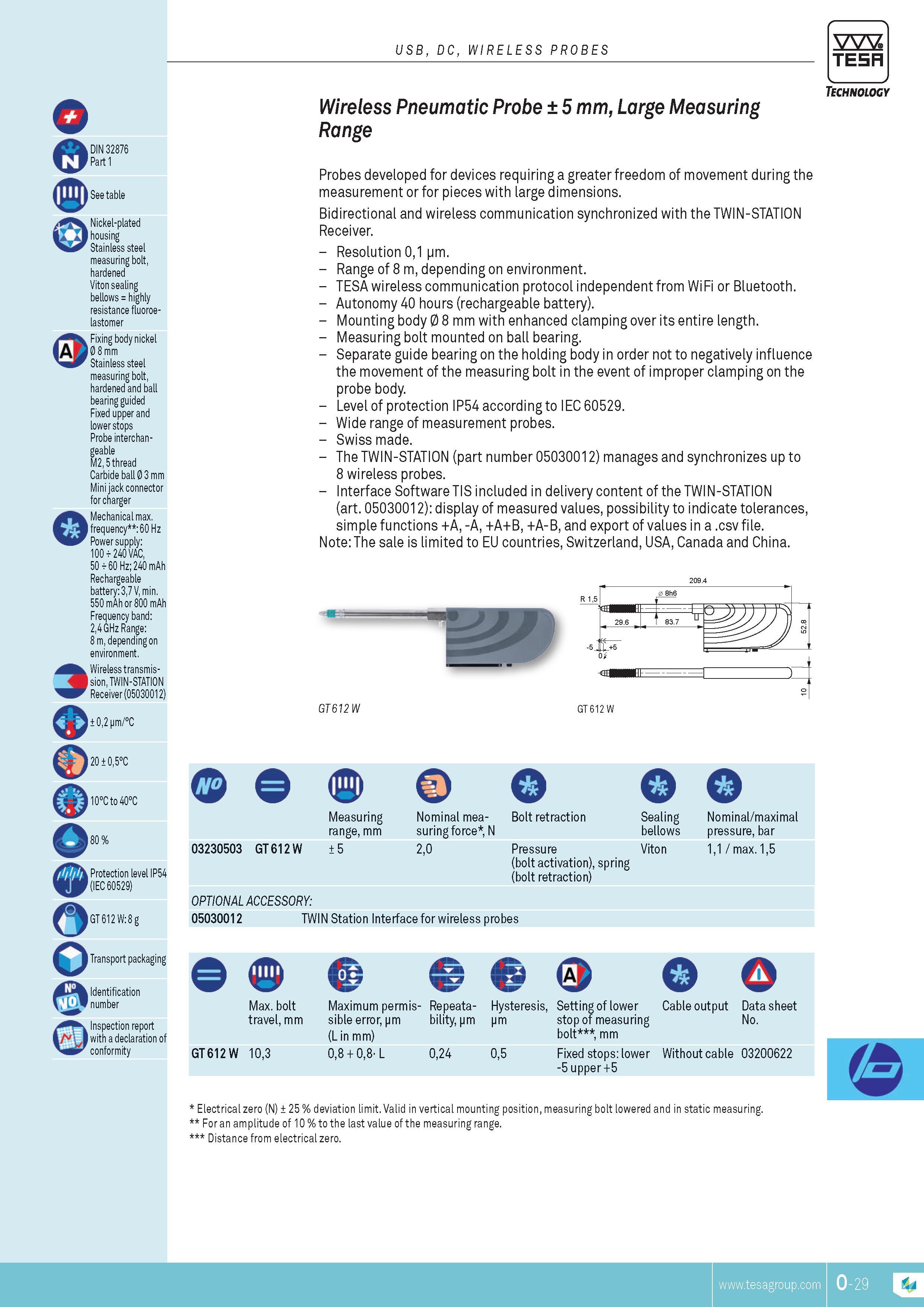

USB DC WIRELESS PROBES TESA DIN 32876 Part 1 See table Nickel-plated housing Stainless steel measuring bolt hardened Viton sealing bellows highly resistance fluoroe-lastomer Fixing body nickel A 0 8 mm Stainless steel measuring bolt hardened and ball Fixed upper and lower stops Probe interchan- Q 3 IP o m 5 thread Carbide ball 0 3 mm Mini jack connector for charger Mechanical max. frequency 60 Hz Power supply 100 t 240 VAC 50 t 60 Hz; 240 mAh Rechargeable battery 37 V min. 550 mAh or 800 mAh Frequency band 24 GHz Range 8 mdepending on environment. Wireless transmission TWIN-STATION Receiver (05030012) 02 pm C 20 05C 10C to 40C Protection level IP54 (IEC 60529) GT612W 8g Transport packaging Identification number Inspection report with a declaration of conformity Wireless pneumatic probe 5 mm Large Measuring Range Probes developed for devices requiring a greater freedom of movement during the MEASUREMENT or for pieces with large dimensions. Bidirectional and wireless communication synchronized with the TWIN-STATION Receiver. Resolution 01 pm. Range of 8 m depending on environment. TESA wireless communication protocol independent from WiFi or Bluetooth. Autonomy 40 hours (rechargeable battery). Mounting body 0 8 mm with enhanced clamping over its entire length. Measuring bolt mounted on ball bearing. Separate guide bearing on the holding body in order not to negatively influence the movement of the measuring bolt in the event of improper clamping on the probe body. Level of protection IP54 according to IEC 60529. Wide range of MEASUREMENT probes. Swiss made. The TWIN-STATION (part number 05030012) manages and synchronizes up to 8 wireless probes. Interface Software TIS included in delivery content of the TWIN-STATION (art. 05030012) display of measured values possibility to indicate tolerances simple functions +A -A +A+B +A-B and export of values in a .csv file. Note The sale is limited to EU countries Switzerland USA Canada and China. Technology GT612 W QO Measuring range mm 03230503 GT 612 W 5 Q Q Q Nominal measuring force N 20 Bolt retraction Sealing bellows Pressure Viton (bolt activation) spring (bolt retraction) Nominal maximal pressure bar 11 max. 15 OPTIONAL ACCESSORY 05030012 TWIN Station Interface for wireless probes Max. bolt travel mm A ) Maximum permis- Repeata- Hysteresis Setting of lower Cable output Data sheet sible error pm bility pm pm stop of measuring No. (L in mm) bolt mm GT 612 W 103 08 + 08' L 024 05 Fixed stops lower Without cable 03200622 -5 upper +5 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. Distance from electrical zero. o O
