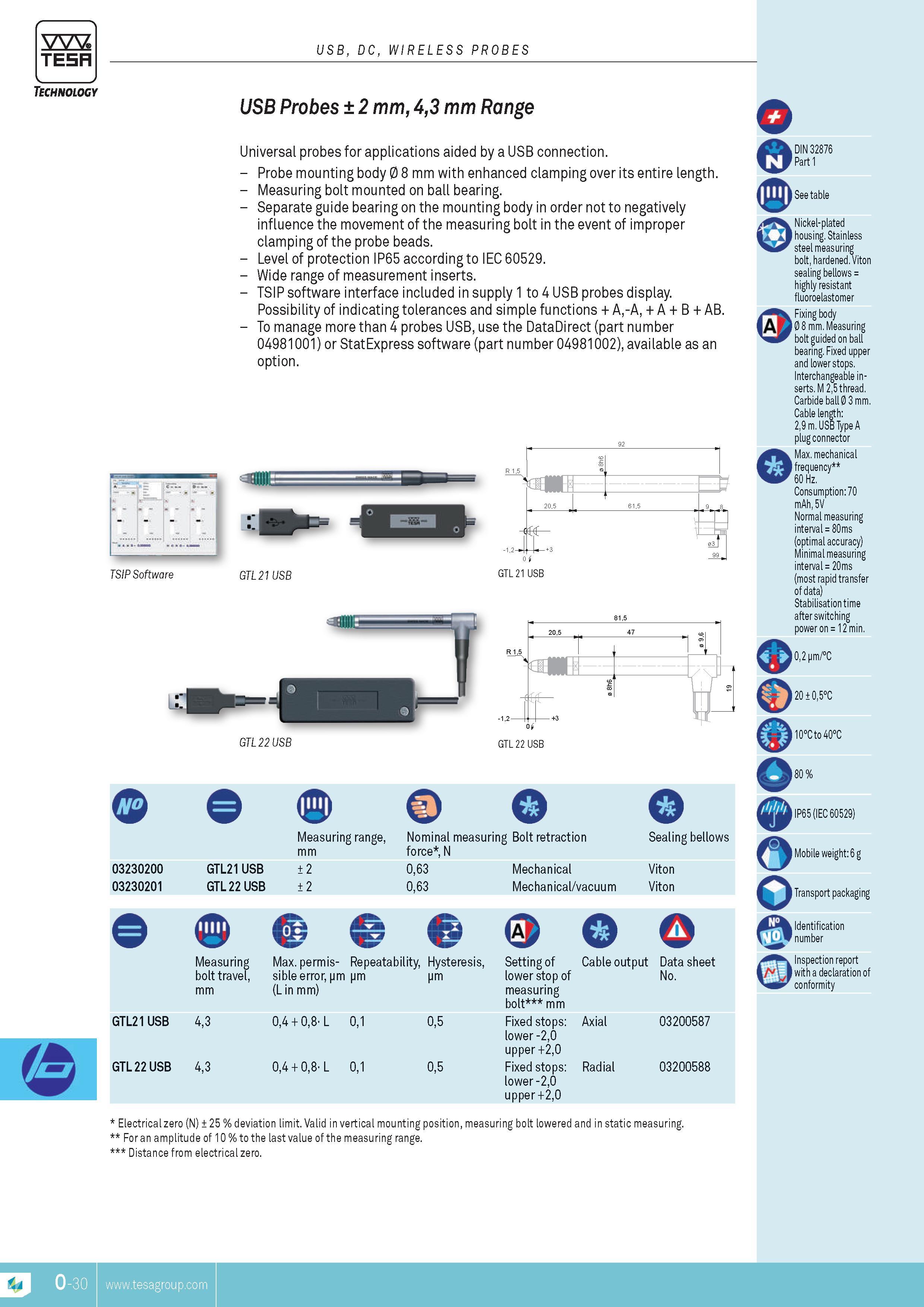

TESA Technology TSIP Software USB DC WIRELESS PROBES USB Probes 2 mm 43 mm Range Universal probes for applications aided by a USB connection. Probe mounting body 0 8 mm with enhanced clamping over its entire length. Measuring bolt mounted on ball bearing. Separate guide bearing on the mounting body in order not to negatively influence the movement of the measuring bolt in the event of improper clamping of the probe beads. Level of protection IP65 according to IEC 60529. Wide range of MEASUREMENT inserts. TSIP software interface included in supply 1 to 4 USB probes display. Possibility of indicating tolerances and simple functions + A-A + A + B + AB. To manage more than 4 probes USB use the DataDirect (part number 04981001) or StatExpress software (part number 04981002) available as an option. 03 T GTL21 USB 0i GTL 21 USB GTL 22 USB 03230200 03230201 Measuring range Nominal measuring Bolt retraction Sealing bellows mm force N GTL21 USB 2 063 Mechanical Viton GTL 22 USB 2 063 Mechanical vacuum Viton Cable output Data sheet No. (S GTL21 USB GTL22 USB 0 Measuring bolt travel mm Max. permissible error pm (L in mm) Repeatability pm Hysteresis pm 43 04 + 08 L 01 05 43 04 + 08 L 01 05 lower stop of measuring bolt mm Fixed stops Axial lower -20 upper +20 Fixed stops Radial lower -20 upper +20 o DIN 32876 Part 1 See table Q Nickel-plated housing. Stainless steel measuring bolt hardened. Viton sealing bellows highly resistant fluoroelastomer Fixing body 0 8 mm. Measuring bolt guided on ball bearing. Fixed upper and lower stops. Interchangeable inserts. M 25 thread. Carbide ball 0 3 mm. Cable length 29 m. USB Type A plug connector Max. mechanical frequency 60 Hz. Consumption 70 mAh 5V Normal measuring interval 80ms (optimal accuracy) Minimal measuring interval 20ms (most rapid transfer 0 HI e Stabilisation time after switching power on 12 min. 02 pm C 20 05C 10C to 40C IP65 (IEC 60529) Mobile weight 6 g Transport packaging Identification number Inspection report with a declaration of conformity 03200587 03200588 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. Distance from electrical zero. TESA 92 R 15
