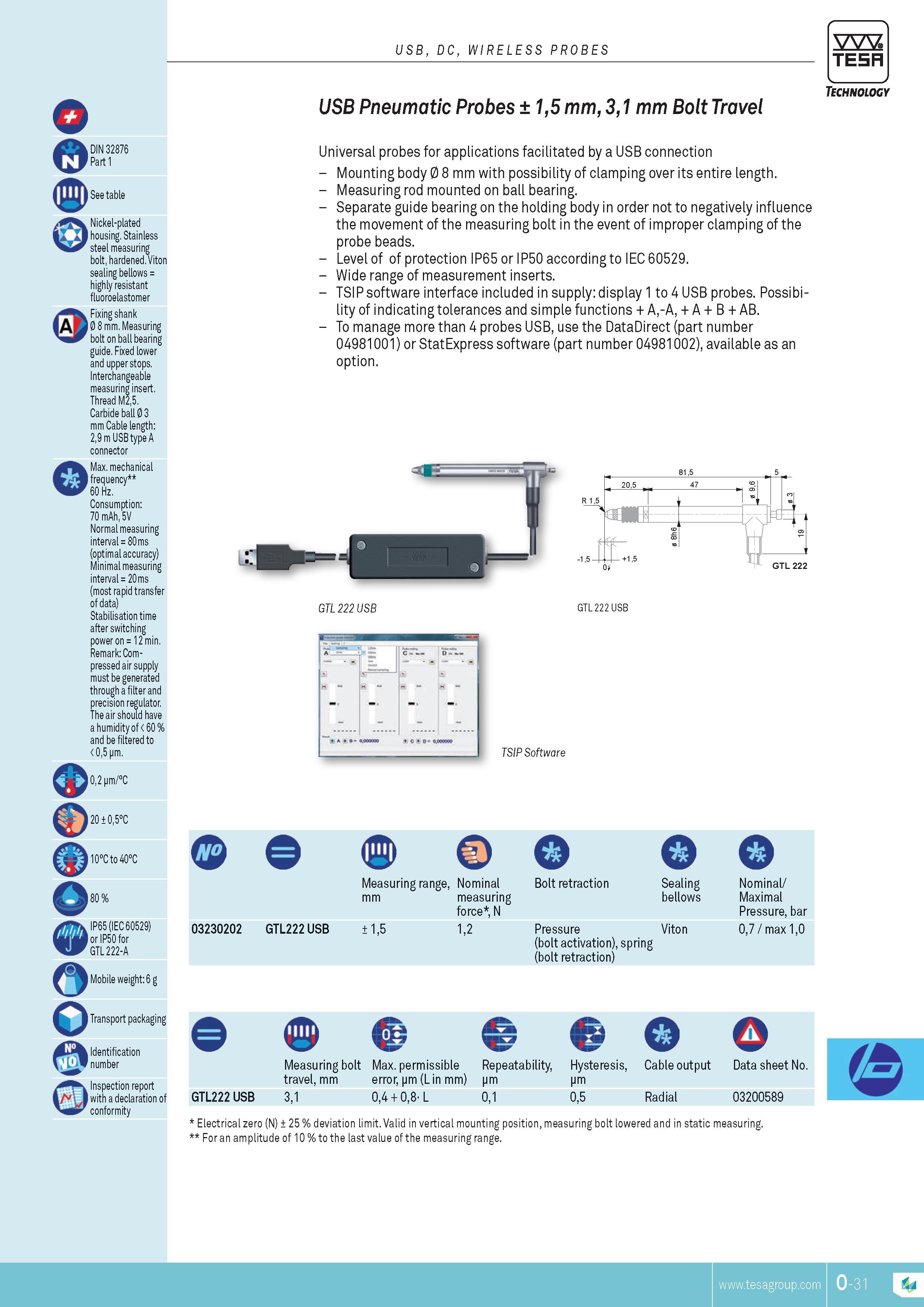

USB DC WIRELESS PROBES TESA DIN 32876 Part 1 See table Nickel-plated housing. Stainless steel measuring bolt hardened. Viton sealing bellows highly resistant fluoroelastomer Fixing shank A 0 8 mm. Measuring bolt on ball bearing guide. Fixed lower and upper stops. Interchangeable measuring insert. Thread M25. Carbide ball 0 3 mm Cable length 29 m USB type A connector Max. mechanical frequency 60 Hz. Consumption 70 mAh 5V Normal measuring interval 80ms (optimal accuracy) Minimal measuring interval 20ms (most rapid transfer IP o m Stabilisation time after switching power on 12 min. Remark Compressed air supply must be generated through a filter and precision regulator. The air should have a humidity of 60 % and be filtered to 05 pm. 02 pm C 20 05C 10C to 40C 80 % IP65 (IEC 60529) orIP50for GTL 222-A Mobile weight 6 g Transport packaging Identification number Inspection report with a declaration of conformity USB pneumatic probes 15 mm 31 mm Bolt Travel Universal probes for applications facilitated by a USB connection Mounting body 0 8 mm with possibility of clamping over its entire length. Measuring rod mounted on ball bearing. Separate guide bearing on the holding body in order not to negatively influence the movement of the measuring bolt in the event of improper clamping of the probe beads. Level of of protection IP65 or IP50 according to IEC 60529. Wide range of MEASUREMENT inserts. TSIP software interface included in supply display 1 to 4 USB probes. Possibility of indicating tolerances and simple functions + A-A + A + B + AB. To manage more than 4 probes USB use the DataDirect (part number 04981001) or StatExpress software (part number 04981002) available as an option. Technology GTL 222 USB GTL 222 USB TSIP Software 03230202 GTL222 USB Measuring range Nominal mm measuring force N 15 12 Bolt retraction Sealing bellows Pressure Viton (bolt activation) spring (bolt retraction) Nominal Maximal Pressure bar 07 max 10 Measuring bolt Max. permissible Repeatability Hysteresis Cable output Data sheet No. travel mm error pm (L in mm) pm pm GTL222 USB 31 04 + 08' L 01 05 Radial 03200589 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. O
