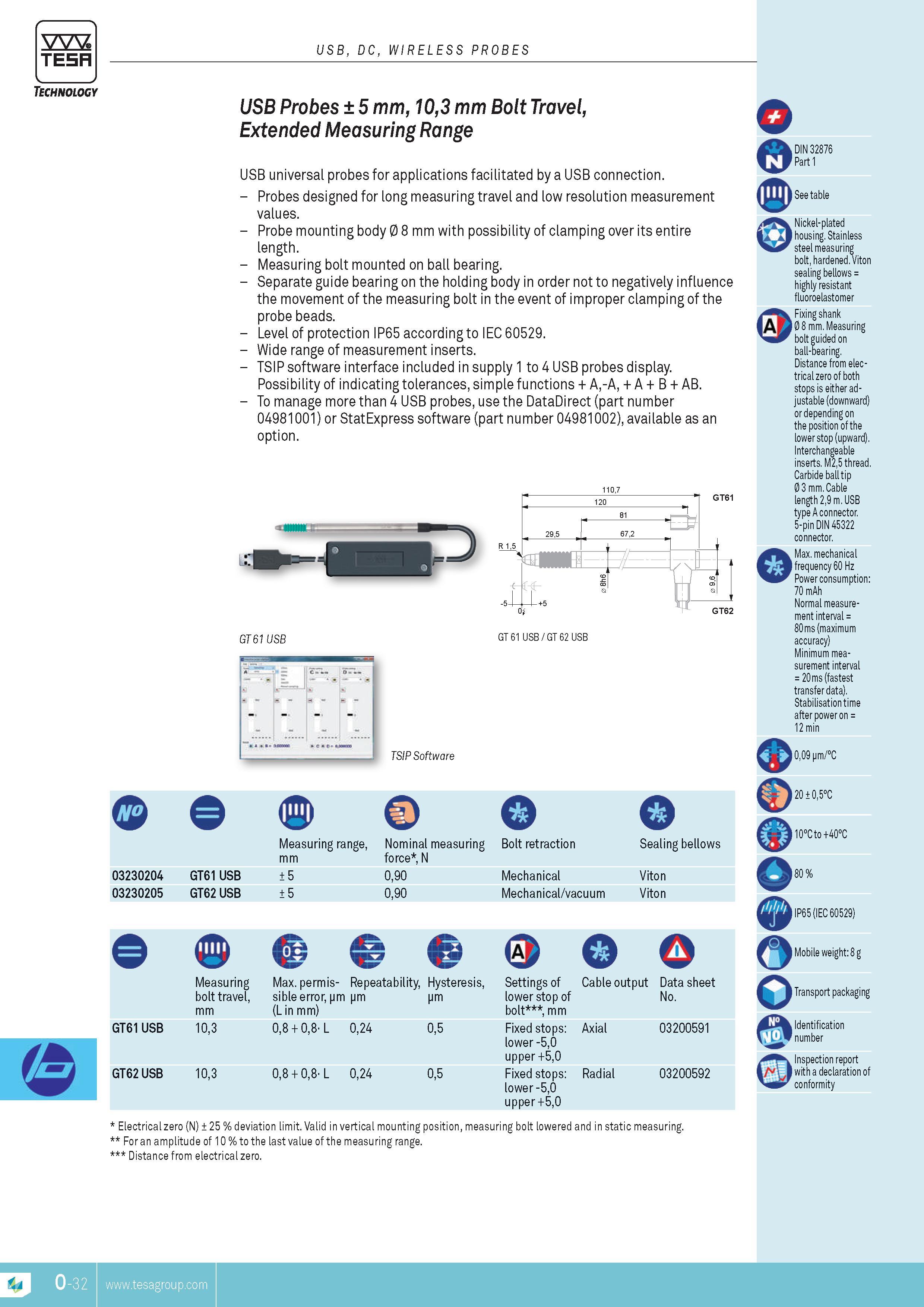

TESA Technology USB DC WIRELESS PROBES uSB probes 5 mm 103 mm Bolt Travel Extended Measuring Range USB universal probes for applications facilitated by a USB connection. Probes designed for long measuring travel and low resolution MEASUREMENT values. Probe mounting body 0 8 mm with possibility of clamping over its entire length. Measuring bolt mounted on ball bearing. Separate guide bearing on the holding body in order not to negatively influence the movement of the measuring bolt in the event of improper clamping of the probe beads. Level of protection IP65 according to IEC 60529. Wide range of MEASUREMENT inserts. TSIP software interface included in supply 1 to 4 USB probes display. Possibility of indicating tolerances simple functions + A-A + A + B + AB. To manage more than 4 USB probes use the DataDirect (part number 04981001) or StatExpress software (part number 04981002) available as an option. GT 61 USB GT 61 USB GT 62 USB 03230204 03230205 GT61 USB GT62USB Measuring range mm 5 5 TSIP Software Nominal measuring force N 090 090 o Bolt retraction Mechanical Mechanical vacuum Sealing bellows Viton Viton GT61 USB GT62 USB Measuring bolt travel mm 103 103 0 Max. permis- Repeatability Hysteresis sible error pm (L in mm) pm pm 08 + 08' L 024 05 08 + 08' L 024 05 o Settings of Cable output lower stop of bolt mm Fixed stops Axial lower -50 upper +50 Fixed stops Radial lower -50 upper +50 Data sheet No. 03200591 03200592 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. DIN 32876 Part 1 See table Nickel-plated housing. Stainless steel measuring bolt hardened. Viton sealing bellows highly resistant fluoroelastomer Fixing shank A 0 8 mm. Measuring bolt guided on ball-bearing. Distance from electrical zero of both stops is either adjustable (downward) or depending on the position of the lower stop (upward). Interchangeable inserts. M25 thread. Carbide ball tip 0 3 mm. Cable length 29 m. USB type A connector. 5-pin DIN 45322 connector. Max. mechanical frequency 60 Hz Power consumption 70 mAh Normal MEASUREMENT interval 80ms (maximum accuracy) Minimum MEASUREMENT interval 20 ms (fastest transfer data). Stabilisation time after power on 12 min F 0 HI o 0 009 pm C 20 05C 10Cto+40C 80 % IP65 (IEC 60529) Mobile weight 8 g Transport packaging Identification number Inspection report with a declaration of conformity Distance from electrical zero. TESA
