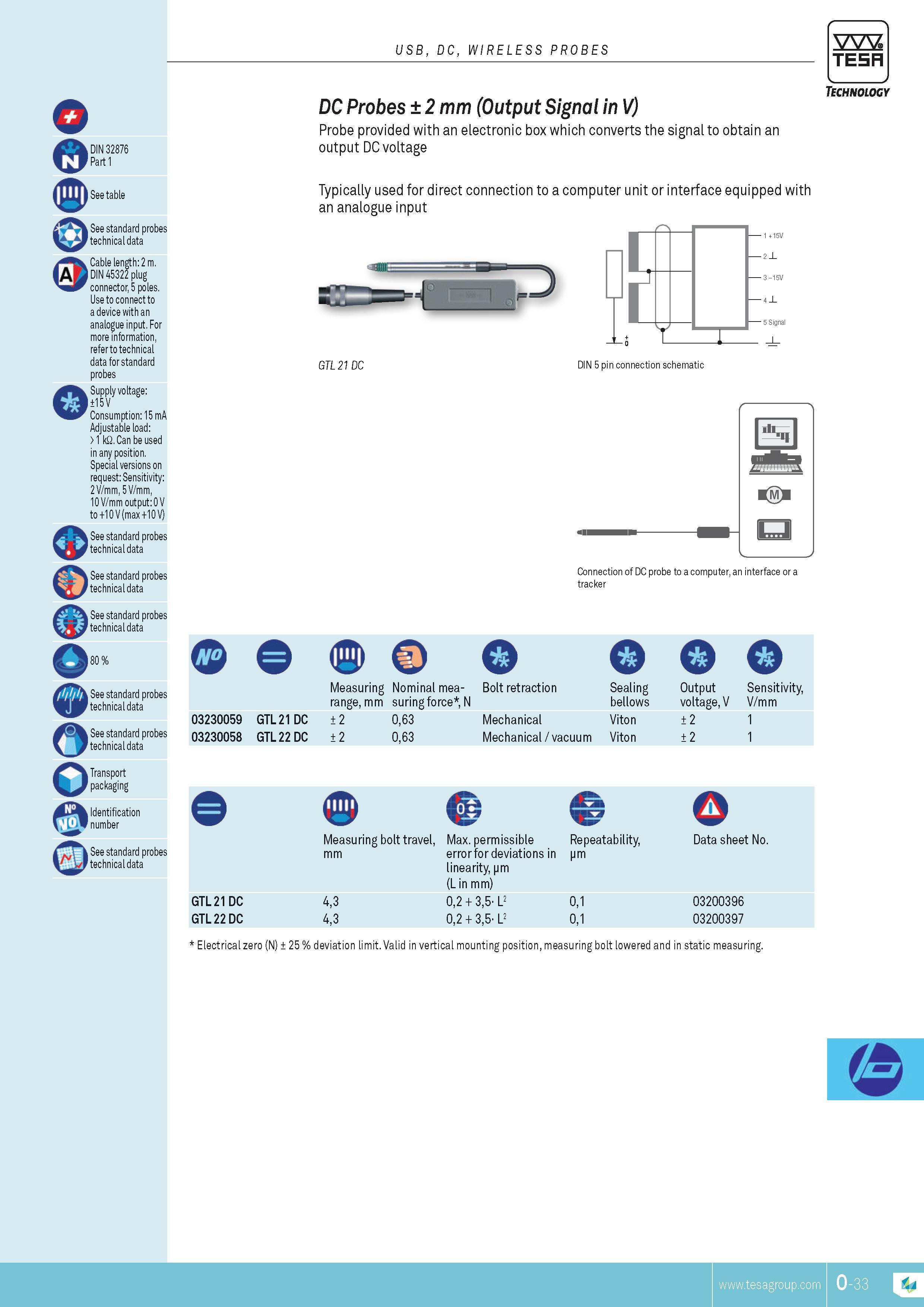

DIN 32876 Part 1 See table See standard probes technical data Cable length 2 m. (Ay DIN 45322 plug connector 5 poles. Use to connect to a device with an analogue input. For more information refer to technical data for standard probes Supply voltage 15 V Consumption 15 mA Adjustable load 1 kQ. Can be used in any position. Special versions on request Sensitivity 2 V mm 5 V mm 10 V mm output 0 V to +10 V (max +10 V) See standard probes technical data IP o m See standard probes technical data See standard probes technical data See standard probes technical data See standard probes technical data Transport Identification number See standard probes technical data USB DC WIRELESS PROBES DC Probes 2 mm (Output Signal in V) Probe provided with an electronic box which converts the signal to obtain an output DC voltage Typically used for direct connection to a computer unit or interface equipped with an analogue input TESA Technology GTL 21 DC DIN 5 pin connection schematic Connection of DC probe to a computer an interface or a tracker Measuring range mm Nominal measuring force N Bolt retraction Sealing bellows Output voltage V Sensitivity V mm 03230059 GTL21 DC 2 063 Mechanical Viton 2 1 03230058 GTL22 DC 2 063 Mechanical vacuum Viton 2 1 GTL21 DC GTL22 DC Measuring bolt travel Max. permissible Repeatability mm error for deviations in pm linearity pm (L in mm) 4.3 02 + 35' L2 01 4.3 02 + 35' L2 01 Data sheet No. 03200396 03200397 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. O
