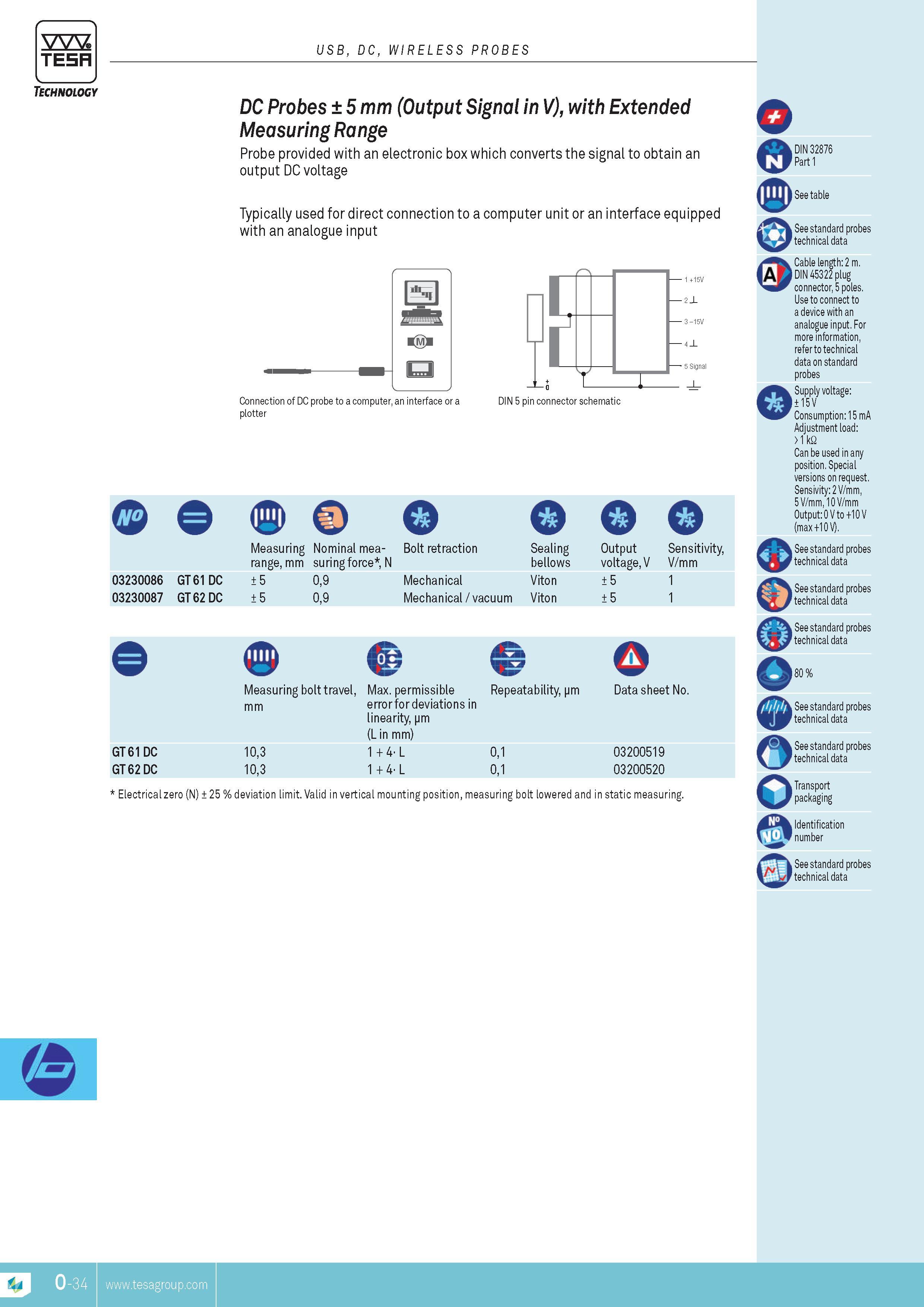

TESA USB DC WIRELESS PROBES Technology Dc probes 5 mm (output Signal in v) with Extended Measuring Range Probe provided with an electronic box which converts the signal to obtain an output DC voltage Typically used for direct connection to a computer unit or an interface equipped with an analogue input . 1 +15V -2j 3 -15V 4L 5 Signal plotter DIN 5 pin connector schematic Q 0 o GT 61 DC GT 62 DC Measuring bolt travel Max. permissible Repeatability pm Data sheet No. mm error for deviations in linearity pm (L in mm) 10.3 1 + 4' L 01 03200519 10.3 1 + 4' L 01 03200520 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. DIN 32876 Part 1 See table Measuring range mm Nominal measuring force N Bolt retraction Sealing bellows Output voltage V Sensitivity V mm 03230086 GT 61 DC 5 09 Mechanical Viton 5 1 03230087 GT 62 DC 5 09 Mechanical vacuum Viton 5 1 See standard probes technical data Cable length 2 m. A JDIN 45322 plug connector 5 poles. Use to connect to a device with an analogue input. For more information refer to technical data on standard probes Supply voltage 15 V Consumption 15 mA Adjustment load 1 kQ Can be used in any position. Special versions on request. Sensivity 2 V mm 5 V mm 10 V mm Output 0 V to +10 V (max +10 V). See standard probes technical data 0 IP e m See standard probes technical data See standard probes technical data See standard probes technical data See standard probes technical data Transport Identification number See standard probes technical data
